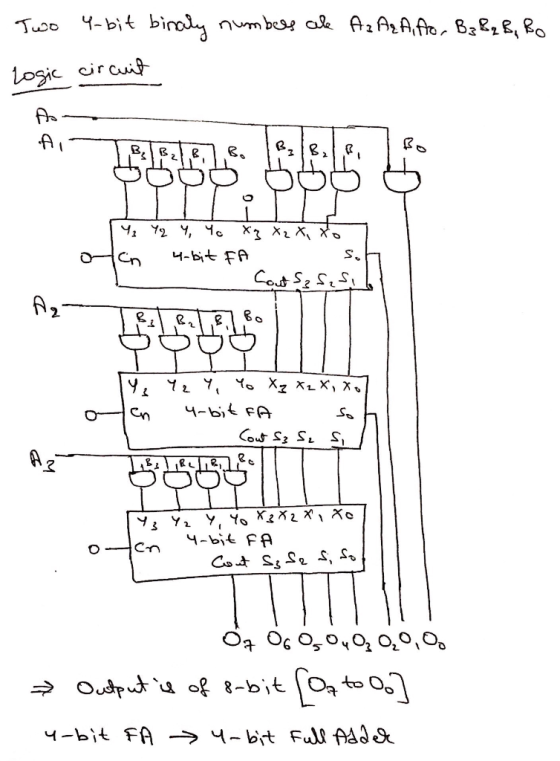

Design a circuit to multiply two four-bit binary numbers (?3?2?1?0 × ?3?2?1?0), using AND gates and binary adders (Half adders and/or full adders).
