A strong electromagnet produces a uniform magnetic field of 1.60 T over a cross-sectional area of...

A strong electromagnet produces a uniform magnetic field of 1.60 T over a cross-sectional area of 0.310 m2. A coil having 190 turns and a total resistance of 22.0 Ω is placed around the electromagnet. The current in the electromagnet is then smoothly reduced until it reaches zero in 20.0 ms. What is the current induced in the coil?

______A

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

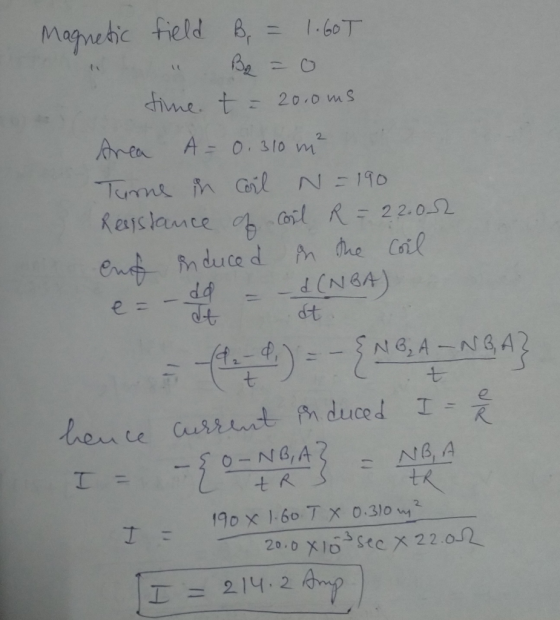

Answer #1

0 0
