If the electric field of a beam of light exceeds the breakdown value for air, the...

If the electric field of a beam of light exceeds the breakdown value for air, the beam does not propagate through the air. The maximum electric field that can propagate through the air is 3.0 x 106 V/m.

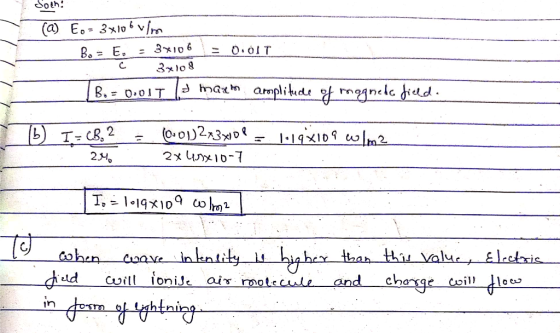

            (a) What is the maximum amplitude of the magnetic field for this light wave. {0.01 T}

  1. Calculate the intensity of this wave. {1.19 x 109 W/m2}
  2. Describe what possibly happens when the wave intensity is higher than this value.
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
