2. A mass m hangs from a massless spring connected to the roof of a box...

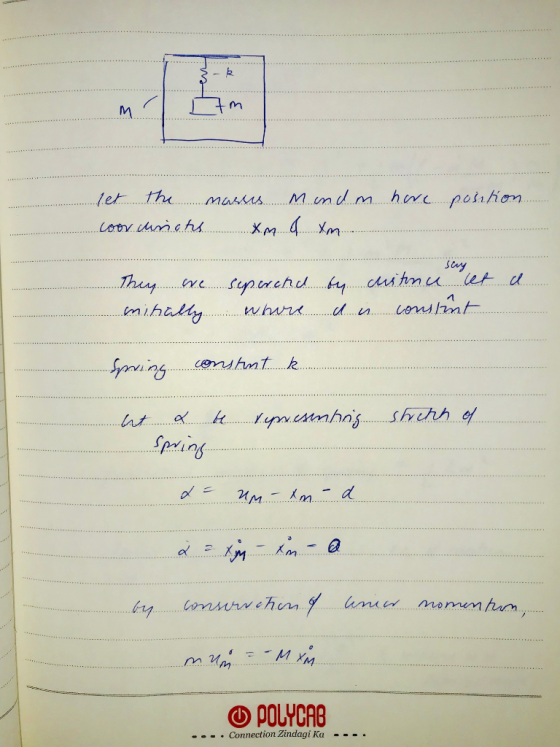

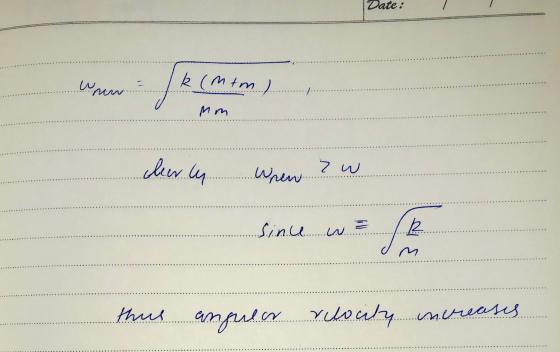

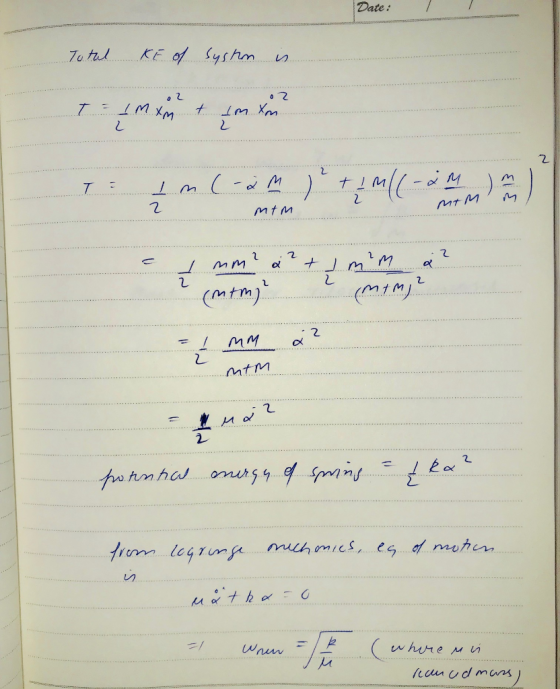

2. A mass m hangs from a massless spring connected to the roof of a box of mass M. When the box is held stationary, the mass-spring system oscillates vertically with angular frequency ω. If the box is dropped falls freely under gravity, how will the angular frequency change?
Homework Answers
Add Answer to:
2. A mass m hangs from a massless spring connected to the roof
of a box...
A massless spring hangs from the ceiling with a small object attached to its lower end....
A massless spring hangs from the ceiling with a small object attached to its lower end. The object is initially held at rest in a position yi such that the spring is at its rest length. The object is then released from yi and oscillates up and down, with its lowest position being 14 cm below yi. (a) What is the frequency of the oscillation? (b) What is the speed of the object when it is 12 cm below the...
 A mass m1 = 4.3 kg rests on a frictionless table and connected by a massless...
 A mass m1 = 4.3 kg rests on a frictionless table and connected by a massless string over a massless pulley to another mass m2 = 3.4 kg which hangs freely from the string. When released, the hanging mass falls a distance d = 0.87 m. 1-How much work is done by gravity on the two block system? 2) How much work is done by the normal force on m1? 3) What is the final speed of the two blocks? 4)...
Chapter 15, Problem 037 A massless spring hangs from the ceiling with a small object attached...
Chapter 15, Problem 037 A massless spring hangs from the ceiling with a small object attached to its lower end. The object is initially held at rest in a position y; such that the spring is at its rest length. The object is then released from y; and oscillates up and down, with its lowest position being 14 cm below y: (a) What is the frequency of the oscillation? (b) What is the speed of the object when it is...
do not solve using shm 8) A 4.00-kg mass hangs vertically from a massless spring. The...
do not solve using shm
8) A 4.00-kg mass hangs vertically from a massless spring. The spring constant of the spring is 100 N/m. The mass is pulled downward 0.02 meters and then released from rest. What is the speed of the mass when it is 0.01 meter above the point from which it was released? X B) 0.0443 m/s A) 0.0866 m/s C) 0.0201 m/s D) 0.0744 m/s E) The mass will not reach the height specified.
A mass m1 = 3.4 kg rests on a frictionless table and connected by a massless...
A mass m1 = 3.4 kg rests on a frictionless table and connected by a massless string over a massless pulley to another mass m2 = 4.7 kg which hangs freely from the string. When released, the hanging mass falls a distance d = 0.7 m. How much work is done by the normal force on m1? What is the final speed of the two blocks? What is the tension in the string as the block falls? The work done...
A spring with spring constant k is suspended from the ceiling. A block of mass M...
A spring with spring constant k is suspended from the ceiling. A block of mass M hangs from the spring. A bullet of mass m is fired vertically upward into the bottom of the block, get embedded in it, and the spring's maximum compression d is measured. The block and bullet system then oscillates. Find an expression for the bullet's speed vB in terms of m, M, k and d. Find the frequency ? of the oscillation. Find the...
A spring hangs vertically from a fixed support. A mass is then attached to the lower...
A spring hangs vertically from a fixed support. A mass is then attached to the lower end of the spring. When this system undergoes simple harmonic motion, it has a period of 0.36 s. By how much is the spring stretched from its initial length when the mass and spring are hanging motionless? m=?
Problem 2. A massless string of length L passes through horizontal table. A hole in a a end of the string mo ves fricti...
Problem 2. A massless string of length L passes through horizontal table. A hole in a a end of the string mo ves frictionlessly point pass M at one on the table (i.e. with two degrees of freedom), and another point mass m hangs vertically from the other end. The system is in a uniform gravitational field with acceleration g. M m (a) Write the Lagrangian for the system. [13 points (b) Suppose the mass M on the table initially...
4. Two objects of masses m/ and m2 are connected by a massless spring as shown...
4. Two objects of masses m/ and m2 are connected by a massless spring as shown in the figure below. The spring has a natural length of L and a stiffness of k. Owo a. If x is the extension of the spring by the horizontal motion of the masses, use Newton's second law to determine the equations of motion for each object. b. Combine these equations to show that the system oscillates at a frequency of - mįm2 w2...
A massless spring is hanging vertically from the ceiling. A mass m is attached to the...
A massless spring is hanging vertically from the ceiling. A mass m is attached to the bottom end of the spring and released from rest. How close to its final resting position is the mass when βt = 1 given that the mass finally comes to rest a distance d below the point from which it was released and the oscillator is critically damped.
Chapter 15, Problem 037 A massless spring hangs from the ceiling with a small object attached to its lower end. The object is initially held at rest in a position y; such that the spring is at its rest length. The object is then released from y; and oscillates up and down, with its lowest position being 14 cm below y: (a) What is the frequency of the oscillation? (b) What is the speed of the object when it is...
do not solve using shm
8) A 4.00-kg mass hangs vertically from a massless spring. The spring constant of the spring is 100 N/m. The mass is pulled downward 0.02 meters and then released from rest. What is the speed of the mass when it is 0.01 meter above the point from which it was released? X B) 0.0443 m/s A) 0.0866 m/s C) 0.0201 m/s D) 0.0744 m/s E) The mass will not reach the height specified.
Problem 2. A massless string of length L passes through horizontal table. A hole in a a end of the string mo ves frictionlessly point pass M at one on the table (i.e. with two degrees of freedom), and another point mass m hangs vertically from the other end. The system is in a uniform gravitational field with acceleration g. M m (a) Write the Lagrangian for the system. [13 points (b) Suppose the mass M on the table initially...
4. Two objects of masses m/ and m2 are connected by a massless spring as shown in the figure below. The spring has a natural length of L and a stiffness of k. Owo a. If x is the extension of the spring by the horizontal motion of the masses, use Newton's second law to determine the equations of motion for each object. b. Combine these equations to show that the system oscillates at a frequency of - mįm2 w2...
