An AM signal is being produced with the following characteristics:                   fc = 560 kHz, Ec =...

An AM signal is being produced with the following characteristics:

                  fc = 560 kHz, Ec = 1000 V, fm = 3 kHz, Em = 300 V. Calculate the following and show your work:

  1. fusb[Upper Sideband Frequency]
  2. flsb [Upper Sideband Frequency]
  3. m [Modulation Index]
  4. %m [Percentage of Modulation]
  5. Eusb [Upper Sideband Voltage]
  6. Elsb [Lower Sideband voltage]
  7. Bandwidth [BW]
engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

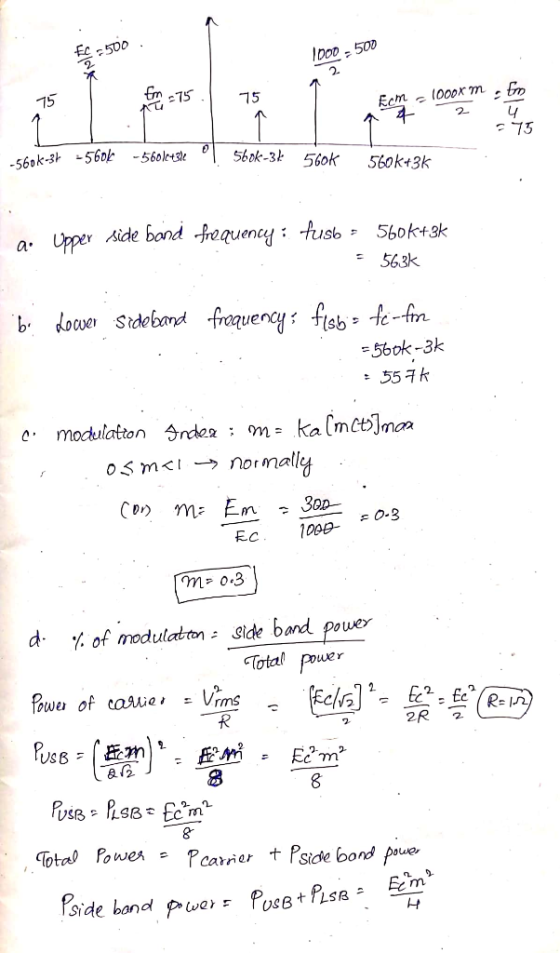

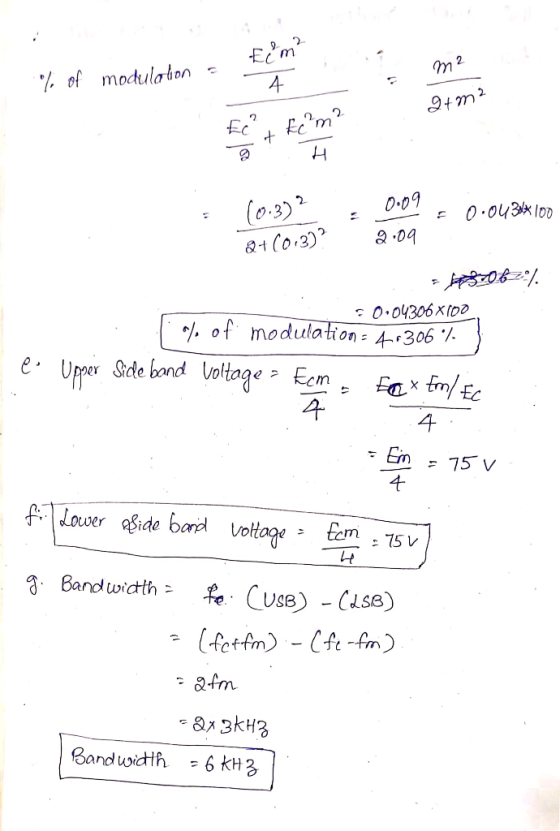

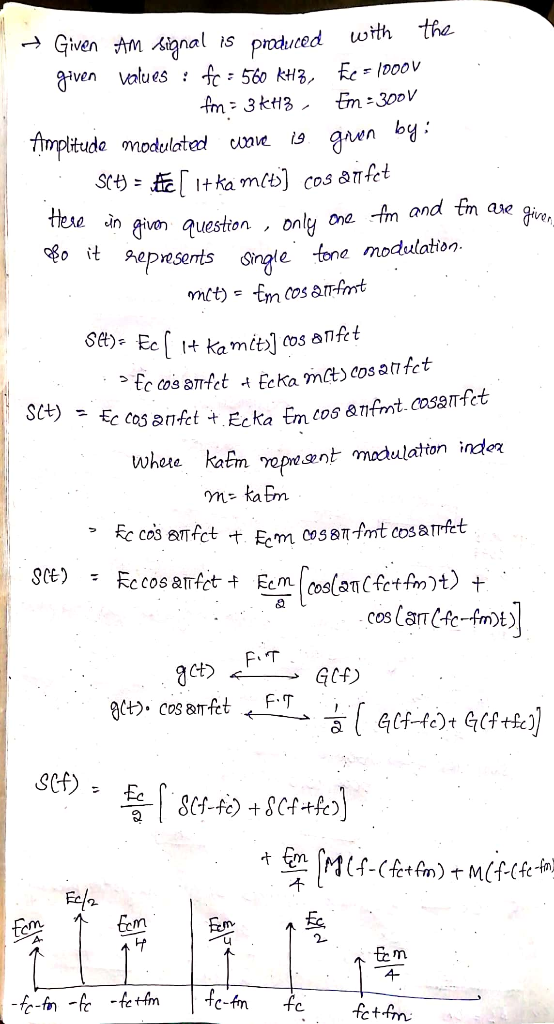

Answer #1

0 0
Add a comment
