Show the gate circuit and truth table to illustrate f=(X and Y) OR (X and NOT...

Question

Question

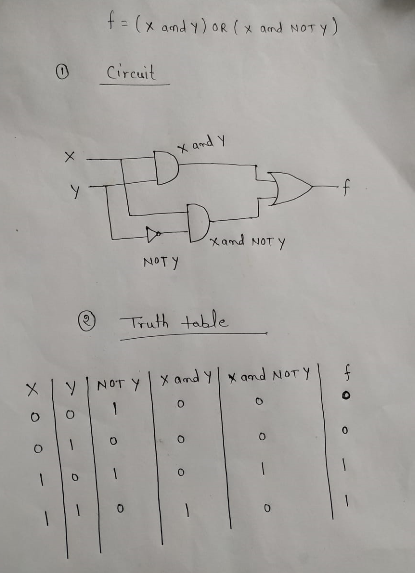

Show the gate circuit and truth table to illustrate f=(X and Y) OR (X and NOT Y)

engineering Computer-Science

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

Boolean Logic A. Show the truth table for this expression: X AND (Y XOR X) B....

Boolean Logic A. Show the truth table for this expression: X AND (Y XOR X) B. Show the truth table for this expression: Y OR (Y AND NOT X) C. Show the truth table for this expression: X NOR (Y NAND X) D. Draw a digital logic circuit for the expression used in 3A. E. Draw a digital logic circuit for the expression used in 3B. F. Draw a digital logic circuit for the expression used in 3C.
3. f[x,y,z] = minterms [0,1,5,6] a. show on a Venn Diagram b. show on a truth...

3. f[x,y,z] = minterms [0,1,5,6] a. show on a Venn Diagram b. show on a truth table c. draw a circuit for it
Given the following truth table, where X, Y, and Z are input and W is output,...

Given the following truth table, where X, Y, and Z are input and W is output, write the canonical expression and generate gate-level logical circuit (draw the wire diagram). Given the following truth table, where X, Y, and Z are input and W is output, write the canonical expression and generate gate-level logical circuit (draw the wire diagram). 0 01 0 0 100O 0 110 (0

d) Let F(x, y)-xy'+x'y. a) 2. Construct a truth table for F. ND, OR, and NOT...

d) Let F(x, y)-xy'+x'y. a) 2. Construct a truth table for F. ND, OR, and NOT gates. b) Design a circuit with inputs x and y to implement F(x, y) using only AND, OR c) Use DeMorgan's law to find the complement of F, ie, find F'(x, y). d) Show that F'(x,x)-1.
Build the truth table for half-adder and show one implementation using gates. Build a NOT gate...

Build the truth table for half-adder and show one implementation using gates. Build a NOT gate from NOR gate. Build a NOT gate from NAND gate. Algebraic equation for XOR gate is A B bar + A bar B. Show that the algebraic equation for XNOR gate AB + A bar B bar. Draw a circuit for a 2-to-4 line decoder. 2-to-1 line multiplexer equation is given by Y = S bar I_0 + SI_1 Show an implementation of this...
Given the function F(x,y) = y'+(x+y) : a) Make a truth table for F. [4 marks]...

Given the function F(x,y) = y'+(x+y) : a) Make a truth table for F. [4 marks] b) Express F as a sum of products. [3 marks] c) Simplify F, either algebraically or by an explanation based upon the truth table. [3 marks]

7) Construct the truth table for the function F(X,Y,Z) = Y’Z+ X Z’ 8) Draw the...

7) Construct the truth table for the function F(X,Y,Z) = Y’Z+ X Z’ 8) Draw the logic circuit for the function F(X,Y,Z) = Y’Z+ X Z’
(1)Try to use NAND gates to achieve the truth table function of an XOR gate (2)...

(1)Try to use NAND gates to achieve the truth table function of an XOR gate (2) Try to design a clicker for three people, it just needs two people to agree to pass. A,B,C indicate the people, 0 means don't agree, 1 means agree. If it passes the result is 1. Please write the truth table, the SOP (sum of products) equation and draw the logic circuit for it. (3)Use a Karnaugh-map to simplify the following Boolean function: F= AB'C'+A'B'C'+AB'C+A'B'C+AB...
PROBLEM #04.1 For the circuit below, generate an output expression F. Make sure to show all...

PROBLEM #04.1 For the circuit below, generate an output expression F. Make sure to show all work (including the output expression at each gate) PROBLEM #04.2 For the circuit in the previous problem, generate a truth table. Include additional columns for the output of each gate

Construct a truth table then simplify the following functional expressions: a) F(x,y,z) = xyz + x(yz)'...

Construct a truth table then simplify the following functional expressions: a) F(x,y,z) = xyz + x(yz)' + x'(y+z) + (xyz)' b) F(x,y,z) = y(x'z + xz') + x(yz + yz')
