The Reynolds Number is 4525 in a 10 mm diameter human artery. The density and viscosity...

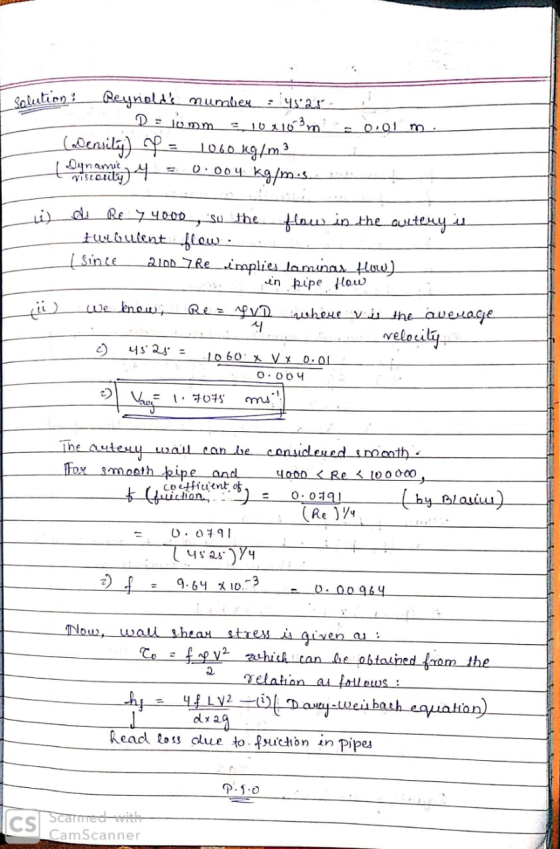

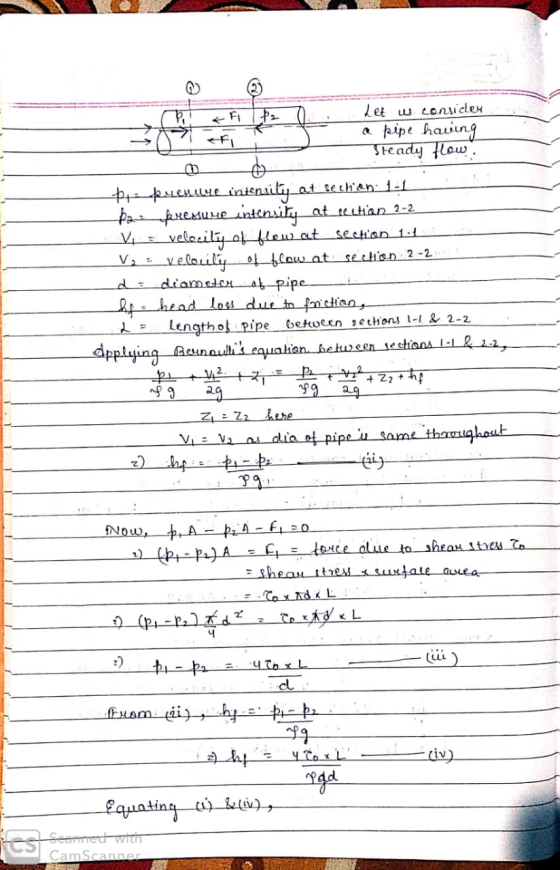

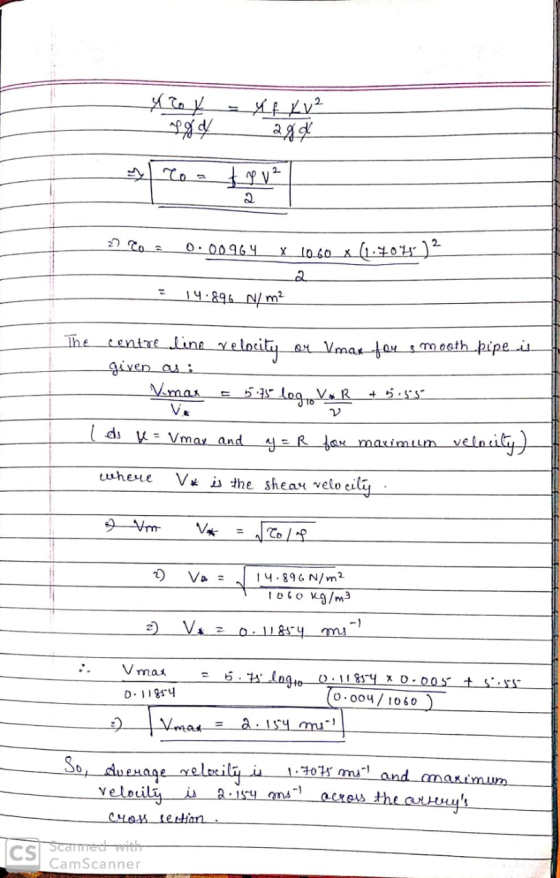

The Reynolds Number is 4525 in a 10 mm diameter human artery. The density and viscosity of blood are approximately 1060 kg/m3 and 0.004 Kg/(m.s), respectively.

a. Is the flow in the artery laminar or turbulent?

b. Calculate the average velocity and the maximum velocity across the artery’s cross section.

engineering   Chemical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
The Reynolds Number is 4525 in a 10 mm diameter human artery. The density and viscosity...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Below are typical values for blood flow through a coronary artery. Note that viscosity of the...

    Below are typical values for blood flow through a coronary artery. Note that viscosity of the blood is not neglected. Density of blood, ρ = 1060 kg/m3 Viscosity of blood, ν = 0.004 Pa x s Flow rate, Q = 0.8 mL/s Length of artery, L = 3.5 cm Radius of artery, r = 0.2 cm For the same pressure drop, calculate the flow rate if the radius of the artery reduces by 30% its original value due to blockage?

  • 1. What is the Reynolds number of a bacterium of diameter 1.2 micrometers, swimming at 17...

    1. What is the Reynolds number of a bacterium of diameter 1.2 micrometers, swimming at 17 micrometers per second? Water has viscosity 8.9x 10PaS and density 1000 kg/m'. Is it laminar, transitional or turbulent? (4 points)

  • 3. A Newtonian fluid with a dynamic or absolute viscosity of 0.38 Ns/m” and a Density...

    3. A Newtonian fluid with a dynamic or absolute viscosity of 0.38 Ns/m” and a Density of 910 kg/m flows through a 25 mm diameter pipe with a velocity of 2.6 m/s. Find out Reynolds number of the fluid. Is the fluid flow lamina, transient, or turbulent?

  • Calculate the Reynolds number, Re = (2rρv)/ η , for the following situations and decide whether...

    Calculate the Reynolds number, Re = (2rρv)/ η , for the following situations and decide whether the flow of fluid around them is laminar or turbulent. Then calculate the frag force using the appropriate formula. For the radius, use r = 2(Area/perimeter) which, for a circle, gives the radius. Densities and viscosities are in the table on page 2. Also, to keep things uniform, we will use the boundaries for laminar and turbulent flow from Engineer's Toolbox, also on pg....

  • The density of water is p = 1000 kg and the viscosity is u = 2...

    The density of water is p = 1000 kg and the viscosity is u = 2 kg. Consider diameter of pipe is lm and the velocity of the flow is 1m/s. Compute the Reynolds number. m3 Compute the friction factor, if Reynolds number in pipe flow is 1000.

  • Water flows from left reservoir to right reservoir in a 5 cm diameter pipe system as...

    Water flows from left reservoir to right reservoir in a 5 cm diameter pipe system as shown in the figure. The pipe is made out oftast iron which has a sand roughness of 0.26 mm. Discharge in the pipe system is given as 0.006 m3/s. Dynamic viscosity of water is 1.3 x 103 kg/m.s. Density of water is 1000 kg/m3 Flow in the pipe is ? water 9 m 17 4 m 80 m Laminar Turbulent Transition None of the...

  • Sulphuric acid is flowing through a 2.5 inch diameter and 50ft long pipe with a velocity...

    Sulphuric acid is flowing through a 2.5 inch diameter and 50ft long pipe with a velocity of 0.006 m3 /s. The sulphuric acid has a viscosity of 25 mN.s/m2 and density of 1680 kg/m3 while the roughness of the pipe surface is 1.3 mm. If the operating temperature is 290K, determine fluid flow (examples turbulent, laminar or others).

  • Calculate the Reynolds number, Re- (2rpv)/ n, for the following situations and decide whether the flow...

    Calculate the Reynolds number, Re- (2rpv)/ n, for the following situations and decide whether the flow of fluid around them is laminar or turbulent. Then calculate the frag force using the appropriate formula. For the radius, use r 2(Area/perimeter) which, for a circle, gives the radius. Densities and viscosities are in the table on page 2. Also, to keep things uniform, we will use the boundaries for laminar and turbulent flow from Engineer's Toolbox, also on pg. 2 [1] A...

  • The Reynolds Number, Re, is of great importance in Chemical Engineering. This dimensionless quantity is used...

    The Reynolds Number, Re, is of great importance in Chemical Engineering. This dimensionless quantity is used to describe fluid flow patterns. If Re is over 2,100 the flow regime is considered turbulent and below 2,100 the flow regime is laminar. Re is defined as the ratio of inertial forces to viscous forces. And is represented mathematically as: ?? = ??? ? , where D is the pipe diameter (length), u is the fluid velocity (length/time), ? is the fluid density...

  • Sulphuric acid is flowing through a pipe (2.5 inch diameter, 50 ft length) in a velocity...

    Sulphuric acid is flowing through a pipe (2.5 inch diameter, 50 ft length) in a velocity of 0.006 m3 /s. The sulphuric acid has a viscosity of 25 mN.s/m2 and density of 1680 kg/m3 while the roughness of the pipe surface is 1.3 mm. If the operating temperature is 290K, determine fluid flow (i.e. laminar, turbulent or others). (Given that 1 m = 39.37 inch).
