Three forces act on a 15-kg object. Force 1 is 12 N directed along the positive...
Three forces act on a 15-kg object. Force 1 is 12 N directed along the positive x-axis. Force 2 is 18 N directed along the -y-axis. And Force 3 is 22 N directed exactly midway between the +x=axis and -y-axis.
a) Draw a free body diagram clearly labeling the forces.
b) Find the net force on the object in both unit vector and polar notation.
c) Draw this force on your diagram.
do we include the force of gravity in the solution?

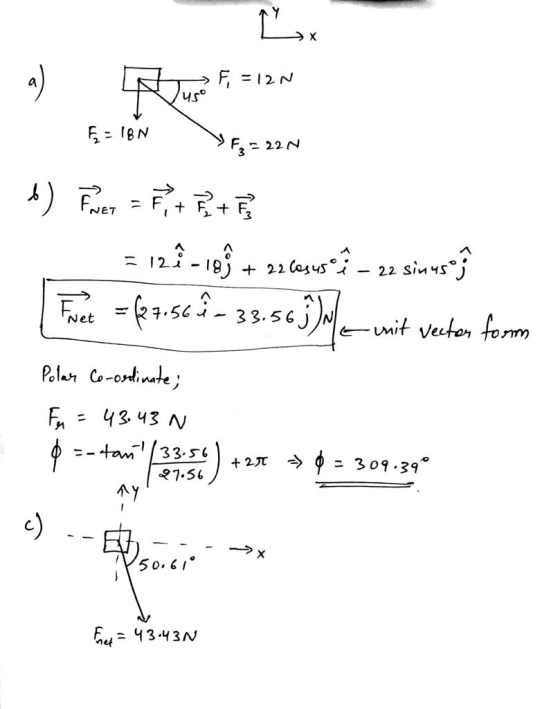

Homework Answers
We are not including gravity
as we don't know if one of these forces is gravitational force or
not.
