There are two restrictions on the type of grammars that can be used with a recursive...

There are two restrictions on the type of grammars that can be used with a recursive descent parser. The first is that the grammar cannot have any left recursive productions. Give an example of a left recursive production and explain why such productions would be a problem.

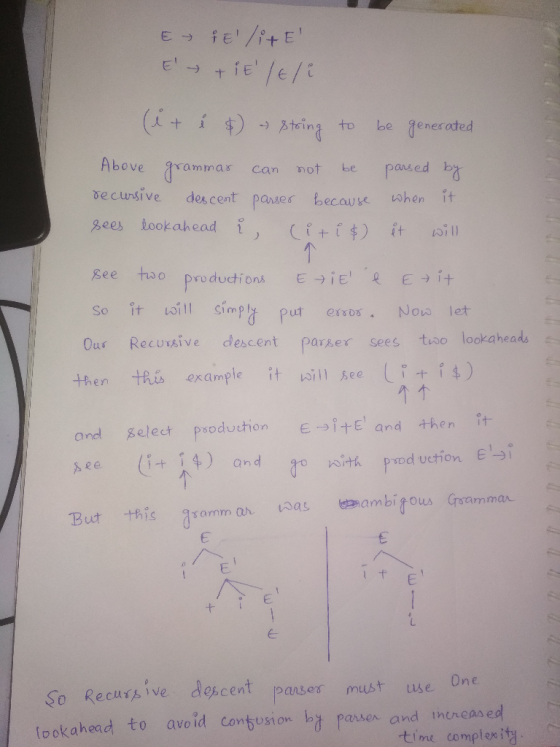

The second restriction is that the grammar must not require more than one token look ahead. Give an example of a production that does not have this property. Explain why this restriction is necessary for recursive descent parsing.

engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

Recursive descent parser is top down parser means it expands from start symbol to whole program.

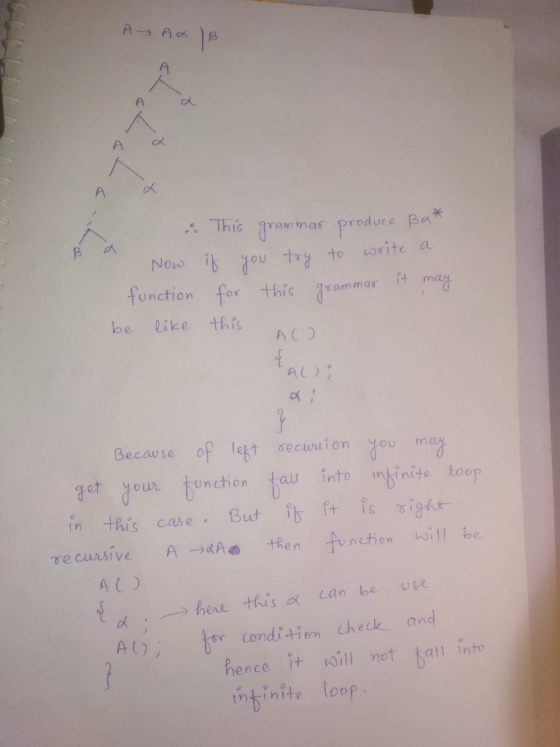

A grammar is left recursive if it contains a production for a non terminal X like X-> Xa . Top down parsing methods can not handle left recursive grammars .

0 0
