ble slit separated by 0.0584 mm is placed 1.55 m from a screen. (a) If yellow...

ble slit separated by 0.0584 mm is placed 1.55 m from a screen. (a) If yellow light of wavelength 585 nm strikes the double slit, what is the separation between the zeroth-order and first-order maxima on the screen? cm (b) If blue light of wavelength 414 nm strikes the double slit, what is the separation between the second-order and fourth-order maxima?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

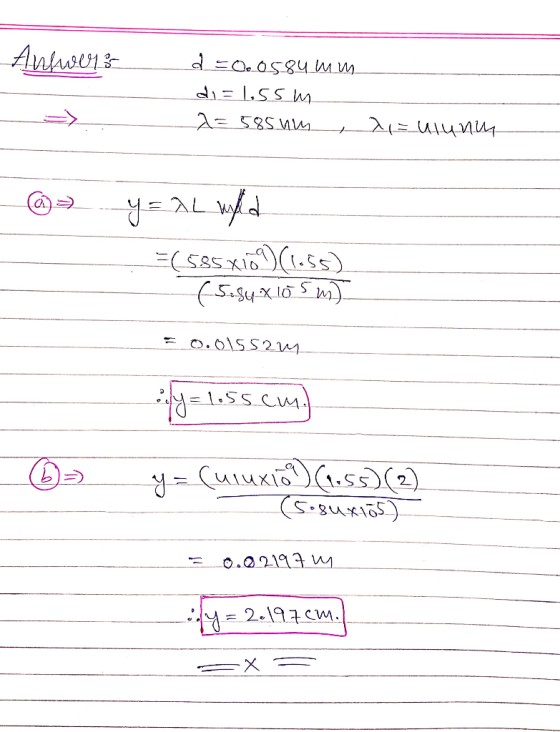

Answer #1

This may helps you.

Thank you .!?

0 0
Add a comment
Know the answer?
Add Answer to:
ble slit separated by 0.0584 mm is placed 1.55 m from a screen. (a) If yellow...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A double slit with a spacing of 0.054 mm between the slits is 1.57 m from...

    A double slit with a spacing of 0.054 mm between the slits is 1.57 m from a screen. 1.) If yellow light of wavelength 567 nm strikes the double slit, what is the separation between the zeroth- and first-order maxima on the screen? (Answer in meters) 2.) If blue light of wavelength 426 nm strikes the double slit, what is the separation between the second- and fourth-order maxima? (Answer in meters)

  • A screen is separated from a double-slit source by a distance L. When light of wavelength...

    A screen is separated from a double-slit source by a distance L. When light of wavelength 563 nm is incident on the double slit, the separation distance between adjacent bright fringes on the screen is 0.0370 mm. When instead, 500 nm light is used, what is the separation distance (in mm) between adjacent bright fringes?

  • An experiment is set-up with a monochromatic light source, a double slit, and a screen, similar...

    An experiment is set-up with a monochromatic light source, a double slit, and a screen, similar to what is shown on page 7-2 of your lab manual. The experimenter measures and sketches the intensity pattern shown below. The scale along the bottom of the figure is in centimeters. What is the distance 2x3 between the third maxima in the intensity pattern? Note: the central peak is the ?zeroth maximum?, the two peaks closest to this on either side are the...

  • 4. In an interference experiment, yellow light of wavelength 585 nm illuminates a double slit. If...

    4. In an interference experiment, yellow light of wavelength 585 nm illuminates a double slit. If the screen is 1.25 m away and the distance between the central max and the ninth-order dark spot is 3.0 cm, find the slit separation. 7. Red light of wavelength 650 nm is incident on a diffraction grating with 2000 lines/cm. Find the order number of the nodal line occurring at 11.25 degrees.

  • Topic: Interference Thanks in advance! 4-10. Two slits separated by 1.2 mm are placed 1.40 m...

    Topic: Interference Thanks in advance! 4-10. Two slits separated by 1.2 mm are placed 1.40 m from a screen. Light of wavelength 480 nm and 640 nm is incident on the slits. What is the separation distance on the screen of intensity maxima of the second order?

  • Consider double slit experiment with two slits are separated by d=0,715 mm

    Consider double slit experiment with two slits are separated by d=0.715 mm and each slit width is 0.00321 mm. Screen is placed L=1.28 m away from the slits. a) Derive an algebraic equation to find linear distance of interference bright fringe on the screen from central bright (central maxima) fringe?  b) Consider interference pattern due to light of unknown wavelength and linear separation between 2 and 5" bright fringes is 3.05 mm. Find the wavelength of the light? c) Now consider double slit...

  • In a Young's double slit experiment a screen is placed 85.0 cm from two slits that...

    In a Young's double slit experiment a screen is placed 85.0 cm from two slits that have a spacing of 0.300 mm. The slits are illuminated with coherent light with a wavelength of 540 nm. (a) What is the distance between the first and third-order dark fringes? (b) What is the distance between the first-order bright fringe and the second order dark fringe?

  • 2. light passing through the slits is 654 nm and the distance to the screen is...

    2. light passing through the slits is 654 nm and the distance to the screen is 3.25 m In a double slit arrangement, the slits are separated by 6.78 mm, the wavelength of hat is the angular separation between the third and fourth maxima? (a) W (b) What is the linear distance on the screen between the third and fourth maxinma index of refraction 1.65 is used as a the thickness of the

  • (25) A screen is separated from a double slit source by 1.2 m. The distance between...

    (25) A screen is separated from a double slit source by 1.2 m. The distance between the two slits is 0.03 mm. The second order (m=2) bright fringe is measured to be 4.5 cm from the center line. (a)   Determine the wavelength of the light. (b)   What is the color of this light? (c)   Calculate the energy carried by a photon of this light.

  • A screen is placed 49.0 cm from a single slit, which is illuminated with light of...

    A screen is placed 49.0 cm from a single slit, which is illuminated with light of wavelength 684 nm. If the distance between the first and third minima in the diffraction pattern is 2.80 mm, what is the width of the slit? A screen is placed 49.0 cm from a single slit, which is illuminated with light of wavelength 684 nm. If the distance between the first and third minima in the diffraction pattern is 2.80 mm, what is the...
