Homework Answers
Add Answer to:
Topic: Interference
Thanks in advance!

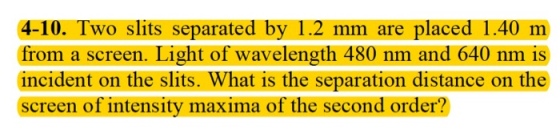

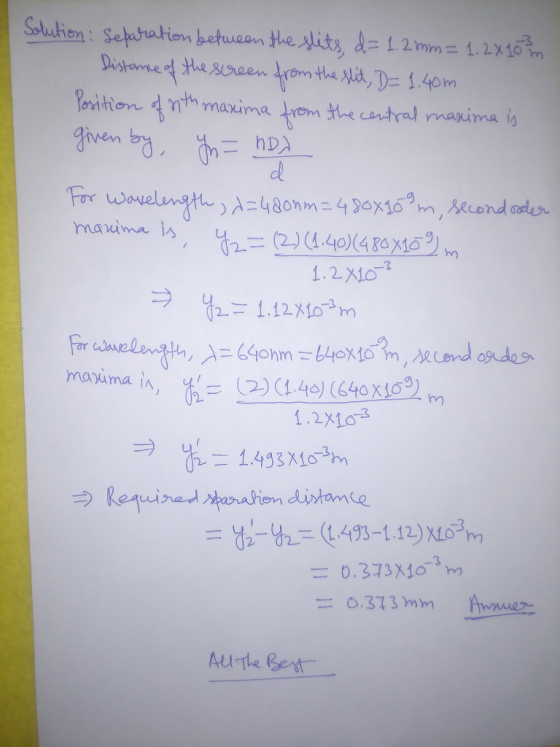

4-10. Two slits separated by 1.2 mm are placed 1.40 m...
Two slit interference: Two slits separated by 4 μm are illuminated by light of wavelength λ=500...
Two slit interference: Two slits separated by 4 μm are illuminated by light of wavelength λ=500 nm incident normally on the slit. (a) Draw a diagram showing the waves leaving the slit that will eventually converge on a distant point at the second (m=2) interference maximum above the central maximum. (b) Calculate the angle of light at which this maximum is formed. (c) What is the distance between interference maxima on a screen placed 2 m from the slits? d)...
Two narrow slits are separated by a distance d. Their interference pattern is to be observed...
Two narrow slits are separated by a distance d. Their interference pattern is to be observed on a screen a large distance L away. Calculate the spacing y of the maxima of the screen for light of wavelength 500 nm when L = 1 m and d = 1 cm. Would you expect to observe the interference of light on the screen for this situation? Explain. How close together should the slits be placed for the maxima to be separated...
Light is incident on two slits that are separated by 0.55 mm. A two-slit interference pattern...
Light is incident on two slits that are separated by 0.55 mm. A two-slit interference pattern is created on a screen that is 1.2 m away. The 1st order maximum occurs 0.45 cm away from the 0th order maximum. What is the angle (in degrees) for the 1st order maximum? Draw a picture of this situation BEFORE you try to solve the problem. Pay attention to your UNITS! What is the wavelength (in nm) of the light? (Two slit interference...
1. Light of wavelength 640 nm is incident on two slits separated by 0.880 mm. An...
1. Light of wavelength 640 nm is incident on two slits separated by 0.880 mm. An interference pattern is observed on a screen 2.20 m away. a) Using the small angle approximation (tan θ sinθ), find the distance between the central maximum and the first bright fringe. b) What percent of error is made in locating of the seventh-order bright fringe if the small angle approximation is used compared to using the exact trigonometric function? c) How does the...
Green light of wavelength 540 nm is incident on two slits that are separated by 0.50...
Green light of wavelength 540 nm is incident on two slits that are separated by 0.50 mm. 1) Determine the angles of the first two maxima of the interference pattern (not including the central band). 2) What can you change (keeping the other parameters constant) in order to double the distance between the 0th order and the first order maximum on the screen? (CHOOSE ALL THAT APPLY) A) Double the wavelength B) Reduce by one-half the separation between the screen...
A laser beam is incident on two slits with a separation of 0.195 mm, and a...
A laser beam is incident on two slits with a separation of 0.195 mm, and a screen is placed 5.15 m from the slits. If the bright interference fringes on the screen are separated by 1.60 cm, what is the wavelength of the laser light? nm
A laser beam is incident on two slits with a separation of 0.230 mm, and a...
A laser beam is incident on two slits with a separation of 0.230 mm, and a screen is placed 4.90 m from the slits. If the bright interference fringes on the screen are separated by 1.55 cm, what is the wavelength of the laser light? nm
A laser beam is incident on two slits with a separation of 0.180 mm, and a...
A laser beam is incident on two slits with a separation of 0.180 mm, and a screen is placed 4.90 m from the slits. If the bright interference fringes on the screen are separated by 1.57 cm, what is the wavelength of the laser light? nm
A laser beam is incident on two slits with a separation of 0.215 mm, and a...
A laser beam is incident on two slits with a separation of 0.215 mm, and a screen is placed 4.95 m from the slits. If the bright interference fringes on the screen are separated by 1.55 cm, what is the wavelength of the laser light? ___ nm
Two slits separated by a distance of d = 0.175 mm are located at a distance...
Two slits separated by a distance of d = 0.175 mm are located at a distance of D = 2.01 m from a screen. The screen is oriented parallel to the plane of the slits. The slits are illuminated by a monochromatic and coherent light source with a wavelength of λ = 604 nm. A wave from each slit propagates to the screen. The interference pattern shows a peak at the center of the screen (m=0) and then alternating minima...
A laser beam is incident on two slits with a separation of 0.230 mm, and a screen is placed 4.90 m from the slits. If the bright interference fringes on the screen are separated by 1.55 cm, what is the wavelength of the laser light? nm
