Light is incident on two slits that are separated by 0.55 mm. A two-slit interference pattern...

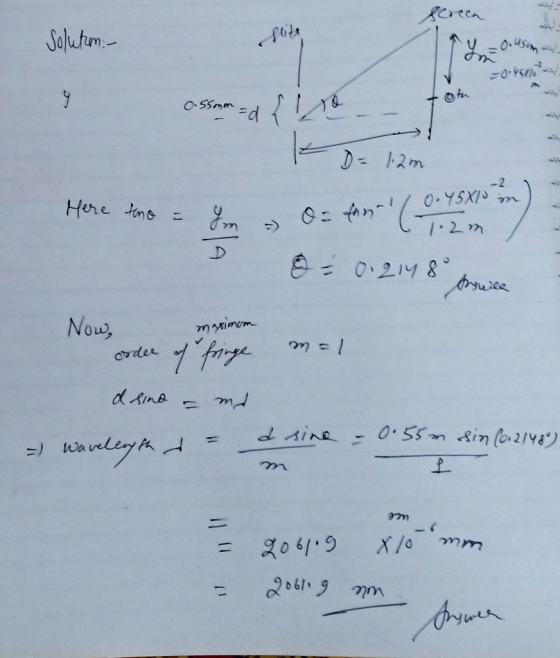

Light is incident on two slits that are separated by 0.55 mm. A two-slit interference pattern is created on a screen that is 1.2 m away. The 1st order maximum occurs 0.45 cm away from the 0th order maximum. What is the angle (in degrees) for the 1st order maximum?
Draw a picture of this situation BEFORE you try to solve the problem. Pay attention to your UNITS!
What is the wavelength (in nm) of the light?
(Two slit interference is often used to determine the wavelength of
a light source)
Homework Answers
Add Answer to:
Light is incident on two slits that are separated by 0.55 mm. A
two-slit interference pattern...
Green light of wavelength 540 nm is incident on two slits that are separated by 0.50...
Green light of wavelength 540 nm is incident on two slits that are separated by 0.50 mm. 1) Determine the angles of the first two maxima of the interference pattern (not including the central band). 2) What can you change (keeping the other parameters constant) in order to double the distance between the 0th order and the first order maximum on the screen? (CHOOSE ALL THAT APPLY) A) Double the wavelength B) Reduce by one-half the separation between the screen...
A double-slit interference experiment is performed with two very narrow slits separated by 0.10 mm. The...
A double-slit interference experiment is performed with two very narrow slits separated by 0.10 mm. The experiment uses red light with a wavelength of 680 nm and projects the interference pattern onto a screen 6.0 m away from the slits (a) What Is the dlstance between two nearby brlght fringes on the screen? (b) What is the distance between two nearby dark fringes on the screen? Assume these fringes are all near0
Two slit interference: Two slits separated by 4 μm are illuminated by light of wavelength λ=500...
Two slit interference: Two slits separated by 4 μm are illuminated by light of wavelength λ=500 nm incident normally on the slit. (a) Draw a diagram showing the waves leaving the slit that will eventually converge on a distant point at the second (m=2) interference maximum above the central maximum. (b) Calculate the angle of light at which this maximum is formed. (c) What is the distance between interference maxima on a screen placed 2 m from the slits? d)...
Monochromatic light is incident on (and perpendicular to) two slits separated by 0.175 mm, which causes...
Monochromatic light is incident on (and perpendicular to) two slits separated by 0.175 mm, which causes an interference pattern on a screen 536 cm away. The light has a wavelength of 656.3 nm (a) What is the fraction of the maximum intensity at a distance of 0.600 cm from the central maximum of the interference pattern? (b) What If? What is the minimum distance (absolute value, in mm) from the central maximum where you would find the intensity to be...
Two narrow slits are used to produce a double-slit interference pattern with monochromatic light. The slits...
Two narrow slits are used to produce a double-slit interference pattern with monochromatic light. The slits are separated by 7 mm, and the interference pattern is projected onto a screen 7 m away from the slits. The central bright fringe is at a certain spot on the screen. Using a ruler with one end placed at the central fringe, you move along the ruler passing by two more bright fringes and find that the next bright fringe is 21.5 mm...
Two narrow slits are separated by a distance d. Their interference pattern is to be observed...
Two narrow slits are separated by a distance d. Their interference pattern is to be observed on a screen a large distance L away. Calculate the spacing y of the maxima of the screen for light of wavelength 500 nm when L = 1 m and d = 1 cm. Would you expect to observe the interference of light on the screen for this situation? Explain. How close together should the slits be placed for the maxima to be separated...
A double-slit interference experiment is performed with two very narrow slits separated by 0.19 mm. The...
A double-slit interference experiment is performed with two very narrow slits separated by 0.19 mm. The experiment uses red light with a wavelength of 700 nm and projects the interference pattern onto a screen 5.0 m away from the slits. (a) What is the distance between two nearby bright fringes on the screen? (b) What is the distance between two nearby dark fringes on the screen? Assume these fringes are all near θ = 0. A Young's double-slit interference experiment...
In a two - slit experiment, the slit separation is 3.00 × m. The interference pattern...
In a two - slit experiment, the slit separation is 3.00 × m. The interference pattern is created on a screen that is 2.00 m away from the slits. If the 7th bright fringe on the screen is 10.0 cm away from the central fringe, what is the wavelength of the light? A) 100 nm B) 204 nm C) 214 nm D) 224 nm E) 234 nm
1. Light of wavelength 640 nm is incident on two slits separated by 0.880 mm. An...
1. Light of wavelength 640 nm is incident on two slits separated by 0.880 mm. An interference pattern is observed on a screen 2.20 m away. a) Using the small angle approximation (tan θ sinθ), find the distance between the central maximum and the first bright fringe. b) What percent of error is made in locating of the seventh-order bright fringe if the small angle approximation is used compared to using the exact trigonometric function? c) How does the...
A double-slit interference pattern is created by two narrow slits spaced 0.21 mm apart. The distance...
A double-slit interference pattern is created by two narrow slits spaced 0.21 mm apart. The distance between the first and the fifth minimum on a screen 62 cm behind the slits is 6.0 mm. What is the wavelength (in nm) of the light used in this experiment? λ = ( )nm
A double-slit interference experiment is performed with two very narrow slits separated by 0.10 mm. The experiment uses red light with a wavelength of 680 nm and projects the interference pattern onto a screen 6.0 m away from the slits (a) What Is the dlstance between two nearby brlght fringes on the screen? (b) What is the distance between two nearby dark fringes on the screen? Assume these fringes are all near0
Monochromatic light is incident on (and perpendicular to) two slits separated by 0.175 mm, which causes an interference pattern on a screen 536 cm away. The light has a wavelength of 656.3 nm (a) What is the fraction of the maximum intensity at a distance of 0.600 cm from the central maximum of the interference pattern? (b) What If? What is the minimum distance (absolute value, in mm) from the central maximum where you would find the intensity to be...
