Two slit interference:
Two slits separated by 4 μm are illuminated by light of wavelength
λ=500 nm incident normally on the slit.
(a) Draw a diagram showing the waves leaving the slit that will
eventually converge on a distant point at the second (m=2)
interference maximum above the central maximum.
(b) Calculate the angle of light at which this maximum is
formed.
(c) What is the distance between interference maxima on a screen
placed 2 m from the slits?
d) If the peak intensity from a single slit is denoted by I0, what
is the peak intensity from two slits?
Please explain in detail and don't just give the answer.

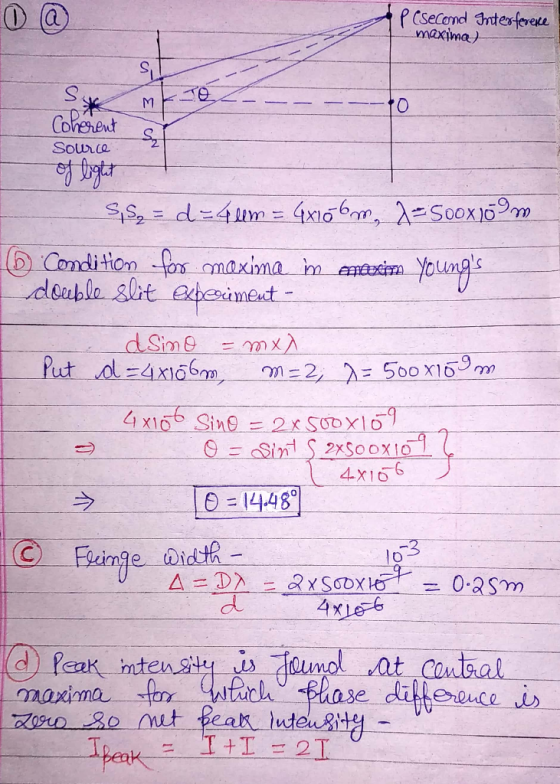

Homework Answers
Add Answer to:
Two slit interference:
Two slits separated by 4 μm are illuminated by light of wavelength
λ=500...
A pair of slits separated by 0.5 mm, are illuminated with monochromatic light of wavelength 587...
A pair of slits separated by 0.5 mm, are illuminated with
monochromatic light of wavelength 587 nm. The light falls on a
screen 2.74 m away producing an interference pattern. A piece of
glass with index of refraction n = 1.76 is placed at one slit.
Placing the piece of glass in front of the slit causes the maxima
to shift 0.14δx, where δx is the distance between adjacent maxima.
What is the thickness of the glass in μm
?
A pair of narrow slits is illuminated with light of wavelength λ= 566.1 nm. The resulting...
A pair of narrow slits is illuminated with light of wavelength λ= 566.1 nm. The resulting interference maxima are found to be separated by 0.90 mm on a screen 1.18 m from the slits. What is the separation of the slits? (mm)
A pair of narrow slits is illuminated with light of wavelength λ= 542.1 nm. The resulting...
A pair of narrow slits is illuminated with light of wavelength λ= 542.1 nm. The resulting interference maxima are found to be separated by 0.92 mm on a screen 0.86 m from the slits. What is the separation of the slits? (mm) Please show your work!
An interference pattern is produced by light with a wavelength 590 nm from a distant source...
An interference pattern is produced by light with a wavelength 590 nm from a distant source incident on two identical parallel slits separated by a distance (between centers) of 0.570 mm . Part A If the slits are very narrow, what would be the angular position of the first-order, two-slit, interference maxima? θ1 θ1 = nothing radians SubmitRequest Answer Part B What would be the angular position of the second-order, two-slit, interference maxima in this case? θ2 θ2 = nothing...
Two slits separated by a distance of d = 0.175 mm are located at a distance...
Two slits separated by a distance of d = 0.175 mm are located at a distance of D = 2.01 m from a screen. The screen is oriented parallel to the plane of the slits. The slits are illuminated by a monochromatic and coherent light source with a wavelength of λ = 604 nm. A wave from each slit propagates to the screen. The interference pattern shows a peak at the center of the screen (m=0) and then alternating minima...
In a double-slit experiment, the slits are illuminated by a monochromatic, coherent light source having a wavelength of...
In a double-slit experiment, the slits are illuminated by a monochromatic, coherent light source having a wavelength of 517 nm. An interference pattern is observed on the screen. The distance between the screen and the double-slit is 1.3 m and the distance between the two slits is 0.118 mm. A light wave propogates from each slit to the screen. What is the path length difference between the distance traveled by the waves for the fifth-order maximum (bright fringe) on the...
Two thin slits separated by 0.0765 mm are illuminated by light from a He-Ne laser (λ...
Two thin slits separated by 0.0765 mm are illuminated by light from a He-Ne laser (λ = 633 nm), producing interference fringes on a distant screen. Find the angle between the centers of the central bright fringe and the next bright fringe.
Light is incident on two slits that are separated by 0.55 mm. A two-slit interference pattern...
Light is incident on two slits that are separated by 0.55 mm. A two-slit interference pattern is created on a screen that is 1.2 m away. The 1st order maximum occurs 0.45 cm away from the 0th order maximum. What is the angle (in degrees) for the 1st order maximum? Draw a picture of this situation BEFORE you try to solve the problem. Pay attention to your UNITS! What is the wavelength (in nm) of the light? (Two slit interference...
Two thin slits separated by 2.2 mm are illuminated by light from a He-Ne laser (λ...
Two thin slits separated by 2.2 mm are illuminated by light from a He-Ne laser (λ = 633 nm), producing interference fringes on a distant screen. Find the angle between the centers of the central bright fringe and the next bright fringe. (in degrees)
A double slit aperture is illuminated by light of wavelength 530nm and the interference pattern is...
A double slit aperture is illuminated by light of wavelength 530nm and the interference pattern is observed on a screen 5.00m away. The slits are 2.125fim width and are separated by 0.1mm. How far apart are the first and second bright fringes? How far apart are the first and second dark fringes? Determine the slit to screen distance required such that the width of the central peak of the diffraction pattern is 1 m. Why is the calculation from part...
A pair of slits separated by 0.5 mm, are illuminated with
monochromatic light of wavelength 587 nm. The light falls on a
screen 2.74 m away producing an interference pattern. A piece of
glass with index of refraction n = 1.76 is placed at one slit.
Placing the piece of glass in front of the slit causes the maxima
to shift 0.14δx, where δx is the distance between adjacent maxima.
What is the thickness of the glass in μm
?
A double slit aperture is illuminated by light of wavelength 530nm and the interference pattern is observed on a screen 5.00m away. The slits are 2.125fim width and are separated by 0.1mm. How far apart are the first and second bright fringes? How far apart are the first and second dark fringes? Determine the slit to screen distance required such that the width of the central peak of the diffraction pattern is 1 m. Why is the calculation from part...
