Two narrow slits are separated by a distance d. Their interference pattern is to be observed...
- Two narrow slits are separated by a distance d. Their interference pattern is to be observed on a screen a large distance L away.
- Calculate the spacing y of the maxima of the screen for light of wavelength 500 nm when L = 1 m and d = 1 cm.
- Would you expect to observe the interference of light on the screen for this situation? Explain.
- How close together should the slits be placed for the maxima to be separated by 1 mm for this wavelength and screen distance.

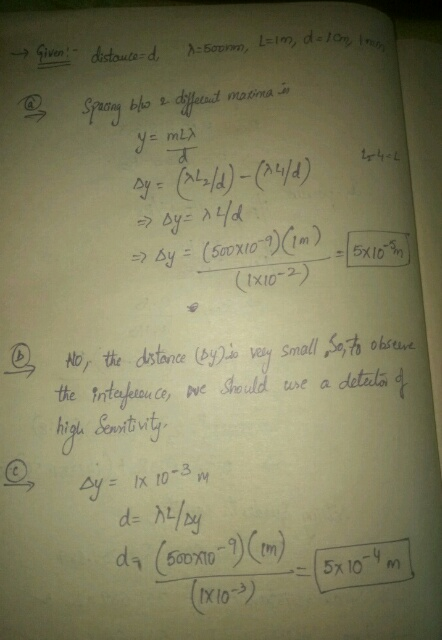

Homework Answers
Add Answer to:
Two narrow slits are separated by a distance d. Their
interference pattern is to be observed...
A double-slit interference experiment is performed with two very narrow slits separated by 0.19 mm. The...
A double-slit interference experiment is performed with two very narrow slits separated by 0.19 mm. The experiment uses red light with a wavelength of 700 nm and projects the interference pattern onto a screen 5.0 m away from the slits. (a) What is the distance between two nearby bright fringes on the screen? (b) What is the distance between two nearby dark fringes on the screen? Assume these fringes are all near θ = 0. A Young's double-slit interference experiment...
Two narrow slits are used to produce a double-slit interference pattern with monochromatic light. The slits...
Two narrow slits are used to produce a double-slit interference pattern with monochromatic light. The slits are separated by 7 mm, and the interference pattern is projected onto a screen 7 m away from the slits. The central bright fringe is at a certain spot on the screen. Using a ruler with one end placed at the central fringe, you move along the ruler passing by two more bright fringes and find that the next bright fringe is 21.5 mm...
A laser with a wavelength of 470. nm illuminates two narrow slits. The interference pattern from...
A laser with a wavelength of 470. nm illuminates two narrow slits. The interference pattern from the double slits is viewed on a screen that is 3.30 m away. Over a distance of 41.0 mm there are 11.0 bright fringes with the first and last fringe situated exactly at each end of that distance. What is the spacing between the two slits?
A double-slit interference experiment is performed with two very narrow slits separated by 0.10 mm. The...
A double-slit interference experiment is performed with two very narrow slits separated by 0.10 mm. The experiment uses red light with a wavelength of 680 nm and projects the interference pattern onto a screen 6.0 m away from the slits (a) What Is the dlstance between two nearby brlght fringes on the screen? (b) What is the distance between two nearby dark fringes on the screen? Assume these fringes are all near0
Two slits separated by a distance of d = 0.175 mm are located at a distance...
Two slits separated by a distance of d = 0.175 mm are located at a distance of D = 2.01 m from a screen. The screen is oriented parallel to the plane of the slits. The slits are illuminated by a monochromatic and coherent light source with a wavelength of λ = 604 nm. A wave from each slit propagates to the screen. The interference pattern shows a peak at the center of the screen (m=0) and then alternating minima...
A double-slit interference pattern is created by two narrow slits spaced 0.21 mm apart. The distance...
A double-slit interference pattern is created by two narrow slits spaced 0.21 mm apart. The distance between the first and the fifth minimum on a screen 62 cm behind the slits is 6.0 mm. What is the wavelength (in nm) of the light used in this experiment? λ = ( )nm
A double-slit interference pattern is created by two narrow slits spaced 0.22 mm apart. The distance...
A double-slit interference pattern is created by two narrow slits spaced 0.22 mm apart. The distance between the first and the fifth minimum on a screen 58 cm behind the slits is 6.3 mm. What is the wavelength (in nm) of the light used in this experiment?
A double-slit interference pattern is created by two narrow slits spaced 0.22 mm apart. The distance...
A double-slit interference pattern is created by two narrow slits spaced 0.22 mm apart. The distance between the first and the fifth minimum on a screen 58 cm behind the slits is 6.1 mm. What is the wavelength (in nm) of the light used in this experiment?
o Question 1 1 pts The below interference/diffraction pattern for two slits is observed on a...
o Question 1 1 pts The below interference/diffraction pattern for two slits is observed on a screen that is 1.5 meters from the slits. Here, red light with a wavelength of 700 nm (1 nm = 1x10 m) that is normally incident on these slits yields this pattern. 9 mm st 4 mm Using the locations of interference maxima (e.g.. the m=2 maxima lies 4.0 mm from the center of the pattern), determine the distance between these two slits (in...
(d) (8 marks) An aperture in the form of a narrow slit 0.28 mm wide forms...
(d) (8 marks) An aperture in the form of a narrow slit 0.28 mm wide forms a diffraction pattern on a screen placed 7.0 m away when illuminated with light of wavelength 600 nm. (1) Calculate the width of the central peak of the diffraction pattern (i.e. from minimum to minimum) on the screen. (11) If instead of using one slit the light illuminates two such slits separated by 0.90 mm, what is the separation of the interference maxima formed...
A double-slit interference experiment is performed with two very narrow slits separated by 0.10 mm. The experiment uses red light with a wavelength of 680 nm and projects the interference pattern onto a screen 6.0 m away from the slits (a) What Is the dlstance between two nearby brlght fringes on the screen? (b) What is the distance between two nearby dark fringes on the screen? Assume these fringes are all near0
o Question 1 1 pts The below interference/diffraction pattern for two slits is observed on a screen that is 1.5 meters from the slits. Here, red light with a wavelength of 700 nm (1 nm = 1x10 m) that is normally incident on these slits yields this pattern. 9 mm st 4 mm Using the locations of interference maxima (e.g.. the m=2 maxima lies 4.0 mm from the center of the pattern), determine the distance between these two slits (in...
(d) (8 marks) An aperture in the form of a narrow slit 0.28 mm wide forms a diffraction pattern on a screen placed 7.0 m away when illuminated with light of wavelength 600 nm. (1) Calculate the width of the central peak of the diffraction pattern (i.e. from minimum to minimum) on the screen. (11) If instead of using one slit the light illuminates two such slits separated by 0.90 mm, what is the separation of the interference maxima formed...
