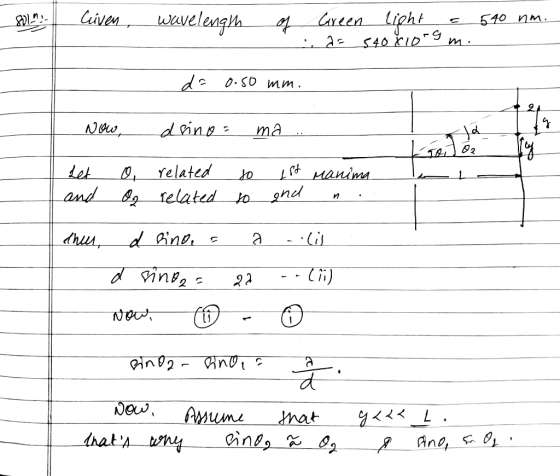

Green light of wavelength 540 nm is incident on two slits that are separated by 0.50 mm.

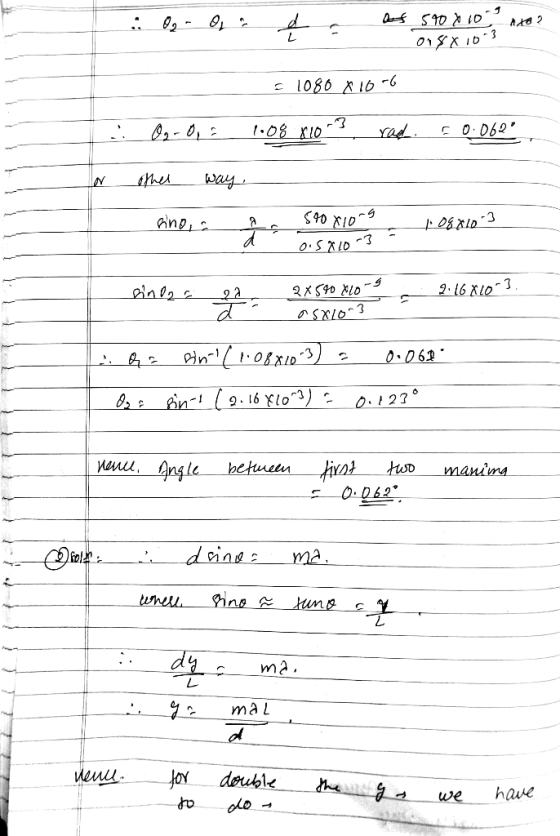

1) Determine the angles of the first two maxima of the interference pattern (not including the central band).
2) What can you change (keeping the other parameters constant) in order to double the distance between the 0th order and the first order maximum on the screen? (CHOOSE ALL THAT APPLY)
A) Double the wavelength
B) Reduce by one-half the separation between the screen and the slits
C) Double the slit separation
D) Double the separation between the screen and the slits
E) Reduce by one-half the slit separation
Homework Answers
Add Answer to:
Green light of wavelength 540 nm is incident on two slits that
are separated by 0.50...
1. Light of wavelength 640 nm is incident on two slits separated by 0.880 mm. An...
1. Light of wavelength 640 nm is incident on two slits separated by 0.880 mm. An interference pattern is observed on a screen 2.20 m away. a) Using the small angle approximation (tan θ sinθ), find the distance between the central maximum and the first bright fringe. b) What percent of error is made in locating of the seventh-order bright fringe if the small angle approximation is used compared to using the exact trigonometric function? c) How does the...
Light is incident on two slits that are separated by 0.55 mm. A two-slit interference pattern...
Light is incident on two slits that are separated by 0.55 mm. A two-slit interference pattern is created on a screen that is 1.2 m away. The 1st order maximum occurs 0.45 cm away from the 0th order maximum. What is the angle (in degrees) for the 1st order maximum? Draw a picture of this situation BEFORE you try to solve the problem. Pay attention to your UNITS! What is the wavelength (in nm) of the light? (Two slit interference...
Coherent light of wavelength 670 nm passes through two parallel slits separated by 0.50 mm. The...
Coherent light of wavelength 670 nm passes through two parallel slits separated by 0.50 mm. The interference pattern is observed on a screen 75 cm from the slits. If the width of each slit is 0.10 mm, how far from the central bright fringe is the first missing fringe? a. 5.0 mm b. 10 mm c. 2.5 mm d. 7.5 mm
A laser beam ( - 632.6 nm) is incident on two slits 0.200 mm apart. How...
A laser beam ( - 632.6 nm) is incident on two slits 0.200 mm apart. How far apart are the bright interference fringes on a screen 5 m away from the double slits? cm 2. (-/10 Points) DETAILS SERCP7 24.P.002. MY NOTES PRACTICE ANOTHER In a Young's double-slit experiment, a set of parallel sits with a separation of 0.050 mm is illuminated by light having a wavelength of 593 nm and the interference pattern observed on a screen 3.50 m...
Consider double slit experiment with two slits are separated by d=0,715 mm
Consider double slit experiment with two slits are separated by d=0.715 mm and each slit width is 0.00321 mm. Screen is placed L=1.28 m away from the slits. a) Derive an algebraic equation to find linear distance of interference bright fringe on the screen from central bright (central maxima) fringe? b) Consider interference pattern due to light of unknown wavelength and linear separation between 2 and 5" bright fringes is 3.05 mm. Find the wavelength of the light? c) Now consider double slit...
A light source containing two wavelengths, red and green, is incident on two slits separated by...
A light source containing two wavelengths, red and green, is incident on two slits separated by a distance "d". The resulting pattern is observed on a screen a distance "L"away. 1. Draw a diagram indicating the source, the slits, the screen and the resulting zeroth, first and second order pattern observed on the screen. Clearly label the color(s) of the spots. (10 Points) Op 2. In the two 2. In the two-slit experiment described above, a third-order bright fringe for...
D) More information needed. 3. Monochromatic light falling on two slits 0.5 mm apart produces the...
PLEASE ANSWER 3 AND 5 SHOW ALL ALGEBRA STEPS
D) More information needed. 3. Monochromatic light falling on two slits 0.5 mm apart produces the second order fringe at 0.15 angle. The interference pattern from the slits is projected onto a screen that is 3.00 m away (a) What is the wavelength of the light used (in nm)? (b) What is the separation distance (in mm) on the screen of the second bright fringe from the central bright fringe? (c)...
4. Light of wavelength 580nm is incident on 2 identical parallel slits separated by distance (between...
4. Light of wavelength 580nm is incident on 2 identical parallel slits separated by distance (between centers) of 0.53 mm. (i) If the slits are narrow (infinitely thin), what are the angular positions (0) of the first order (m- 1) and second order (m-2), "two slit interference" maxima? (ii) If the slits are no longer considered infinitely thin, but have width 0.32 mm, what is the intensity at each of the angular positions obtained in part (i)? You should express...
I. Two slits separated by 0.050 mm are illuminated with green light ( 540 nm). The...
I. Two slits separated by 0.050 mm are illuminated with green light ( 540 nm). The distance between the double slits and the screen is 1.0 m. How many bands of bright lines are there between the central maximum (0) and the 12-cm position (y 12cm)?
1. A beam of green light is split by thin double slit with separation of 0.0500mm...
1. A beam of green light is split by thin double slit with separation of 0.0500mm and incident upon a screen some distance away. The angles of the first and second maximums are .584o and 1.17o respectively. What is the wavelength of the green light? 2. A single, monochromatic indigo light source is shined through an etched, flat prism with a slit separation of .0250mm. The resulting interference pattern is viewed on a screen 1.25m away. The third maximum is...
A laser beam ( - 632.6 nm) is incident on two slits 0.200 mm apart. How far apart are the bright interference fringes on a screen 5 m away from the double slits? cm 2. (-/10 Points) DETAILS SERCP7 24.P.002. MY NOTES PRACTICE ANOTHER In a Young's double-slit experiment, a set of parallel sits with a separation of 0.050 mm is illuminated by light having a wavelength of 593 nm and the interference pattern observed on a screen 3.50 m...
A light source containing two wavelengths, red and green, is incident on two slits separated by a distance "d". The resulting pattern is observed on a screen a distance "L"away. 1. Draw a diagram indicating the source, the slits, the screen and the resulting zeroth, first and second order pattern observed on the screen. Clearly label the color(s) of the spots. (10 Points) Op 2. In the two 2. In the two-slit experiment described above, a third-order bright fringe for...
PLEASE ANSWER 3 AND 5 SHOW ALL ALGEBRA STEPS
D) More information needed. 3. Monochromatic light falling on two slits 0.5 mm apart produces the second order fringe at 0.15 angle. The interference pattern from the slits is projected onto a screen that is 3.00 m away (a) What is the wavelength of the light used (in nm)? (b) What is the separation distance (in mm) on the screen of the second bright fringe from the central bright fringe? (c)...
4. Light of wavelength 580nm is incident on 2 identical parallel slits separated by distance (between centers) of 0.53 mm. (i) If the slits are narrow (infinitely thin), what are the angular positions (0) of the first order (m- 1) and second order (m-2), "two slit interference" maxima? (ii) If the slits are no longer considered infinitely thin, but have width 0.32 mm, what is the intensity at each of the angular positions obtained in part (i)? You should express...
I. Two slits separated by 0.050 mm are illuminated with green light ( 540 nm). The distance between the double slits and the screen is 1.0 m. How many bands of bright lines are there between the central maximum (0) and the 12-cm position (y 12cm)?
