Question

Show each red-black tree that results after successively inserting the keys 4 7 12 15 3 5 14 18 into an initially empty red-black tree. At the steps were a red-black tree rule is violated, explain how it is corrected

Now delete these keys in this order and show each resultant red-black tree 18 15 7 14. At the steps were a red-black tree rule is violated, explain how it is corrected

Answer 1

Step 1: Insert keys 4 & 7



Step 2: Insert key 12

In above Tree Node and parent are both red. Node is right child, parent is right child Can fix extra redness with a single rotation

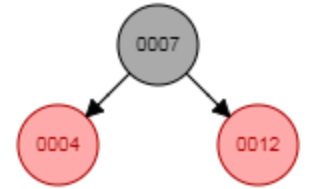

Perform Single Rotate Left

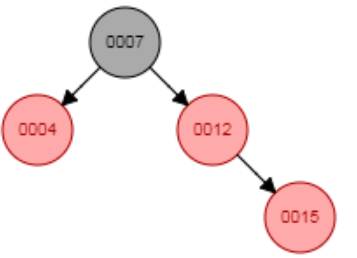

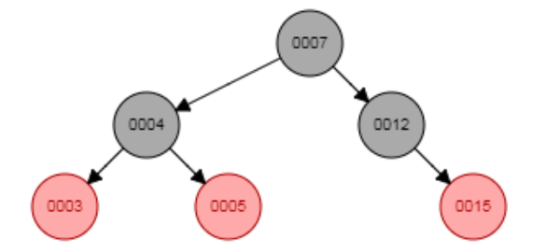

Step 3: Insert key 15

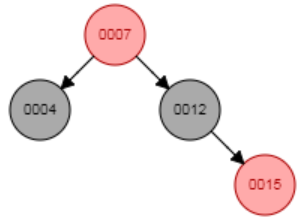

Node and parent are both red. Uncle of node is red — push blackness down from grandparent

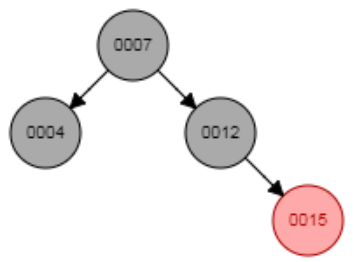

Root of the tree is red.color it black

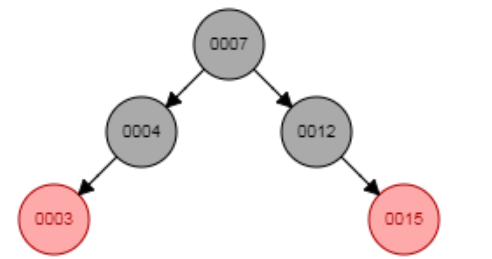

Step 4: Insert key 3



Step 5: Insert key 5

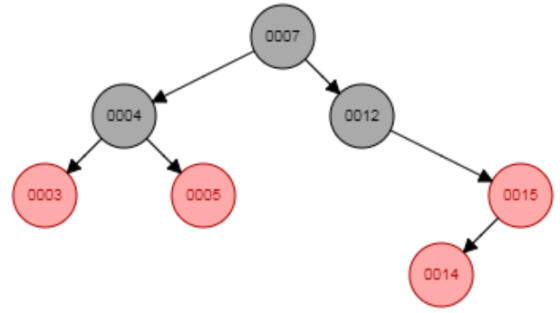

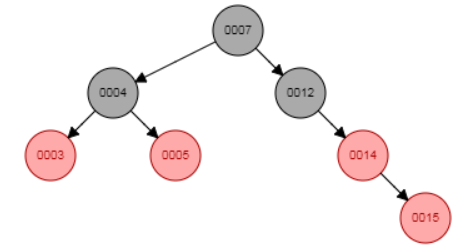

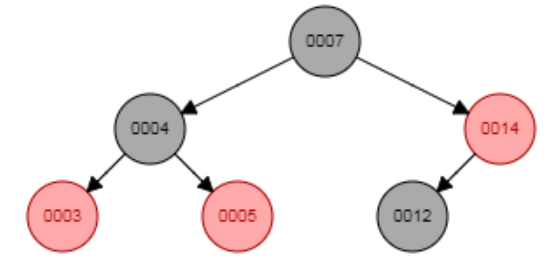

Step 6: Insert key 14

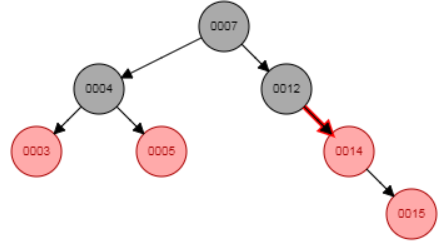

Node and parent are both red. Node is left child, parent is right child so Perform Rotate

Perform SIngle Rotate Right

Node and parent are both red. Node is right child, parent is right child Can fix extra redness with a single rotation

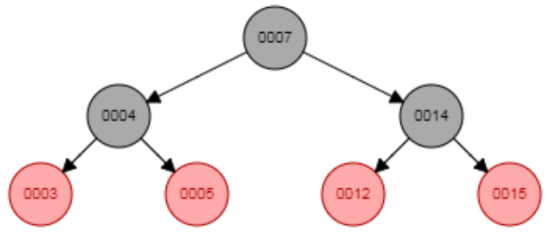

Perform SIngle Rotate Left

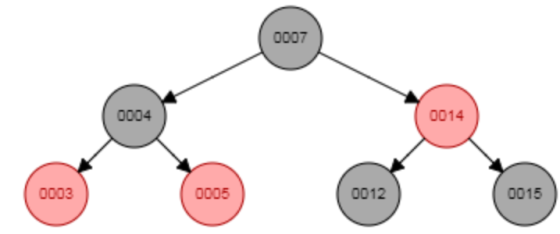

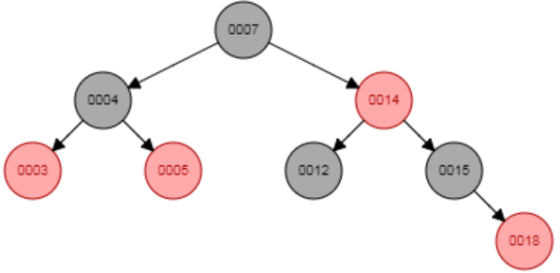

Step 7: Insert key 18

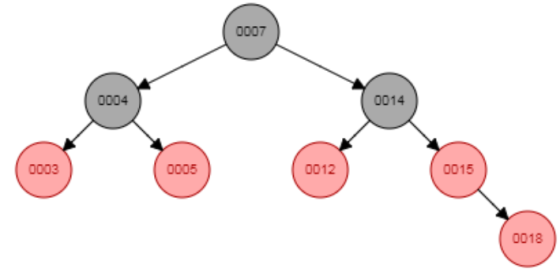

Node and parent are both red. Uncle of node is red so push blackness down from grandparent

Which is required Red-black tree after successively inserting the keys

Delete 18:

Node to delete is a leaf. Delete it

Delete 15:

Node to delete is a leaf. Delete it

Double black node has black sibling and 2 black nephews. Push up black level

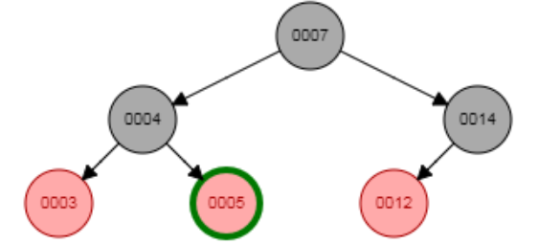

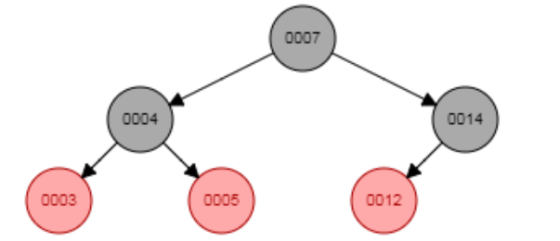

Delete 7:

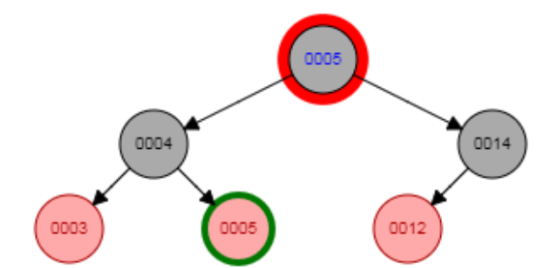

Node to delete has two childerr. Find largest node in left subtree.

Copy largest value of left subtree into node to delete.

Remove the node whose value we copied

Deleted node was red. No tree rotations required

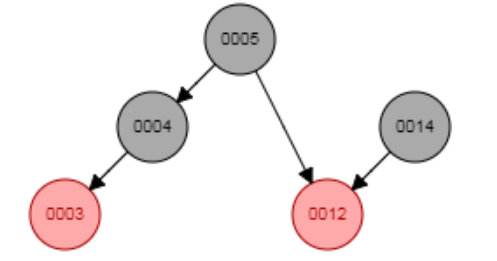

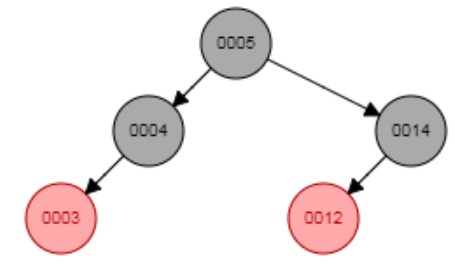

Delete 14:

Node to delete has no right child. Set parent of deleted node to left child of deleted node.

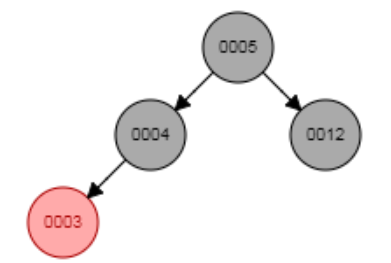

Which is required Red-black tree after successively Deleting the keys
