A superconducting solenoid has 1430 turns/m and carries a current of 2000 A. The permeability of...

Question

Question

A superconducting solenoid has 1430 turns/m and carries a current of 2000 A.

The permeability of free space is 1.25664 × 10−6 T · m/A.

What is the magnetic field generated inside the solenoid?
Answer in units of T.

science physics

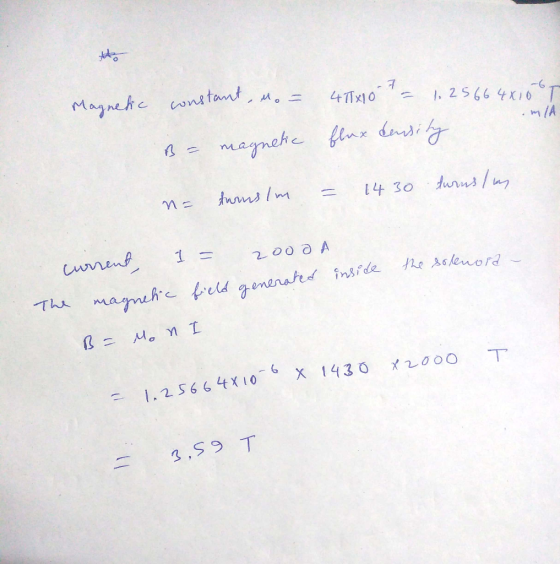

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

What current is required in the windings of a long solenoid that has 1446 turns uniformly...

What current is required in the windings of a long solenoid that has 1446 turns uniformly distributed over a length of 0.257 m in order to produce inside the solenoid a magnetic field of magnitude 0.0001243 T? The permeablity of free space is 1.25664 × 10−6 T m/A. Answer in units of mA.
007 10.0 points What current is required in the windings of a long solenoid that has...

007 10.0 points What current is required in the windings of a long solenoid that has 732 turns uniformly distributed over a length of 0.337 m in order to produce inside the solenoid a magnetic field of magnitude 0.0001144 T? The permeablity of free space is 1.25664 × 10 -6 Tm/A. Answer in units of mA 008 10.0 points
What current is required in the windings of a long solenoid that has 1350 turns uni-...

What current is required in the windings of a long solenoid that has 1350 turns uni- formly distributed over a length of 0.128 m in order to produce a magnetic field of magnitude 0.000341 T at the center of the solenoid? The permeability of free space is 4π×10−7T·m/A. Answer in units of mA.

A solenoid 3.3 m long has a radius of 0.8 cm and 600 turns. It carries...

A solenoid 3.3 m long has a radius of 0.8 cm and 600 turns. It carries a current of 3.5 A. The permeability of free space is 4 ?
A solenoid has carries 15 A with a turn density of 12 turns pe with a...

A solenoid has carries 15 A with a turn density of 12 turns pe with a relative permeability of 2000. What is the magnitude of the magnetic field at the center of this solenoid? rmm. There is an iron core through the solenoid 3. (3 points)
016 (part 1 of 2) 10.0 points A solenoid of length 4.7 m consists of 18.85...

016 (part 1 of 2) 10.0 points A solenoid of length 4.7 m consists of 18.85 turns and carries a current of 861 A. The permeability of free space is 47 X 10-7 T:m/A. Find the magnitude of the magnetic field at the center of the solenoid. Assume that the solenoid length > the radius of the solenoid. Answer in units of T. 017 (part 2 of 2) 10.0 points Find the magnitude of the magnetic field along the axis...

An inductor in the form of an air core solenoid contains 568 turns, is of length...

An inductor in the form of an air core solenoid contains 568 turns, is of length 9.7 cm, and has a cross sectional area of 1.2 cm^2. The permeability of free space is 1.25664*10^-6 N/A^2. What is the magnitude of the uniform rate of change in current through the inductor that induces an emf of 275 muV? Answer in units of A/s.
A long solenoid consists of 1900 turns and has a length of 0.65 m. The current...

A long solenoid consists of 1900 turns and has a length of 0.65 m. The current in the wire is 0.41 A. What is the magnitude of the magnetic field inside the solenoid? Submit Answer Tries 0/10 A small diameter, 61 cm long solenoid has 248 turns and is connected in series with a resistor and battery. The size of the magnetic field inside the solenoid is 2.424E-4 T when a voltage of 65.0 V is applied to the circuit....
please answer 5&6 A long, thin conductor carries a current of 5.51 A. At what distance...

please answer 5&6 A long, thin conductor carries a current of 5.51 A. At what distance from the conductor is the magnitude of the resulting magnetic field 5.95 x 10-5 T? Answer in units of cm. 006 10.0 points A lightening bolt may carry a current of 6700 A for a short period of time. The permeability of free space is 1.25664 x 10-6 T.m/A. What is the resulting magnetic field 142 m from the bolt? Suppose that the bolt...

010 (part 1 of 2) 10.0 points A solenoid has 132 turns of wire uniformly wrapped...

010 (part 1 of 2) 10.0 points A solenoid has 132 turns of wire uniformly wrapped around an air-filled core, which has a diameter of 5 mm and a length of 5.4 cm. The permeability of free space is 1.25664 x 10-6 N/A2. Calculate the self-inductance of the solenoid. Answer in units of H. 011 (part 2 of 2) 10.0 points The core is replaced with a soft iron rod that has the same dimensions, but a magnetic per- meability...
