Part A: A simply supported beam has a span of 15 feet, and carries a load...

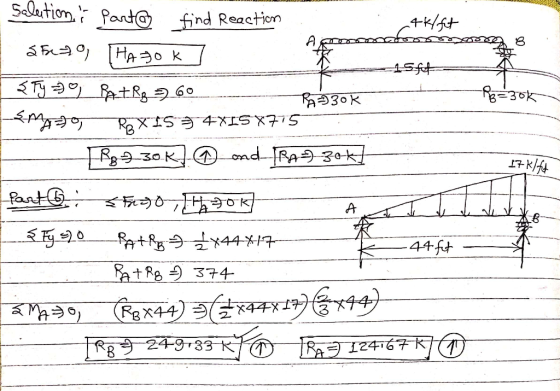

Part A: A simply supported beam has a span of 15 feet, and carries a load of 4 K/ft. What is the magnitude of the left support vertical Reaction?
Part B: A simply supported beam as a length of 44 feet, and carries a maximum load of 17 k/ft and a minimum of 0 k/ft, as a triangular distributed load. What is the magnitude of the largest reaction?
Homework Answers
Add Answer to:
Part A: A simply supported beam has a span of 15 feet, and
carries a load...
16.6a) A simply supported beam is to span 15 ft. It will support a uniformly distributed load of ...
16.6a) A simply supported beam is to span 15 ft. It will support a uniformly distributed load of 2 kips/ft over the full span and a concentrated load of 60 kips at mid-span. What is the required plastic section modulus Zx? (Include self-weight) 16.6b) A simply supported beam is to span 15 ft. It will support a uniformly distributed load of 2 kips/ft over the full span and a concentrated load of 60 kips at mid-span. Deflection is not to...
A steel beam is simply supported over a span of 20 feet and carries a total design point load of 6 kips at the center of the span. The moment of inertia (1) for the beam is 245 in4. Neglecting th...
A steel beam is simply supported over a span of 20 feet and carries a total design point load of 6 kips at the center of the span. The moment of inertia (1) for the beam is 245 in4. Neglecting the beam weight, the maximum load deflection of the beam is with a point load in.(Fill in the blank and show calculation below) Show equation(s) used and calculation(s):
A steel beam is simply supported over a span of 20 feet...
1. Draw influence lines for shear and moment at 15, 25, and 30 feet from the left support for a simply supported be...
1. Draw influence lines for shear and moment at 15, 25, and 30 feet from the left support for a simply supported beam with a span of 60 feet. Show values of maxima. 2. Using the influence lines in part 1, determine the shear and moment at 15, 25, and 30 feet for a uniformly distributed load of 50 k/ft applied over the length of the beam required to produce the maximum shear and moment at each point. 3. Using...
A Simply supported wood beam AB with span length Labm Carries trapezoidal distributed load of eatersita...
A Simply supported wood beam AB with span length Labm Carries trapezoidal distributed load of eatersita q=vikula at the best and and at the right end. calculate the maximum bending stress Tomax clue to the load of the beam has a rectangular sechan with width 6=150mm and 9/2 Cross height ho 850mm. a
A 9m span simply supported beam carries a load varying from 20KN/m at left end to 40KN/m at the r...
A 9m span simply supported beam carries a load varying from 20KN/m at left end to 40KN/m at the right end. The variation is reported to be linear. You are required to find the following: a) slopes at support b) position and magnitude of maximum deflection E=200GPa and I=12000cm4
A simply supported wood beam of rectangular cross section and span length 2 m carries a...
A simply supported wood beam of rectangular cross section and span length 2 m carries a uniformly distributed load of intensity 9 = 1 kN/m as shown. Calculate the maximum bending stress and the maximum shear stress in the beam.
A simply supported wood beam AB with span length L = 6 m
A simply supported wood beam AB with span length L = 6 m carries a trapezoidal distributed load of intensity q = 4 kN/m at the left end and q/2 at the right end. Calculate the maximum bending stress Omax due to the load if the beam has a rectangular cross section with width b = 150 mm and height h = 250 mm.
A simply supported beam as shown in the figure. The beam section is W18x211. The beam...
A simply supported beam as shown in the figure. The beam section is W18x211. The beam must support its own weight and must carry the following loading: Super-imposed distributed dead load = 0.25 kip/ft Distributed live load = 1 kip/ft Concentrated dead load = 12 kip The beam span L = 26 ft and the distance of the concentrated load from the right support a=6 ft. Consider analy- sis of beam subjected to load combination 1.2 dead + 1.6 live....
A simply supported beam has a span of 10 ft, a depth of 18 in., and...
A simply supported beam has a span of 10 ft, a depth of 18 in., and a width of 12 in. The beam is concrete with f'c = 4000 psi. Find the maximum factored load that this beam can support. Also check the shear capacity and flexural capacity.
A simply supported wood beam with a span of L = 17 ft supports a uniformly...
A simply supported wood beam with a span of L = 17 ft supports a uniformly distributed load of w0 = 250 lb/ft. The allowable bending stress of the wood is 1.65 ksi. If the aspect ratio of the solid rectangular wood beam is specified as h/b = 2.25, calculate the minimum width b that can be used for the beam.
A steel beam is simply supported over a span of 20 feet and carries a total design point load of 6 kips at the center of the span. The moment of inertia (1) for the beam is 245 in4. Neglecting the beam weight, the maximum load deflection of the beam is with a point load in.(Fill in the blank and show calculation below) Show equation(s) used and calculation(s):
A steel beam is simply supported over a span of 20 feet...
1. Draw influence lines for shear and moment at 15, 25, and 30 feet from the left support for a simply supported beam with a span of 60 feet. Show values of maxima. 2. Using the influence lines in part 1, determine the shear and moment at 15, 25, and 30 feet for a uniformly distributed load of 50 k/ft applied over the length of the beam required to produce the maximum shear and moment at each point. 3. Using...
A Simply supported wood beam AB with span length Labm Carries trapezoidal distributed load of eatersita q=vikula at the best and and at the right end. calculate the maximum bending stress Tomax clue to the load of the beam has a rectangular sechan with width 6=150mm and 9/2 Cross height ho 850mm. a
A simply supported beam as shown in the figure. The beam section is W18x211. The beam must support its own weight and must carry the following loading: Super-imposed distributed dead load = 0.25 kip/ft Distributed live load = 1 kip/ft Concentrated dead load = 12 kip The beam span L = 26 ft and the distance of the concentrated load from the right support a=6 ft. Consider analy- sis of beam subjected to load combination 1.2 dead + 1.6 live....
