A beam, of variable cross-section, is fixed at its ends and loaded with a torque at...
A beam, of variable cross-section, is fixed at its ends and loaded with a torque at its mid-span (point B). From A to B, the beam is of S1 geometry, and from B to C, the cross-section shape is S2. Assume torque T = 2 kNm, length L = 4 m, and shear modulus G = 75,000 MPa. All cross-sectional dimensions are in mm. Determine the absolute value of reaction at point A (TA) in [kNm]. Answer: Question 11 Tries remaining: 3 Marked out of 1.00 Not flaggedFlag question Question text In question 10, determine the absolute value of the angle of twist (φ) at point B in radian.
Homework Answers
ANSWER :

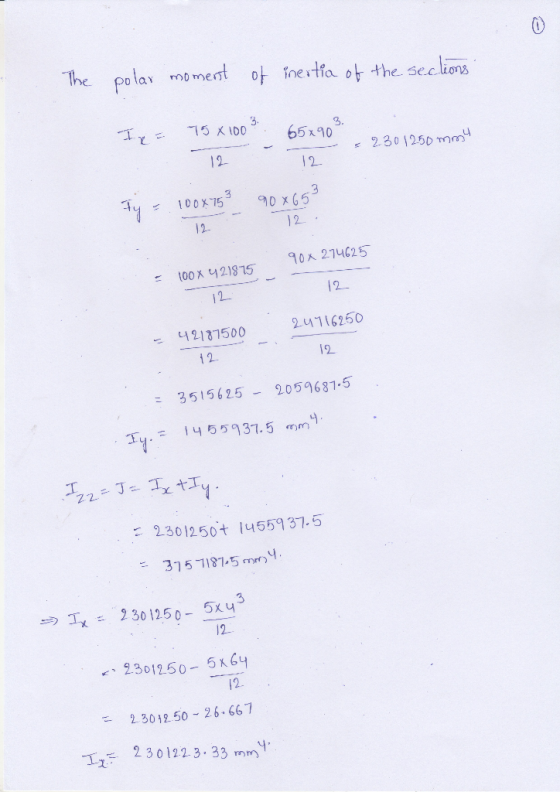

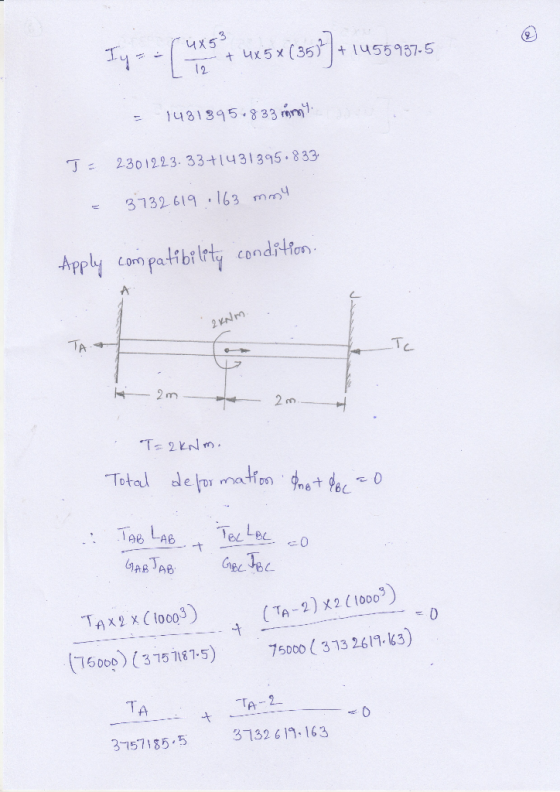

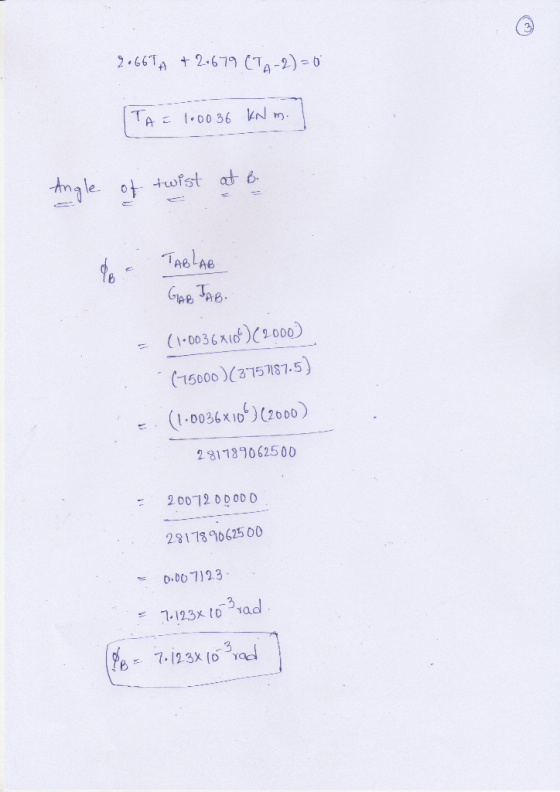

Given that :
A beam, of variable cross-section, is fixed at its ends and loaded with a torque at its mid-span .
Assume
torque T = 2 kNm,
length L = 4 m,
and shear modulus G = 75,000 MPa.
Add Answer to:
A beam, of variable cross-section, is fixed at its ends and
loaded with a torque at...
A rectangular cross section at a location along a beam in bending is
(a). A rectangular cross section at a location along a beam in bending is acted upon by a bending moment and a shear force. The cross section is \(120 \mathrm{~mm}\) wide, \(300 \mathrm{~mm}\) deep and is orientated such that it is in bending about its major axis of bending. The magnitudes of the bending moment and shear force are \(315 \mathrm{kNm}\) and \(240 \mathrm{kN}\) respectively. Determine the maximum bending and shear stresses on the cross section. Plot the bending and...
1.6. A steel cantilever beam having a cross-sectional area of 1.5cm2 is fixed at the left-hand si...
help plz
1.6. A steel cantilever beam having a cross-sectional area of 1.5cm2 is fixed at the left-hand side and loaded with a 100 N downward vertical force at the extreme end as shown in the figure shown below ba ci (a) Derive the stress equations in Cartesian coordinates if the Airy stress function is φ = aixy + a2xy, The loading conditions are k/2 2 (b) Calculate the stresses and the strains at 8 em from the fixed end...
Soild Mechanics Question 2: A beam having the cross-section shown in the drawing is loaded as...
Soild Mechanics
Question 2: A beam having the cross-section shown in the drawing is loaded as shown in figure (b). The values of the Section modulus for the beam are 1.74x106 and 0.74x106 mm3 What are the extreme fiber stresses at sections B and C 300 5 kN 2 kN/m B 4.0 4.0 3.0 50 (a) (b) O02
A beam is loaded by a shear force V. The beam cross-section is shown below. The...
A beam is loaded by a shear force V. The beam cross-section is
shown below. The moment of inertia of the cross-section is 347.1
in4. The centroid of the cross-section is 6.25 inches
from the base. Determine:
a) the shear stress at point A.
b) the shear stress at point B.
c) the maximum shear stress in the cross-section.
V = 50 (kips)
The maximum shear stress at point A is _____(ksi)
The maximum shear stress at point B is...
Can someone help me with problem 5a please Beams: 4a A beam of cross section as...
Can someone help me with problem 5a please
Beams: 4a A beam of cross section as shown (dimensions in centimeters) is loaded by a positive moment M = 800 Nm. Find: (a) the maximum tensile stress o, (x-direction is along the length of the beam); (b) the maximum compressive stress σ 20 20 100 20 Cross- section Beams: 5a The walkboard on a scaffold is 12 ft between supports. A 200 lb person is standing in the middle. The walkboard...
A beam of rectangular cross section 200 mm deep and 100 mm wide. If the beam...
A beam of rectangular cross section 200 mm deep and 100 mm wide. If the beam is 3m long, simply supported at either end and carries point loads as shown in FIGURE 2 (on page 4). 2. SAN 1OAN R, FR 100mm FIG.2 (a) Calculate the maximum bending moment (b) Calculate the maximum stress in the beam (c) At the point of maximum stress sketch a graph of the stress distribution through the thickness of the beam, indicating which are...
STRUCTURAL ANALYSIS 1. Figure below are the cross section of the beam (aluminium) a) Find the...
STRUCTURAL ANALYSIS 1. Figure below are the cross section of the beam (aluminium) a) Find the moment of inertia of cross section I beam below. (10 point) 51mm 44 mm 3.5mm 3 mm 1.5 mm 35 mm 44 mm 9 mm 1.5 mm 3mm P/2 P/2 b) 0.15m 0.17 m 0.53m By Figure above are the beam with cross sectional in question [a). Find the maximum load (P that can be sustained by the beam. Given the ultimate tensile is...
A beam with a square cross-section is in a combined state of loading. There is an axial force N 350 kN acting in the x-...
A beam with a square cross-section is in a combined state of loading. There is an axial force N 350 kN acting in the x-direction, a torque T 50 kNm acting about the x-axis, and a bending moment M 40 kNm acting about the z-axis as shown. The side length of the beam is a 15.0 cm. B T a (a) Find the nomal stress due to N and M at points A and B. [10 marks] (b) Find the...
For a beam of rectangular cross section, height b, depth d, is simply supported (by pin...
For a beam of rectangular cross section, height b, depth d, is simply supported (by pin joints at each end) over a span of length L and carries a point load W at mid span. Determine the distribution and maximum value of the normal stress.
2. A cantilever of 3 m length with a T-shaped cross-section is loaded by three ncentrated...
2. A cantilever of 3 m length with a T-shaped cross-section is loaded by three ncentrated loads: W-80 N at the free end, W 30 N, and W,-60 N at a distance of from the free end. All loads are applied at the outer edges of the flange as icated in the sketch below. (a) Determine the maximum torsional shear stresses in the flange and in the web at distances 0.5 m and 2.5 m from the free end (sections...
help plz
1.6. A steel cantilever beam having a cross-sectional area of 1.5cm2 is fixed at the left-hand side and loaded with a 100 N downward vertical force at the extreme end as shown in the figure shown below ba ci (a) Derive the stress equations in Cartesian coordinates if the Airy stress function is φ = aixy + a2xy, The loading conditions are k/2 2 (b) Calculate the stresses and the strains at 8 em from the fixed end...
Soild Mechanics
Question 2: A beam having the cross-section shown in the drawing is loaded as shown in figure (b). The values of the Section modulus for the beam are 1.74x106 and 0.74x106 mm3 What are the extreme fiber stresses at sections B and C 300 5 kN 2 kN/m B 4.0 4.0 3.0 50 (a) (b) O02
A beam is loaded by a shear force V. The beam cross-section is
shown below. The moment of inertia of the cross-section is 347.1
in4. The centroid of the cross-section is 6.25 inches
from the base. Determine:
a) the shear stress at point A.
b) the shear stress at point B.
c) the maximum shear stress in the cross-section.
V = 50 (kips)
The maximum shear stress at point A is _____(ksi)
The maximum shear stress at point B is...
Can someone help me with problem 5a please
Beams: 4a A beam of cross section as shown (dimensions in centimeters) is loaded by a positive moment M = 800 Nm. Find: (a) the maximum tensile stress o, (x-direction is along the length of the beam); (b) the maximum compressive stress σ 20 20 100 20 Cross- section Beams: 5a The walkboard on a scaffold is 12 ft between supports. A 200 lb person is standing in the middle. The walkboard...
A beam of rectangular cross section 200 mm deep and 100 mm wide. If the beam is 3m long, simply supported at either end and carries point loads as shown in FIGURE 2 (on page 4). 2. SAN 1OAN R, FR 100mm FIG.2 (a) Calculate the maximum bending moment (b) Calculate the maximum stress in the beam (c) At the point of maximum stress sketch a graph of the stress distribution through the thickness of the beam, indicating which are...
STRUCTURAL ANALYSIS 1. Figure below are the cross section of the beam (aluminium) a) Find the moment of inertia of cross section I beam below. (10 point) 51mm 44 mm 3.5mm 3 mm 1.5 mm 35 mm 44 mm 9 mm 1.5 mm 3mm P/2 P/2 b) 0.15m 0.17 m 0.53m By Figure above are the beam with cross sectional in question [a). Find the maximum load (P that can be sustained by the beam. Given the ultimate tensile is...
A beam with a square cross-section is in a combined state of loading. There is an axial force N 350 kN acting in the x-direction, a torque T 50 kNm acting about the x-axis, and a bending moment M 40 kNm acting about the z-axis as shown. The side length of the beam is a 15.0 cm. B T a (a) Find the nomal stress due to N and M at points A and B. [10 marks] (b) Find the...
For a beam of rectangular cross section, height b, depth d, is simply supported (by pin joints at each end) over a span of length L and carries a point load W at mid span. Determine the distribution and maximum value of the normal stress.
2. A cantilever of 3 m length with a T-shaped cross-section is loaded by three ncentrated loads: W-80 N at the free end, W 30 N, and W,-60 N at a distance of from the free end. All loads are applied at the outer edges of the flange as icated in the sketch below. (a) Determine the maximum torsional shear stresses in the flange and in the web at distances 0.5 m and 2.5 m from the free end (sections...
