Three perfectly polarizing sheets are spaced 2 cmcm apart and in parallel planes. The transmission axis...
|

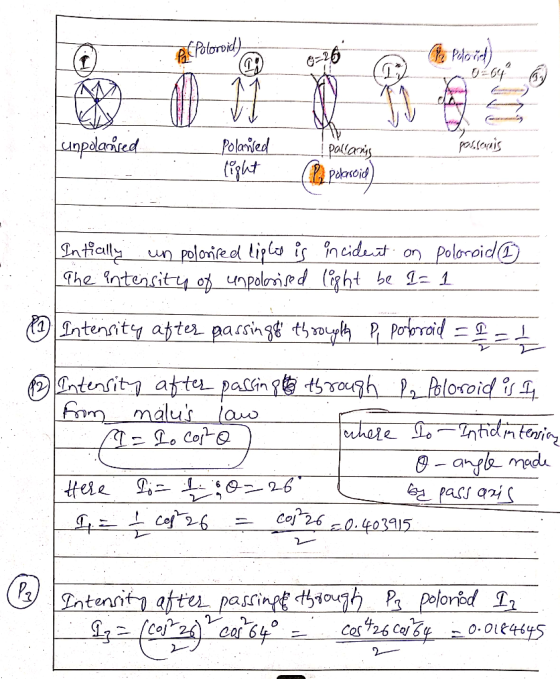

Three perfectly polarizing sheets are spaced 2 cmcm apart and in parallel planes. The transmission axis of the second sheet is 26 ∘∘ relative to the first one. The transmission axis of the third sheet is 90∘∘ relative to the first one. Unpolarized light impinges on the first polarizing sheet. |

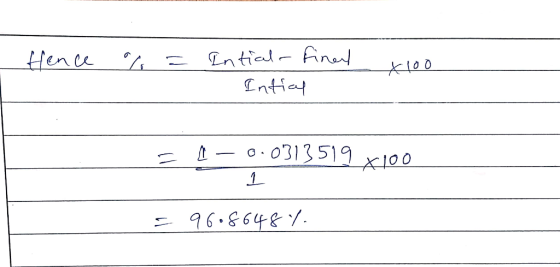

Part A What percent of this light is transmitted out through the third polarizer? Express your answer using two significant figures. |
Homework Answers
Add Answer to:
Three perfectly polarizing sheets are spaced 2 cmcm apart and in
parallel planes. The transmission axis...
Three perfectly polarizing sheets are spaced 2 cm apart and in parallel planes. The transmission axis...
Three perfectly polarizing sheets are spaced 2 cm apart and in parallel planes. The transmission axis of the second sheet is 30 degrees relative to the first one. The transmission axis of the third sheet is 90 degrees relative to the first one. Unpolarized light impinges on the first polarizing sheet. What percent of this light is transmitted out through the third polarizer?
Three polarizing filters are in parallel planes. The transmission axis of the second sheet is 30...
Three polarizing filters are in parallel planes. The transmission axis of the second sheet is 30 relative to the first one. Unpolarized light shines through the system of polarizers. What percent of the light is transmitted through the system of polarizers?
Three polarizing disks whose planes are parallel and centered on common axis. The directions of their...
Three polarizing disks whose
planes are parallel and centered on common axis. The directions of
their transmission axes relative to the vertical are respectively:
θ1 = 37o clockwise, θ2 = 25o counter-clockwise, and θ3 = 18o
clockwise. A beam of light polarized along the vertical is incident
onto the first polarizer with an intensity of I0 = 36.0 W/m².
Calculate the transmitted intensity through all three
polarizers.
7. For each of the three sheets of polarizing material shown in the...
A polarized light is incident on several polarizing disks whose planes are parallel and centred on...
A polarized light is incident on several polarizing disks whose planes are parallel and centred on common axis. Suppose that the transmission axis of the first polarizer is rotated 18° relative to the axis of polarization of the incident light, and that the transmission axis of each additional analyzer is rotated 18° relative to the transmission axis of the previous one. What is the minimum number of polarizer needed (whole number), so the transmitted light through all polarizing sheets has...
A polarized light is incident on several polarizing disks whose planes are parallel and centred on...
A polarized light is incident on several polarizing disks whose planes are parallel and centred on common axis. Suppose that the transmission axis of the first polarizer is rotated 22° relative to the axis of polarization of the incident light, and that the transmission axis of each additional analyzer is rotated 22° relative to the transmission axis of the previous one. What is the minimum number of polarizer needed (whole number), so the transmitted light through all polarizing sheets has...
A polarized light is incident on several polarizing disks whose planes are parallel and centered on...
A polarized light is incident on several polarizing disks whose planes are parallel and centered on common axis. Suppose that the transmission axis of the first polarizer is rotated 22° relative to the axis of polarization of the incident light, and that the transmission axis of each additional analyzer is rotated 22° relative to the transmission axis of the previous one. What is the minimum number of polarizer needed (whole number), so the transmitted light through all polarizing sheets has...
A polarized light is incident on several polarizing disks whose planes are parallel and centered on...
A polarized light is incident on several polarizing disks whose planes are parallel and centered on common axis. Suppose that the transmission axis of the first polarizer is rotated 21° relative to the axis of polarization of the incident light, and that the transmission axis of each additional analyzer is rotated 21° relative to the transmission axis of the previous one. What is the minimum number of polarizer needed (whole number), so the transmitted light through all polarizing sheets has...
9). A polarized light is incident on several polarizing disks whose planes are parallel and centered...
9). A polarized light is incident on several polarizing disks whose planes are parallel and centered on common axis. Suppose that the transmission axis of the first polarizer is rotated 18° relative to the axis of polarization of the incident light, and that the transmission axis of each additional analyzer is rotated 18° relative to the transmission axis of the previous one. What is the maximum number of polarizer needed (whole number), so the transmitted light through all polarizing sheets...
Three polarizing sheets are placed together such that the transmission axis of the second sheet is...
Three polarizing sheets are placed together such that the transmission axis of the second sheet is oriented at 25 deg to the axis of the first, whereas the transmission axis of the third sheet is oriented at 60 deg (in the same sense) to the axis of the first. What fraction of the intensity of an incident unpolarized beam is transmitted by the combination? Fraction of the intensity of an incident unpolarized beam transmitted =
4. Three polarizing disks whose planes are parallel and centered on common axis. The directions of...
4. Three polarizing disks whose planes are parallel and centered on common axis. The directions of their transmission axes relative to the vertical are respectively: 01 = 32° clockwise, 02 = 16° counter-clockwise, and 03 = 26° clockwise. A beam of light polarized along the vertical is incident onto the first polarizer with an intensity of Io 44.0 W/m2. Calculate the transmitted intensity through all three polarizers W/m2
Three polarizing disks whose
planes are parallel and centered on common axis. The directions of
their transmission axes relative to the vertical are respectively:
θ1 = 37o clockwise, θ2 = 25o counter-clockwise, and θ3 = 18o
clockwise. A beam of light polarized along the vertical is incident
onto the first polarizer with an intensity of I0 = 36.0 W/m².
Calculate the transmitted intensity through all three
polarizers.
7. For each of the three sheets of polarizing material shown in the...
Three polarizing sheets are placed together such that the transmission axis of the second sheet is oriented at 25 deg to the axis of the first, whereas the transmission axis of the third sheet is oriented at 60 deg (in the same sense) to the axis of the first. What fraction of the intensity of an incident unpolarized beam is transmitted by the combination? Fraction of the intensity of an incident unpolarized beam transmitted =
4. Three polarizing disks whose planes are parallel and centered on common axis. The directions of their transmission axes relative to the vertical are respectively: 01 = 32° clockwise, 02 = 16° counter-clockwise, and 03 = 26° clockwise. A beam of light polarized along the vertical is incident onto the first polarizer with an intensity of Io 44.0 W/m2. Calculate the transmitted intensity through all three polarizers W/m2
