EOCP 8.4 x(t) = e^-t/100 T>=0 1. Find the approximate maximum frequencies for given signal where...
EOCP 8.4
x(t) = e^-t/100 T>=0

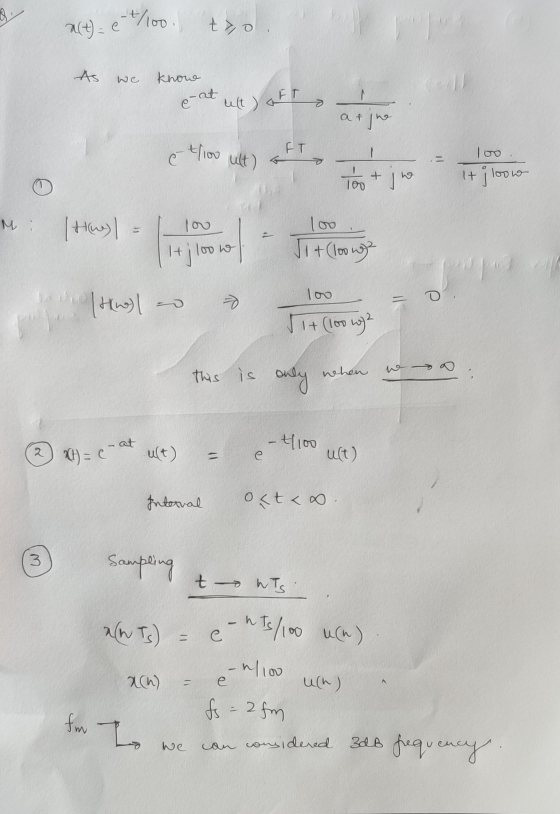

1. Find the approximate maximum frequencies for given signal where the magnitude spectra approach zero magnitude
2. Find appropriate time intervals where the signal approaches a value of zero outside these intervals
3. Sample the signal fs > 2fm and find x(n) for both where fm is the approximate maximum frequency after which the magnitude spectra is approximately zero
4. Sample the signal at fs< fm

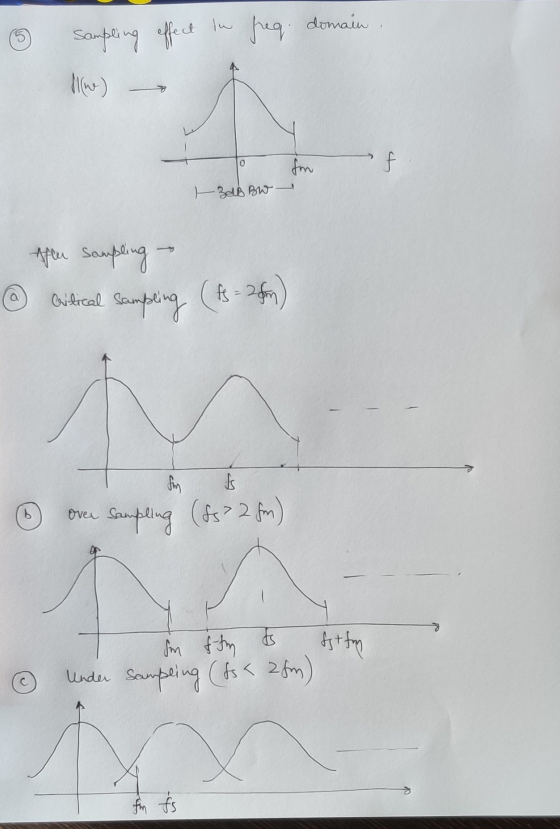

5. Look at the effect of sampling in the frequency domain for the signal
6. Look at the effect of sampling in the time domain
7. Draw a conclusion regarding observations on this problem
Homework Answers
Add Answer to:
EOCP 8.4
x(t) = e^-t/100 T>=0
1. Find the approximate maximum frequencies for given signal
where...
An angle-modulated signal is given by: x(t) = Acos(2fsnt + Bcos(2fm Tt)) Find the instantaneous frequency,...
An angle-modulated signal is given by: x(t) = Acos(2fsnt + Bcos(2fm Tt)) Find the instantaneous frequency, average signal power and maximum phase deviation if: A=10,B=5,fs=10000 Hz,fm=1000 Hz
Q: please solve using matlab code withe comment 1. Write the Matlab code to generate: x...
Q: please solve using matlab code withe comment 1. Write the Matlab code to generate: x = cos(w1*t) + cos(w2*t); where, w1=7; w2=23; t = [0:0.005:2] 2. Plot the signal using sub plot a. in time domain b. in frequency domain 3) Sample the signal under different sampling conditions: a. Ts<1/2fm b. Ts=1/2fm c. Ts>1/2fm 4). Multiple plot: the signal sampled under sampling condition and the signal x a. in time domain b. in frequency domain c. Label and Title...
An analog signal is given as below x(t) = 10sin 4rtt The signal is sampled by...
An analog signal is given as below x(t) = 10sin 4rtt The signal is sampled by two different frequencies f, = 1Hz, f, = 10Hz respectively, and the output are yı, Yz. (i) Sketch signal x(t) in the time domain. (3 marks) (ii) Sketch frequency spectrum of x(t). (3 marks) (iii) After sampling, the continuous signal is converted to a discrete signal. Draw the two discrete signals Yı, Y2: (4 marks) (iv) Discuss whether f1, f, can successfully sample the...
Consider a sampler which samples the continuous-time input signal x(t) at a sampling frequency fs =...
Consider a sampler which samples the continuous-time input signal x(t) at a sampling frequency fs = 8000 Hz and produces at its output a sampled discrete-time signal x$(t) = x(nTs), where To = 1/fs is the sampling period. If the sampled signal is passed through a unity-gain lowpass filter with cutoff frequency of fs/2, sketch the magnitude spectrum of the resulting signal for the following input signals: (a) x(t) = cos(6000nt). (b) x(t) = cos(12000nt). (c) x(t) = cos(18000nt).
Q2.) Consider the sampling of the continuous-time signal x(t) to obtain a discrete-time signal x[...
Q2.) Consider the sampling of the continuous-time signal x(t) to obtain a discrete-time signal x[n (1)-10cos(1000m + π/3) + 20cos(2000m + π/6). 110points! ], where x a) What is the maximum sampling interval (minimum sampling frequency) that could be used to ensure an aliasing free sampling of this signal? b) Plot the spectrum of the sampled signal if x() is sampled using a sampling frequency of (i) 2500 Hz (ii) 1800 Hz and state whether there will be an aliasing...
1. A signal, x(t) = 2 cos(21fmt), is applied to the ideal sampling circuit in the...
1. A signal, x(t) = 2 cos(21fmt), is applied to the ideal sampling circuit in the Figure below (left) where fm = 1 kHz. A sampling function, p(t), whose characteristic is given in the Figure below (right), is used when Ts = 0.25 ms. a) (5p) Plot the sampled signal, xs(t), in time domain for at least one period. b) [10p] Express the Fourier transform of sampled signal, xs(t), denoted by Xs , in frequency domain. c) [10p] Plot the...
10. Find the Fourier transform of a continuous-time signal x(t) = 10e Su(t). Plot the magnitude...
10. Find the Fourier transform of a continuous-time signal x(t) = 10e Su(t). Plot the magnitude spectrum and the phase spectrum. If the signal is going to be sampled, what should be the minimum sampling frequency so that the aliasing error is less than 0.1 % of the maximum original magnitude at half the sampling frequency. 11. A signal x(t) = 5cos(2nt + 1/6) is sampled at every 0.2 seconds. Find the sequence obtained over the interval 0 st 3...
Please finish these questions. Thank you Given find the Fourier transform of the following: (a) e dt 2T(2 1) 4 cos (2t) (Using properties of Fourier Transform to find) a) Suppose a signal m(t) is giv...
Please finish these questions. Thank you
Given find the Fourier transform of the following: (a) e dt 2T(2 1) 4 cos (2t) (Using properties of Fourier Transform to find) a) Suppose a signal m(t) is given by m()-1+sin(2 fm) where fm-10 Hz. Sketch the signal m(t) in time domain b) Find the Fourier transform M(jo) of m(t) and sketch the magnitude of M(jo) c) If m(t) is amplitude modulated with a carrier signal by x(t)-m(t)cos(27r f,1) (where fe-1000 Hz), sketch...
Find the instantaneous frequency of the next signal at t = 4. (a) x(t) = 10...
Find the instantaneous frequency of the next signal at t = 4. (a) x(t) = 10 cos[20xt+10 sin(t/4)) (b) x(t) = 262719) () X(t)=10[cos(2nt) cos(atº/4) + sin(24t) sin( nt/ 4)] Suppose that the information signal is as shown in the following figure. When each modulating this signal using 100KHz as the carrier frequency, find the frequency shift and phase shift when FM is modulated with 5,=10. What is the maximum frequency shift and maximum phase shift? 0.5+ -0.5 ost Suppose...
1. An analog signal \(\mathrm{x}(\mathrm{t})\) contains frequencies from 0 up to \(10 \mathrm{kHz}\). You can assume...
1. An analog signal \(\mathrm{x}(\mathrm{t})\) contains frequencies from 0 up to \(10 \mathrm{kHz}\). You can assume any arbitrary spectrum for this signal. (Note that this signals also has frequencies from 0 to \(-10 \mathrm{KHz} .)\) a) Draw the frequency spectrum of the signal after it has been sampled with a sampling frequency \(\mathrm{F}_{\mathrm{s}}=25 \mathrm{kHz}\) b) What range of sampling frequencies allows exact reconstruction of this signal from its samples? c) How is the original signal reconstructed from the sampled signal?...
An angle-modulated signal is given by: x(t) = Acos(2fsnt + Bcos(2fm Tt)) Find the instantaneous frequency, average signal power and maximum phase deviation if: A=10,B=5,fs=10000 Hz,fm=1000 Hz
An analog signal is given as below x(t) = 10sin 4rtt The signal is sampled by two different frequencies f, = 1Hz, f, = 10Hz respectively, and the output are yı, Yz. (i) Sketch signal x(t) in the time domain. (3 marks) (ii) Sketch frequency spectrum of x(t). (3 marks) (iii) After sampling, the continuous signal is converted to a discrete signal. Draw the two discrete signals Yı, Y2: (4 marks) (iv) Discuss whether f1, f, can successfully sample the...
Consider a sampler which samples the continuous-time input signal x(t) at a sampling frequency fs = 8000 Hz and produces at its output a sampled discrete-time signal x$(t) = x(nTs), where To = 1/fs is the sampling period. If the sampled signal is passed through a unity-gain lowpass filter with cutoff frequency of fs/2, sketch the magnitude spectrum of the resulting signal for the following input signals: (a) x(t) = cos(6000nt). (b) x(t) = cos(12000nt). (c) x(t) = cos(18000nt).
Q2.) Consider the sampling of the continuous-time signal x(t) to obtain a discrete-time signal x[n (1)-10cos(1000m + π/3) + 20cos(2000m + π/6). 110points! ], where x a) What is the maximum sampling interval (minimum sampling frequency) that could be used to ensure an aliasing free sampling of this signal? b) Plot the spectrum of the sampled signal if x() is sampled using a sampling frequency of (i) 2500 Hz (ii) 1800 Hz and state whether there will be an aliasing...
1. A signal, x(t) = 2 cos(21fmt), is applied to the ideal sampling circuit in the Figure below (left) where fm = 1 kHz. A sampling function, p(t), whose characteristic is given in the Figure below (right), is used when Ts = 0.25 ms. a) (5p) Plot the sampled signal, xs(t), in time domain for at least one period. b) [10p] Express the Fourier transform of sampled signal, xs(t), denoted by Xs , in frequency domain. c) [10p] Plot the...
10. Find the Fourier transform of a continuous-time signal x(t) = 10e Su(t). Plot the magnitude spectrum and the phase spectrum. If the signal is going to be sampled, what should be the minimum sampling frequency so that the aliasing error is less than 0.1 % of the maximum original magnitude at half the sampling frequency. 11. A signal x(t) = 5cos(2nt + 1/6) is sampled at every 0.2 seconds. Find the sequence obtained over the interval 0 st 3...
Please finish these questions. Thank you
Given find the Fourier transform of the following: (a) e dt 2T(2 1) 4 cos (2t) (Using properties of Fourier Transform to find) a) Suppose a signal m(t) is given by m()-1+sin(2 fm) where fm-10 Hz. Sketch the signal m(t) in time domain b) Find the Fourier transform M(jo) of m(t) and sketch the magnitude of M(jo) c) If m(t) is amplitude modulated with a carrier signal by x(t)-m(t)cos(27r f,1) (where fe-1000 Hz), sketch...
Find the instantaneous frequency of the next signal at t = 4. (a) x(t) = 10 cos[20xt+10 sin(t/4)) (b) x(t) = 262719) () X(t)=10[cos(2nt) cos(atº/4) + sin(24t) sin( nt/ 4)] Suppose that the information signal is as shown in the following figure. When each modulating this signal using 100KHz as the carrier frequency, find the frequency shift and phase shift when FM is modulated with 5,=10. What is the maximum frequency shift and maximum phase shift? 0.5+ -0.5 ost Suppose...
