A uniform magnetic field makes an angle of 35∘∘ with the axis of a circular coil...
A uniform magnetic field makes an angle of 35∘∘ with the axis of a circular coil of wire. The coil has a radius of 6 cmcm and 400 turns. The magnitude of the magnetic field decreases at a rate of 15 T/sT/s .
What is the magnitude of the emf induced in the coil?
Homework Answers

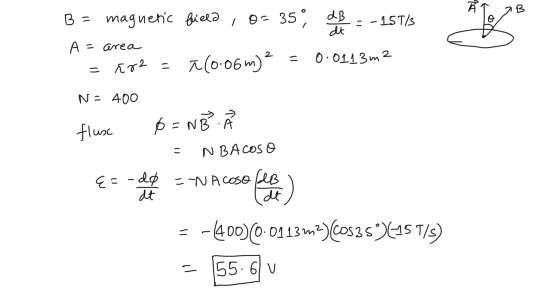

Find the flux through the coil and use Faraday’s laws of
electromagnetic induction to find the EMF induced in the coil as
shown below
