A concave mirror is cut so as to have a radius of 36 cm. An object...

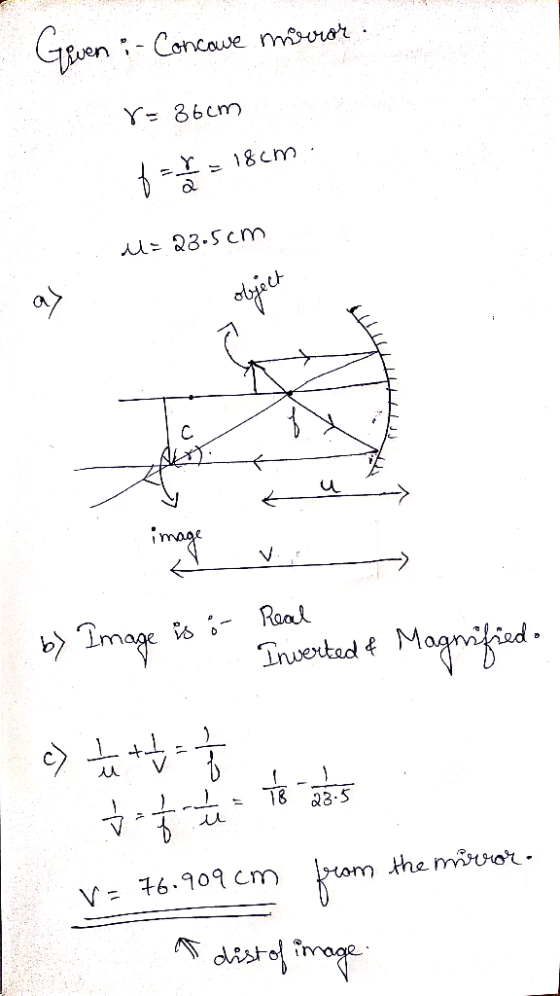

A concave mirror is cut so as to have a radius of 36 cm. An object is placed 23.5 cm in front of the mirror, along its axis.
a). Draw a ray tracing diagram where you show both the object and its image. Make sure to pay attention to the distances mentioned so as to locate the object correctly.
b. Describe the image formed in terms of its orientation, size, and location.
c. Use the mirror equations to find a numerical value for the location of the image.
Homework Answers
Add Answer to:
A concave mirror is cut so as to have a radius of 36 cm. An
object...
