Question

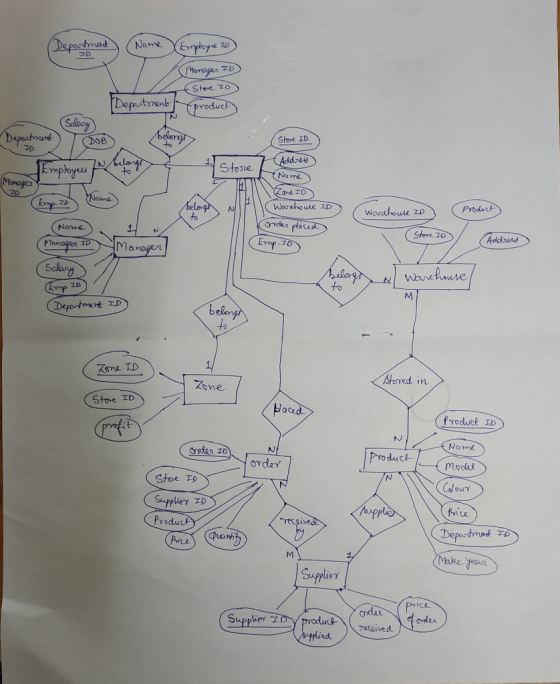

CREATE an ER diagram for Home Depot. You should have a notion for products (models, features, serial number, description, etc …), suppliers, warehouses, contractors, employees, managers and anything else that you believe Home Depot would need to use to run their business.

1. Be detailed!
2. You MUST specify multiplicities -> many-many, many-one, one-one
3. Be sure to specify keys

Our database should be able to model the following data:

• Employees – come up with pertinent data to store for an employee based on examples we have seen in class. (ideas: Address, date of birth, hire date, salary, etc …)
• Managers – a special case of employees (what makes a manager different from an employee) You need to have a way to list the employees that are managed by a manager. You also need to be able to model which manager manages which department.
• Departments – you need to model which employees work in which department.
• Store – a physical store location – each store will have its own inventory etc …
• Products – need a price. We can assume that each product will have a single price
• Orders – needs to be associated with store. A single store can have multiple orders. An Order should have products and quantities. Has an order shipped yet?
• Suppliers – Parts need suppliers – where will the product come from. We can assume to simplify that each product is only supplied by a single supplier at a given price.
• Be creative and thoughtful – go beyond what I have listed here.
• Come up with appropriate attributes

Recall that each Entity Set should have a key.

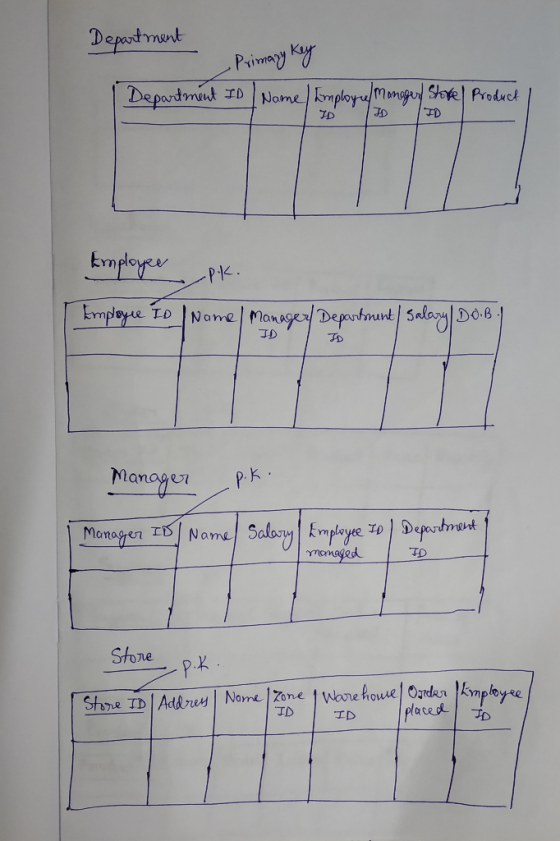

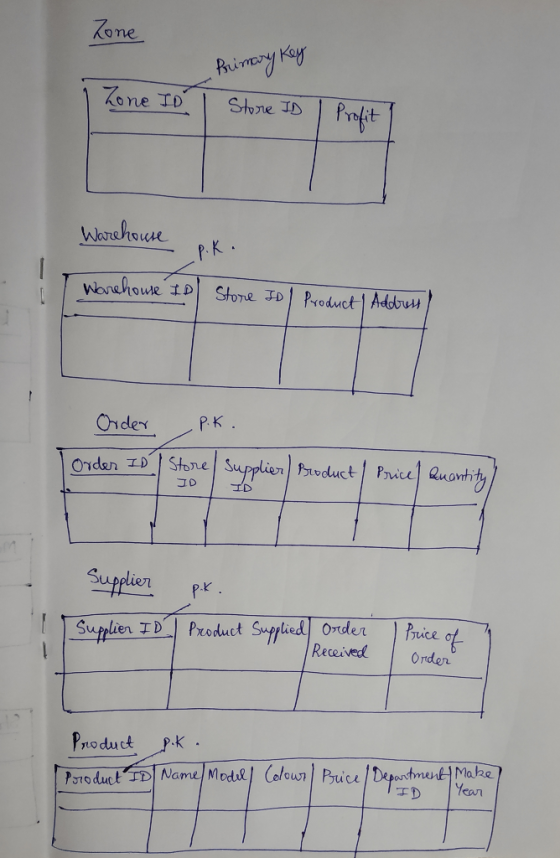

Convert your ER diagram into a set of Tables (Relations)

Answer 1
