A model test is performed to determine the flight characteristics of a Frisbee. Dependent parameters are...

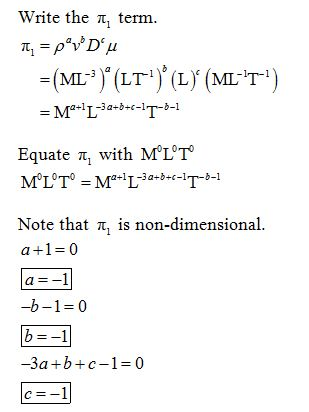

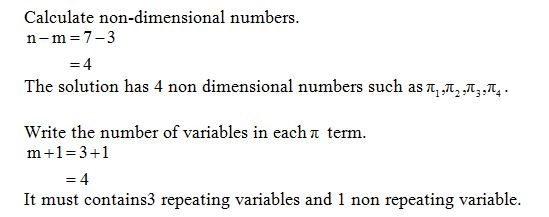

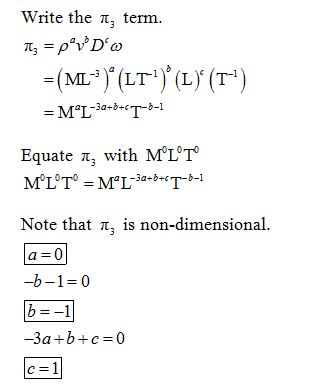

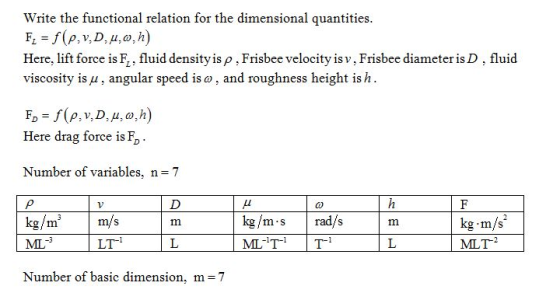

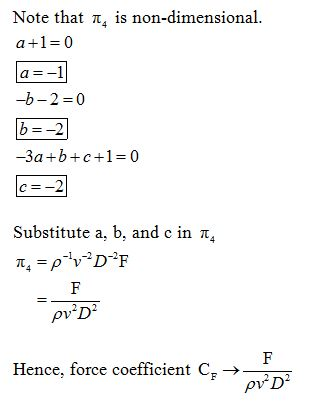

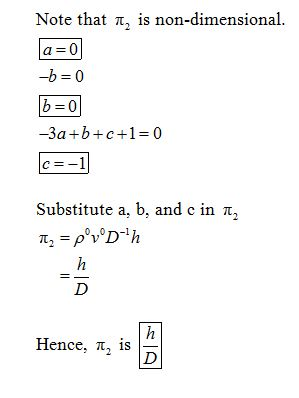

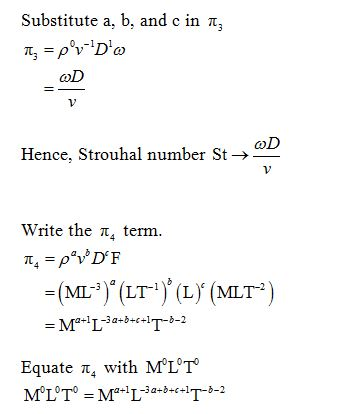

A model test is performed to determine the flight characteristics of a Frisbee. Dependent parameters are the drag force, D, and the lift force, L. The independent parameters are the diameter, d; speed, V; and angular velocity, w; as well as density and viscosity. Determine suitable dimensionless parameters and express the functional dependence among them
