94) See Figure 94. Challenging exercise? Given a 9.80 kOhm potentiometer, V_AC=100.0 volts, V_BC= 16.0 volts...

Question

Question

94) See Figure 94. Challenging exercise? Given a 9.80 kOhm potentiometer, V_AC=100.0 volts, V_BC= 16.0 volts...

94) See Figure 94. Challenging exercise? Given a 9.80 kOhm potentiometer, V_AC=100.0 volts, V_BC= 16.0 volts and load current is 4.200 mAmps. Determine R_AB Ohms, R_BC Ohms, and power (watts) dissipated by the potentiometer. ans:3

engineering Electrical-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

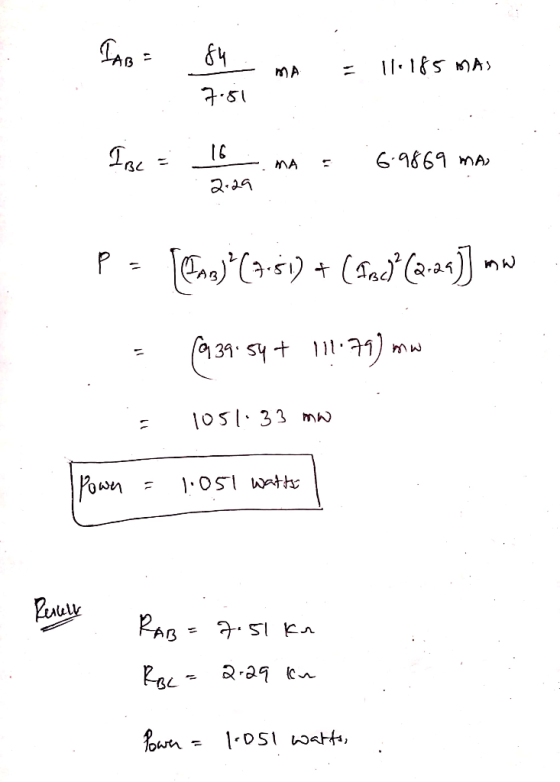

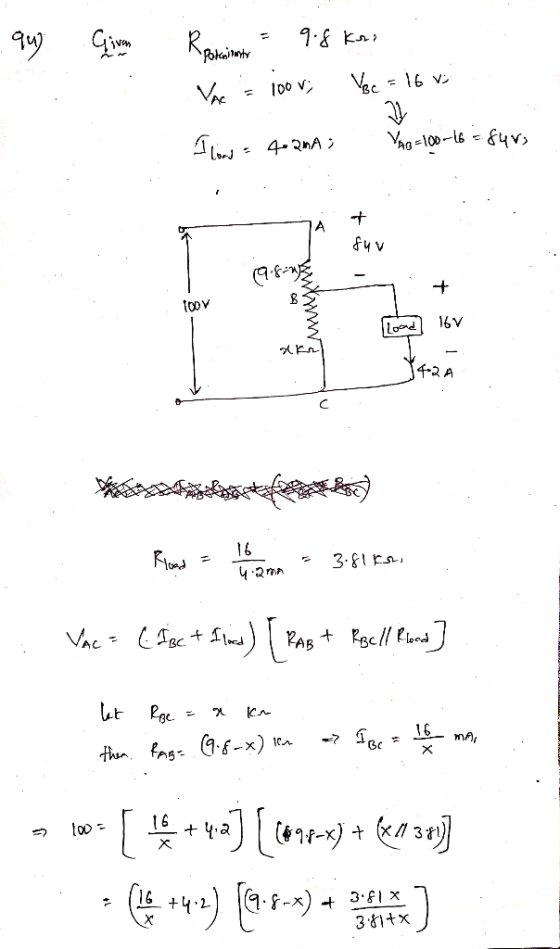

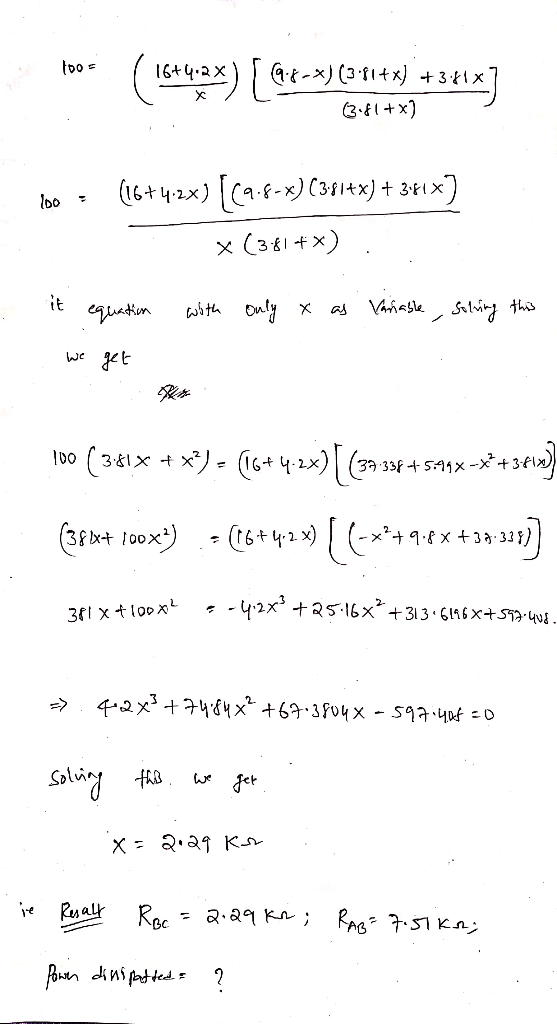

Answer #1

Add a comment

Answer 2
