A point load q1 = 0.2 mC is located at the origin. Another charge q2 is...

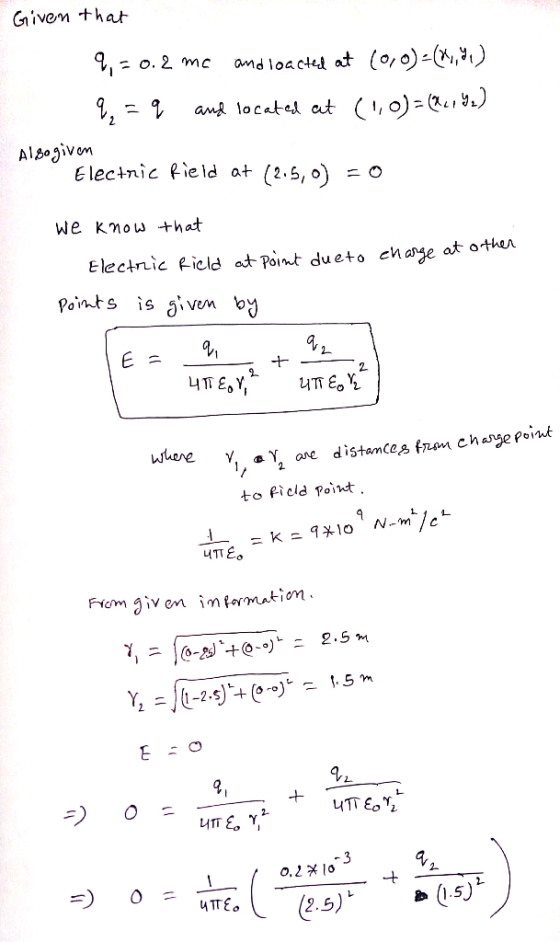

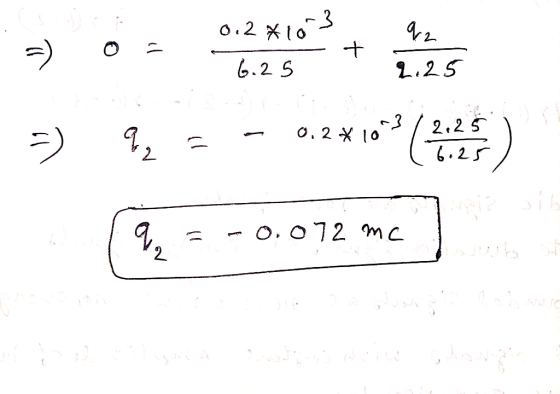

A point load q1 = 0.2 mC is located at the origin. Another charge q2 is present on the x-axis at x = 1 m. If the resulting electric field is zero at x = 2.5 m, find the value and the sign of q2.
Homework Answers
Add Answer to:
A point load q1 = 0.2 mC is located at the origin.
Another charge q2 is...
A charge Q1=45.5nC is located at the origin. A negative charge Q2=-7.5nC is located on the...
A charge Q1=45.5nC is located at the origin. A negative charge Q2=-7.5nC is located on the positive x-axis p=5cm from the origin. Calculate the location , x, on the x-axis, in centimeters, where the electric field is equal to zero.
Charge q1 = -2.5 nC is located at the coordinate system origin, while charge q2 =...
Charge q1 = -2.5 nC is located at the coordinate system origin, while charge q2 = -2.5 nC is located at (a, 0), where a = 1.3 m. The point P has coordinates (a, b), where b = 2.9 m. 1. At the point P, find the x-component of the electric field Ex in units of N/C. 2. At the point P, find the y-component of the electric field Ey in units of N/C.
4) A charge (q1 = -2.00 μC) is placed at the origin and another charge (q2...
4) A charge (q1 = -2.00 μC) is placed at the origin and another charge (q2 = + 9.00 μC) is placed on x-axis at x = + 1.00 m. Determine the point (other than infinity) on x-axis at which the net electric field is zero. (Answer in meters)
A point charge q1 = 10.0 nC is located at the origin and another point charge...
A point charge q1 = 10.0 nC is located at the origin and another point charge q2 = −5.0 nC is located at position (6.0, 0 cm). (a) Find the potential at (3.0 cm, 0). (b) Find the potential at (0, 3.0 cm). (c) Find the potential at (6.0 cm, 3.0 cm). (d) At what position(s) along the x-axis would the potential equal zero? (e) Sketch the electric field and equipotential lines surrounding the charges and note the approximate location(s)...
A positive charge Q1 = 39 nC is located at the origin. Anegative charge Q2...
A positive charge Q1 = 39 nC is located at the origin. A
negative charge Q2 = -9.5 nC is located on the positive x-axis p =
9 cm from the origin.Calculate the location, x, on the x-axis, in centimeters, where
the electric field is equal to zero.
A positive charge Q1=32 nC is located at the origin. A negative charge Q2=-6.5 nC is located on the positive x-axis p = 19 cm from the origin.
A positive charge Q1=32 nC is located at the origin. A negative charge Q2=-6.5 nC is located on the positive x-axis p = 19 cm from the origin. Part (a) Choose the correct relation to indicate the continuous region on the x-axis that includes a point where the electric field is zero.Part (b) Calculate the location, x, on the x-axis, in centimeters, where the electric field is equal to zero.
A point charge q1-3.8 C is located at the origin of a co-ordinate system. Another point charge q2 = 7.5 pC is located along the x-axis at a distance x2 8.1 cm from q1 (91 1- 1) What is F12,x, the val...
A point charge q1-3.8 C is located at the origin of a co-ordinate system. Another point charge q2 = 7.5 pC is located along the x-axis at a distance x2 8.1 cm from q1 (91 1- 1) What is F12,x, the value of the x-component of the force that q1 exerts on q2? -39.09 Submit 2) q1 Charge qz is now displaced a distance y2 3.9 cm in the positive y-direction. What is the new value for the x-component of...
A positive charge Q1=43.5 nC is located at the origin. A negative charge Q2 =-8.5 nC is located on the positive x-axis p = 18 cm from the origin.
A positive charge Q1=43.5 nC is located at the origin. A negative charge Q2 =-8.5 nC is located on the positive x-axis p = 18 cm from the origin. Part (a) Choose the correct relation to indicate the continuous region on the x axis that includes a point where the electnc field is x>p Part (b) Calculate the location, r, on the x-axis, in centimeters, where the electric field is equal to zero.
A charge (q1 = -2.00 μC) is placed at the origin and another charge (q2 =...
A charge (q1 = -2.00 μC)
is placed at the origin and another charge
(q2 = + 9.00 μC) is placed on
x-axis at x = + 1.00 m. Determine the point (other than infinity)
on x-axis at which the net electric field is zero.
I posted this question earlier and WebAssign said the answer,
.47 meters, was wrong. I will put the incorrect work down below and
if anyone can get the correct answer that would be great!
4)the...
A point charge with charge q1 = +5.00 nC is fixed at the origin. A second point charge with charge q2 =-7.00 nC is located on the x axis at x 7.00 m
A point charge with charge q1 = +5.00 nC is fixed at the origin. A second point charge with charge q2 =-7.00 nC is located on the x axis at x 7.00 m. 1) Where along the x axis will a third point charge of q = +2.00 nC charge need to be for the net electric force on it due to the two fixed charges to be equal to zero? (Express your answer to three significant figures.)
A positive charge Q1 = 39 nC is located at the origin. A
negative charge Q2 = -9.5 nC is located on the positive x-axis p =
9 cm from the origin.Calculate the location, x, on the x-axis, in centimeters, where
the electric field is equal to zero.
A point charge q1-3.8 C is located at the origin of a co-ordinate system. Another point charge q2 = 7.5 pC is located along the x-axis at a distance x2 8.1 cm from q1 (91 1- 1) What is F12,x, the value of the x-component of the force that q1 exerts on q2? -39.09 Submit 2) q1 Charge qz is now displaced a distance y2 3.9 cm in the positive y-direction. What is the new value for the x-component of...
A charge (q1 = -2.00 μC)
is placed at the origin and another charge
(q2 = + 9.00 μC) is placed on
x-axis at x = + 1.00 m. Determine the point (other than infinity)
on x-axis at which the net electric field is zero.
I posted this question earlier and WebAssign said the answer,
.47 meters, was wrong. I will put the incorrect work down below and
if anyone can get the correct answer that would be great!
4)the...
