Given the 4-bus power system below: The sequence parameters are shown below:
For reviewer purpose,

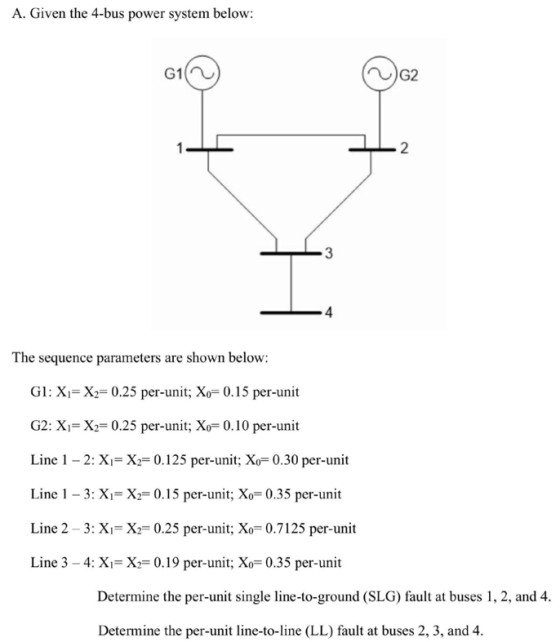

A. Given the 4-bus power system below:
The sequence parameters are shown below:
G1: X_{1} = X_{2} = 0.25 per-unit; X_{0} = 0.15 per-unit
G2: X_{1} = X_{2} = 0.25 per-unit; X_{0} = 0.1 per-unit
Line 1-2: X_{1} = X_{2} = 0.125 per-unit; X_{0} = 0.3 per-unit
Line 1-3: X_{1} = X_{2} = 0.15 per-unit; X_{0} = 0.35 per-unit
Line 2-3: X_{1} = X_{2} = 0.25 per-unit; X_{0} = 0.7125 per-unit
Line 3-4: X_{1} = X_{2} = 0.19 per-unit; X_{0} = 0.35 per-unit
Determine the per-unit single line-to-ground (SLG) fault at buses 1, 2, and 4.
Determine the per-unit line-to-line (LL) fault at buses 2, 3, and 4.
