Assume that a 1.20-kg ball is thrown solely by the action of the forearm, which rotates...

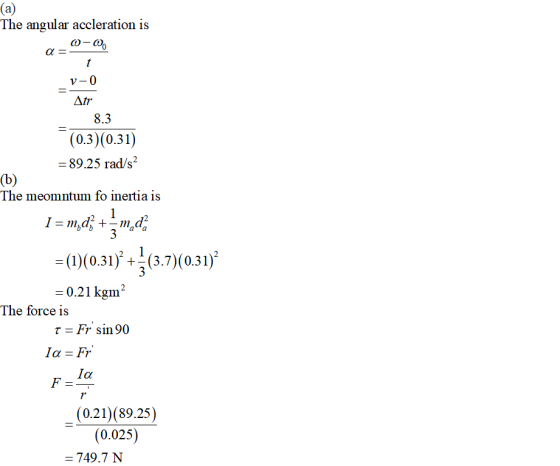

Assume that a 1.20-kg ball is thrown solely by the action of the forearm, which rotates about the elbow joint under the action of the triceps muscle, the figure. The ball is accelerated uniformly from rest to 8.3 m/s in 0.30 s , at which point it is released. Assume that the forearm has a mass of 3.7 kg and rotates like a uniform rod about an axis at its end. Neglect gravity. part a Calculate the angular acceleration of the arm. part b Calculate the force required of the triceps muscle.
Homework Answers
Add Answer to:
Assume that a 1.20-kg ball is thrown solely by the action of the
forearm, which rotates...
Assume that a 1.30-kg ball is thrown solely by the action of the forearm, which rotates...
Assume that a 1.30-kg ball is thrown solely by the action of the
forearm, which rotates about the elbow joint under the action of
the triceps muscle, the figure. The ball is accelerated uniformly
from rest to 8.3 m/s in 0.30 s , at which point it is released.
Assume that the forearm has a mass of 3.7 kg and rotates like a
uniform rod about an axis at its end.
A) Calculate the angular acceleration of the arm.
B)Calculate...
So lost!!!!! Help! Problem: Assume that a 1.00 kg ball is thrown solely by the action of the forearm, which rotates ab...
So lost!!!!! Help! Problem: Assume that a 1.00 kg ball is thrown solely by the action of the forearm, which rotates about the elbow joint under the action of the triceps muscle, as shown in the figure. the ball is accelerated uniformly from rest to 10.0 m/s in .350 s, at which point it is released. The distance from the elbow to the ball is 31 cm. there is 2.5 cm between triceps muscle and axis of rotation(at elbow). A)...
The diagram above shows a side view of a person’s arm. The forearm and hand together...
The diagram above shows a side view of a person’s arm. The
forearm and hand together weigh 19N (WFH = 19N). The
center of gravity at point T is located 24cm from
the elbow joint. The person is holding a bowling ball 38cm from the
elbow and the ball weighs 47N (WB = 47N).
(a) Calculate the torque produced by the weight of the forearm
and hand about the elbow joint. Include the direction of the
torque.
(b) Calculate the...
QUESTION 2 The drawing shows a person mass-59 kg. doing push-ups. Find the force exerted by...
QUESTION 2 The drawing shows a person mass-59 kg. doing push-ups. Find the force exerted by the floor on each foot, assuming that the person holds this position. Express your answer is Sl units with 3 or more significant figures 0.90 m 1.50 m QUESTION 3 A uniform lunch tray is being held in one hand, as the drawing illustrates. The mass of the tray is 0.11 kg. On the tray is a 1 kg plate of food and a...
How much force (in N) must the biceps muscle exert when a 25.0 kg mass is...
How much force (in N) must the biceps muscle exert when a 25.0 kg mass is held in the hand in a stationary position when the arm is 17.4° below the horizontal? Assume the mass of the forearm is 2.46 kg. Distances relative to the elbow joint are reb = 5.12 cm; recg = 16.5 cm; ren = 37.5 cm where the distances are: eb = elbow—biceps; ecg = elbow—forearm center of gravity; eh = elbow-hand. A marble column 0.890...
Find the elbow joint reaction force (magnitude and direction) and the elbow flexor muscle force for...
Find the elbow joint reaction force (magnitude and direction) and the elbow flexor muscle force for the instant described below. Assume the forearm, hand, and ball to be a single rigid body. This rigid body has a mass of 3 kg; it has a mass moment of inertia about its center of mass of 0.018 kg*m2 ; its center of mass is 19 cm from the center of the elbow joint. The rigid body has an angular acceleration (α) of...
QUESTION 1 A wrench is used to loosen a nut as shown below by applying a...
QUESTION 1 A wrench is used to loosen a nut as shown below by applying a force 13 N. Determine the torque (magnitude and direction:+for CCW and for CW) about the nut joint Express your answer in Sl units with 3 or more significant figures 0.28 m QUESTION 2 The drawing shows a person mass 59 kg. doing push-ups. Find the force exerted by the floor on each foot assuming that the person holds this position Express your answer in...
Assume that a 1.30-kg ball is thrown solely by the action of the
forearm, which rotates about the elbow joint under the action of
the triceps muscle, the figure. The ball is accelerated uniformly
from rest to 8.3 m/s in 0.30 s , at which point it is released.
Assume that the forearm has a mass of 3.7 kg and rotates like a
uniform rod about an axis at its end.
A) Calculate the angular acceleration of the arm.
B)Calculate...
The diagram above shows a side view of a person’s arm. The
forearm and hand together weigh 19N (WFH = 19N). The
center of gravity at point T is located 24cm from
the elbow joint. The person is holding a bowling ball 38cm from the
elbow and the ball weighs 47N (WB = 47N).
(a) Calculate the torque produced by the weight of the forearm
and hand about the elbow joint. Include the direction of the
torque.
(b) Calculate the...
QUESTION 2 The drawing shows a person mass-59 kg. doing push-ups. Find the force exerted by the floor on each foot, assuming that the person holds this position. Express your answer is Sl units with 3 or more significant figures 0.90 m 1.50 m QUESTION 3 A uniform lunch tray is being held in one hand, as the drawing illustrates. The mass of the tray is 0.11 kg. On the tray is a 1 kg plate of food and a...
How much force (in N) must the biceps muscle exert when a 25.0 kg mass is held in the hand in a stationary position when the arm is 17.4° below the horizontal? Assume the mass of the forearm is 2.46 kg. Distances relative to the elbow joint are reb = 5.12 cm; recg = 16.5 cm; ren = 37.5 cm where the distances are: eb = elbow—biceps; ecg = elbow—forearm center of gravity; eh = elbow-hand. A marble column 0.890...
QUESTION 1 A wrench is used to loosen a nut as shown below by applying a force 13 N. Determine the torque (magnitude and direction:+for CCW and for CW) about the nut joint Express your answer in Sl units with 3 or more significant figures 0.28 m QUESTION 2 The drawing shows a person mass 59 kg. doing push-ups. Find the force exerted by the floor on each foot assuming that the person holds this position Express your answer in...
