A spherical capacitor is to be constructed by using a metal sphere of radius b as...
A spherical capacitor is to be constructed by using a metal sphere of radius b as one plate and a concentric spherical metal shell of radius a as the other plate. The inner radius of the shell is a > b.

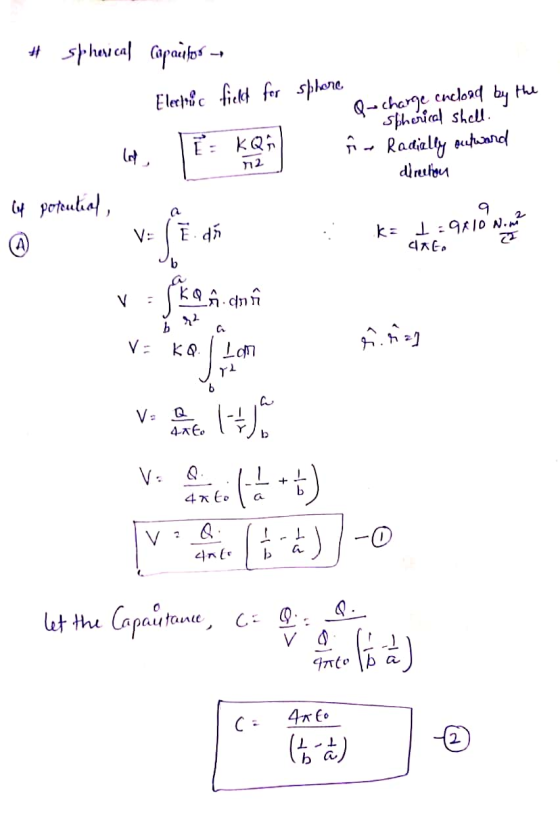

A) What is the capacitance of the device in terms of a and b?

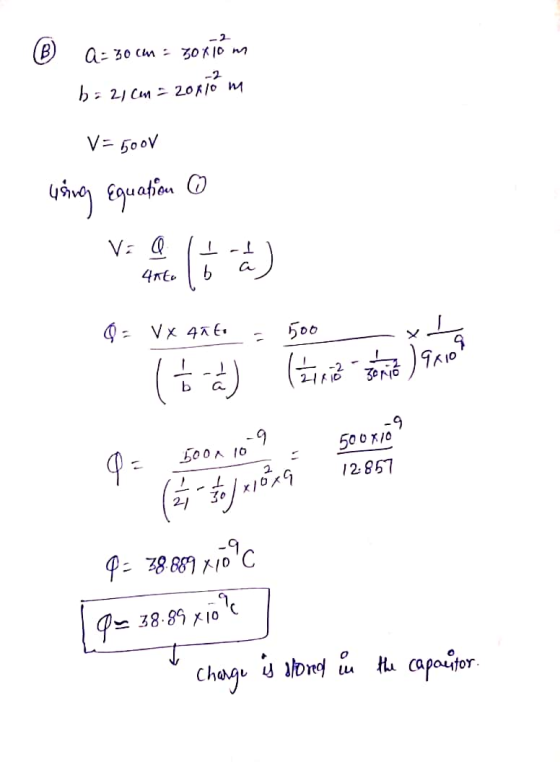

B) How much charge is stored in the capacitor if a = 30 cm, b = 21 cm, if the potential difference is 500V?
Homework Answers
Add Answer to:
A spherical capacitor is to be constructed by using a metal
sphere of radius b as...
An air-filled spherical capacitor is constructed with an inner-shell radius of 6.50 cm and an outer-shell radius of 12.6 cm
An air-filled spherical capacitor is constructed with an inner-shell radius of 6.50 cm and an outer-shell radius of 12.6 cm (a) Calculate the capacitance of the device. (b) What potential difference between the spheres results in a 4.00 μC charge on the capacitor? (c) What If? What would be the length (in cm) of a cylindrical air-filled capacitor with the same inner and outer radii as the spherical capacitor if it were to have the same capacitance as the spherical capacitor?
A spherical capacitor is formed from two concentric, spherical conducting shells separated by a vacuum.
A spherical capacitor is formed from two concentric, spherical conducting shells separated by a vacuum. The inner sphere has a radius of 15.0 cm and the capacitance of the device is 116 pF. a) What is the radius of the outer sphere? b) If the potential difference between the two spheres is 220 V, how much energy is stored in this capacitor?
A capacitor is constructed using concentric conducting spheres. The inner sphere has radius a, the outer...
A capacitor is constructed using concentric conducting spheres. The inner sphere has radius a, the outer sphere (a thin-walled shell) has radius b. 1. Show that the capacitance is ab/k(b − a) when the space between the inner and outer spheres is empty. Start with the result from Gauss’s law for the field outside a uniform spherical charge distribution (derive the potenital difference between the spheres). 2. What is the capacitance if a = 0.1 m and b = 0.103...
A concentric spherical capacitor is charged to -Q on the outer sphere and +Q on the...
A concentric spherical capacitor is charged to -Q on the outer
sphere and +Q on the inner sphere. The inner sphere is solid, with
radius=a, while the outer sphere is hollow, with radius=b. Between
the two spheres is a vaccum.
a) Find the potential difference between r=a and r=b and thus
find the capacitance of this system directly.
b) Assuming the outer shell is grounded (ie, at zero potential)
use to find the
capacirtance.
c) Using the energy density in...
(10%) Problem 8: A spherical capacitor consists of a single conducting sphere of radius R =...
(10%) Problem 8: A spherical capacitor consists of a single conducting sphere of radius R = 12 cm that carries a positive charge Q = 65 nC. The capacitance for this spherical capacitor is given by the equation C-4jEjR 14% Part (a) Write an equation for the energy stored in a spherical capacitor when a charge Q is placed on the capacitor Write your cqu ation in terms of R, Q, and eg Grade Summarv Deduction:s Potential 0% 100% 7...
A capacitor is formed from two concentric spherical conducting shells separated by vacuum. The inner sphere...
A capacitor is formed from two concentric spherical conducting shells separated by vacuum. The inner sphere has radius 12.5 cm , and the outer sphere has radius 14.5 cm . A potential difference of 120 V is applied to the capacitor. A. What is the energy density at r= 12.6 cm , just outside the inner sphere? B. What is the energy density at r = 14.4 cm , just inside the outer sphere? C. For a parallel-plate capacitor the...
A capacitor is formed from two concentric spherical conducting shells separated by vacuum. The inner sphere...
A capacitor is formed from two concentric spherical conducting shells separated by vacuum. The inner sphere has radius 10.5 cm , and the outer sphere has radius 16.5 cm . A potential difference of 130 V is applied to the capacitor. a.What is the energy density at r= 10.6 cm , just outside the inner sphere? b.What is the energy density at r = 16.4 cm , just inside the outer sphere? c.For a parallel-plate capacitor the energy density is...
A capacitor is formed from two concentric spherical conducting shells separated by vacuum. The inner sphere...
A capacitor is formed from two concentric spherical conducting shells separated by vacuum. The inner sphere has radius 12.5 cm , and the outer sphere has radius 16.0 cm . A potential difference of 100 V is applied to the capacitor. Part A What is the energy density at r= 12.6 cm , just outside the inner sphere? Part B What is the energy density at r = 15.9 cm , just inside the outer sphere? Part C For a...
A metal sphere with radius ra = 1.30 cm is supported on an insulating stand at...
A metal sphere with radius ra = 1.30 cm is supported on an insulating stand at the center of a hollow, metal, spherical shell with radius rb = 9.00 cm . Charge +q is put on the inner sphere and charge −q on the outer spherical shell. The magnitude of q is chosen to make the potential difference between the spheres 430 V , with the inner sphere at higher potential. Part A Calculate q. Part B Are the electric...
A spherical capacitor has a spherical inner plate with radius a and outer plate with radius...
A spherical capacitor has a spherical inner plate with radius a
and outer plate with radius b. The charge on the inner plate is +Q
and on the outer plate it is -Q. We have filled a cone shaped
region of angle θ (0 ≤ θ ≤ π) with a dielectric with constant κ.
The dielectric fills the entire volume between the two spheres
inside the cone. You may neglect any fringing effects between the
dielectric and the vacuum (dielectric...
A concentric spherical capacitor is charged to -Q on the outer
sphere and +Q on the inner sphere. The inner sphere is solid, with
radius=a, while the outer sphere is hollow, with radius=b. Between
the two spheres is a vaccum.
a) Find the potential difference between r=a and r=b and thus
find the capacitance of this system directly.
b) Assuming the outer shell is grounded (ie, at zero potential)
use to find the
capacirtance.
c) Using the energy density in...
(10%) Problem 8: A spherical capacitor consists of a single conducting sphere of radius R = 12 cm that carries a positive charge Q = 65 nC. The capacitance for this spherical capacitor is given by the equation C-4jEjR 14% Part (a) Write an equation for the energy stored in a spherical capacitor when a charge Q is placed on the capacitor Write your cqu ation in terms of R, Q, and eg Grade Summarv Deduction:s Potential 0% 100% 7...
A spherical capacitor has a spherical inner plate with radius a
and outer plate with radius b. The charge on the inner plate is +Q
and on the outer plate it is -Q. We have filled a cone shaped
region of angle θ (0 ≤ θ ≤ π) with a dielectric with constant κ.
The dielectric fills the entire volume between the two spheres
inside the cone. You may neglect any fringing effects between the
dielectric and the vacuum (dielectric...
