A metal sphere with radius ra = 1.30 cm is supported on an insulating stand at...

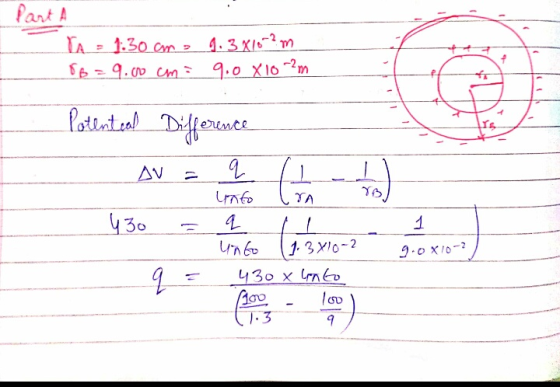

A metal sphere with radius ra = 1.30 cm is supported on an insulating stand at the center of a hollow, metal, spherical shell with radius rb = 9.00 cm . Charge +q is put on the inner sphere and charge −q on the outer spherical shell. The magnitude of q is chosen to make the potential difference between the spheres 430 V , with the inner sphere at higher potential.

Part A

Calculate q.

Part B

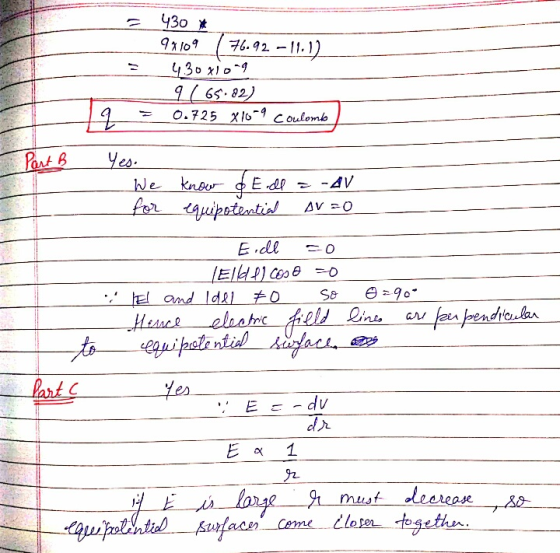

Are the electric field lines and equipotential surfaces mutually perpendicular?

PART C

Are the equipotential surfaces closer together when the magnitude of E⃗  is largest?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

PLEASE LIKE .

0 0
