A 4.0-Ω resistor, an 8.0-Ω resistor, and a 12-Ω resistor are connected in series with a...

Question

Question

A 4.0-Ω resistor, an 8.0-Ω resistor, and a 12-Ω resistor are connected in series with a 24-V battery. What are the equivalent resistance?

science physics

Answer 1

Answer #1

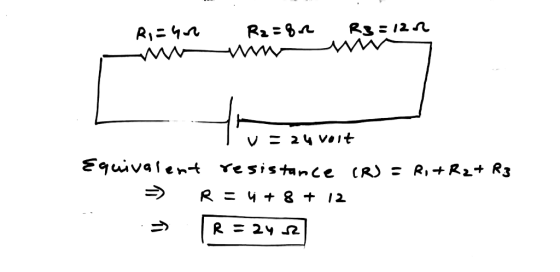

All resistance are in series combination so equivalent resistance will be some of all resistance.

Answer 2
