4.0 12 6.012 24 V 24 Ω WWW 8.0 12 24 12 Consider the above resistor...

Question

Question

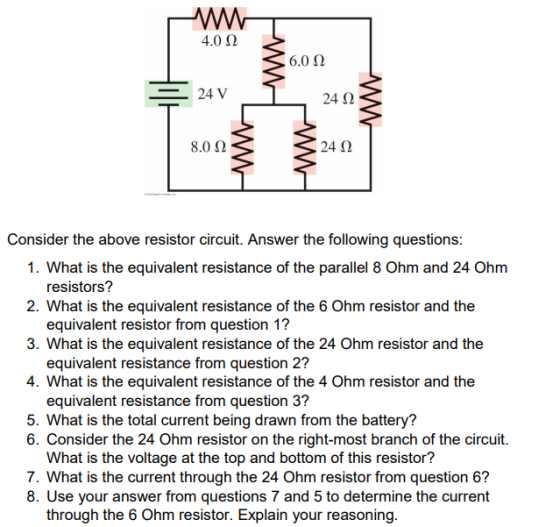

4.0 12 6.012 24 V 24 Ω WWW 8.0 12 24 12 Consider the above resistor circuit. Answer the following questions: 1. What is the e

science physics

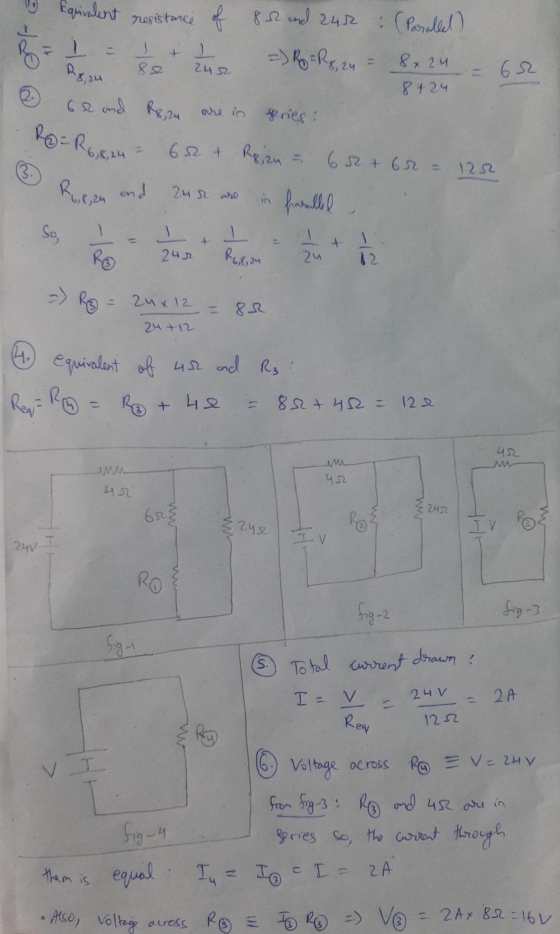

Answer 1

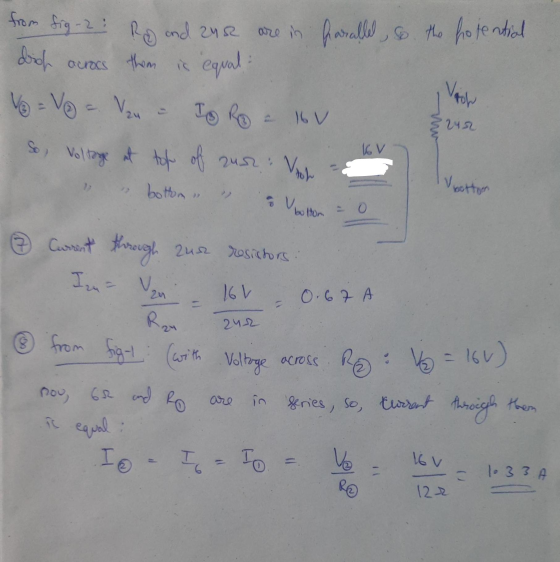

Answer #1

Please feel free to ask in case of any doubts and discrepancies.

Please hit a LIKE

Thank yo u

Answer 2

Similar Homework Help Questions

A 4.0-Ω resistor, an 8.0-Ω resistor, and a 12-Ω resistor are connected in parallel with a...

A 4.0-Ω resistor, an 8.0-Ω resistor, and a 12-Ω resistor are connected in parallel with a 24-V battery. What are the equivalent resistance?
A 4.0-Ω resistor, an 8.0-Ω resistor, and a 12-Ω resistor are connected in series with a...

A 4.0-Ω resistor, an 8.0-Ω resistor, and a 12-Ω resistor are connected in series with a 24-V battery. What are the equivalent resistance?
Three 4.0 Ω resistors are connected in series with a 17.0 V battery. Find the following....

Three 4.0 Ω resistors are connected in series with a 17.0 V battery. Find the following. (a) the equivalent resistance of the circuit Ω (b) the current in each resistor A (c) Repeat for the case in which all three resistors are connected in parallel across the battery. equivalent resistance Ω current in each resistor A

9) Two resistors (3 Ω and 12 Ω) are wired together in parallel with a battery....

9) Two resistors (3 Ω and 12 Ω) are wired together in parallel with a battery. A current of 0.5 A passes through the 12 Ω resistor. A) What is the total equivalent resistance? B) What is the voltage of the power supply used to operate the circuit? C) How much current passes through the 3 Ω resistor?
FREE RESPONSE [10 points A battery with an emf of 24 volts and an internal resistance...

FREE RESPONSE [10 points A battery with an emf of 24 volts and an internal resistance of 1 ohm is connected to an external circuit as shown above Determine each of the following 26. The equivalent resistance of the combination of the 4-ohm, 8-ohm, and 12-ohm resistors 27. The current in the 5-ohm resistor 28. The terminal voltage, Vac of the battery 29. The rate at which energy is dissipated in the 12-ohm resistor 30. The magnitude of the potential...
Consider a circuit containing a 24 V battery and a 15 Ω resistor. We want to...

Consider a circuit containing a 24 V battery and a 15 Ω resistor. We want to mesure the current in the circuit with an ammeter of internal resistance 3 mΩ and the voltage drop across the resistor with a voltmeter having an internal resistance of 100 kΩ. a. How should be the ammeter connected (series or parallel)? b. How should be the voltmeter connected (series or parallel)? c. Draw a schematic of the circuit d. Calculate the current across the...

A resistor with a resistance of 12 Ω is connected in series with two batteries both...

A resistor with a resistance of 12 Ω is connected in series with two batteries both of unknown voltage. The current through the resistor is 5.7 A. The second battery is removed from the circuit. The current through the resistor is now 3.2 A. Calculate the potential differences of both batteries. Show your work and explain your reasoning.
The resistor should read 10.0 Ω. Tap on the battery so that the voltage adjustment window pops up. Adjust the voltage to 10.0 V.

3. The resistor should read 10.0 Ω. Tap on the battery so that the voltage adjustment window pops up. Adjust the voltage to 10.0 V. What is the current in the circuit? What is the voltage across the resistor? 4. Now build the circuit with two resistors in series with 10.0 2 each (Series Circuit). What is the current through the circuit with a battery voltage of 10.0 V? How does this compare to the current with just one resistor of...
Four resistors are connected in a circuit as shown below with a12 V battery.a)...

Four resistors are connected in a circuit as shown below with a 12 V battery.a) What is the equivalent resistance of R2 and R3?b) What is the equivalent resistance of R2, R3, and R4?c) What is the equivalent resistance of the entire circuit?d) What is the total current flowing through the circuit?e) What is the voltage and current for each resistor?ResistorVoltageCurrent100 Ohm150 Ohm300 Ohm250 Ohm

A 50-Ω resistor and a 28-Ω resistor are connected in series to a 12-V battery of...

A 50-Ω resistor and a 28-Ω resistor are connected in series to a 12-V battery of negligible resistance. What is the current flowing through each resistor?
