A rotational axis is directed perpendicular to the plane of a square and is located as...

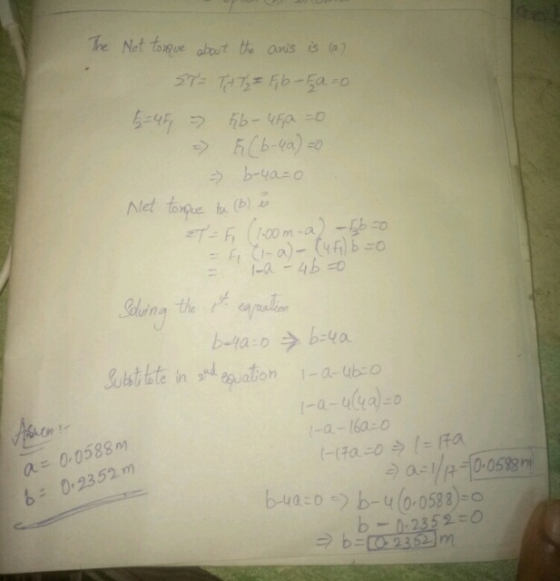

A rotational axis is directed perpendicular to the plane of a square and is located as shown in the drawing. Two forces, vector F 1 and vector F 2, are applied to diagonally opposite corners, and act along the sides of the square, first as shown in part a and then as shown in part b of the drawing. In each case the net torque produced by the forces is zero. The square is one meter on a side, and the magnitude of vector F 2 is 4 times that of vector F 1. Find the distances a and b that locate the axis. Note that a and b are not drawn to scale. a = Incorrect: Your answer is incorrect. m b = Incorrect: Your answer is incorrect. m
Homework Answers
Add Answer to:
A rotational axis is directed perpendicular to the plane of a
square and is located as...
As shown in the figure below, we have a square one meter on a side that is free to rotate about an axis perpendicular to the plane of the square
As shown in the figure below, we have a square one meter on a side that is free to rotate about an axis perpendicular to the plane of the square, a distance a from one side and a distance b from the other side.Two forces, F1 and F2 are applied to diagonally opposite corners, and act along the sides of the square, first as shown in case (t) and then as shown in case (ii) of the drawing. In each...
As shown in the figure below, we have a square one meter on a side that...
As shown in the figure below, we have a square one meter on a side that is free to rotate about an axis perpendicular to the plane of the square, a distance a from one side and a distance b from the other side. a (ii) Two forces, F, and F2, are applied to diagonally opposite corners, and act along the sides of the square, first as shown in case (i) and then as shown in case (ii) of the...
As shown in the figure below, we have a square one meter on a side that...
As shown in the figure below, we have a square one meter on a side that is free to rotate about an axis perpendicular to the plane of the square, a distance a from one side and a distance b from the other side. Two forces, F, and f, are applied to diagonally opposite corners, and act along the sides of the square, first as shown in case (i) and then as shown in case (ii) of the drawing. In...
PART A PART B PART C Q14 (10 points): If the rotational inertia about an axis...
PART A
PART B
PART C
Q14 (10 points): If the rotational inertia about an axis through the midpoint of one end of the slab, axis 1 in the below figure, is 4.7x104 kg.m2, what is its rotational inertia about the axis through its center of mass, axis 2? Mass of the slab is 0.16 kg. (Hint: Use parallel-axis theorem.) Answer: I-3.26x I0 kgm2 a 2 cm -бст Q19 (10 points): A square slab of 0.4 m on each side...
Four identical particles of mass m each are placed at the vertices of a square with side length a and held by four massless rods, which form the sides of the square. (Use any variable stated above.)
Four identical particles of mass m each are placed at the vertices of a square with side length a and held by four massless rods, which form the sides of the square. (Use any variable stated above.) a. What is the rotational inertia of this rigid body about an axis passes through the midpoint of opposite sides and lies in the plane of the square? b. What is the rotational inertia of this rigid body about an axis that passes through...
Question 11 Four equal masses m are located at the corners of a square of side...
Question 11
Four equal masses m are located at the corners of a square of side l connected by essentially massless rods. (Use the following as necessary: m and l.) (a) Find the rotational inertia of this system about an axis that coincides with one side. (b) Find the rotational inertia of this system about an axis that bisects two opposite sides.
The drawing shows a top view of a square box lying on a frictionles loor. Three forces, which are drawn to scale, a...
The drawing shows a top view of a square box lying on a frictionles loor. Three forces, which are drawn to scale, act on the box. Consider an angular acceleration with respect to an axis through the center of the box (perpendicular to the page). Which one of the following statements is corrct? F The box will have a translational acceleration but not an angular acceleration The box will have both a translational acceleration and an angular acceleration The box...
A square metal plate 0.180 m on each side is pivoted about an axis through point O at its center and perpendicular to the plate.
A square metal plate 0.180 m on each side is pivoted about an axis through point O at its center and perpendicular to the plate. Calculate the net torque about this axis due to the three forces shown in the figure if the magnitudes of the forces are F1 = 22.0 N, F2 = 26.0 N, and F3 = 11.0N.
A square metal plate 0.180 m on each side is pivoted about an axis through point...
A square metal plate 0.180 m on each side is pivoted about an axis through point 0 at its center and perpendicular to the plate (Figure 1). Part A Calculate the net torque about this axis due to the three forces shown in the figure if the magnitudes of the forces are F 22.0 N, F 14.6 N, and F 16.1 N. The plate and all forces are in the plane of the page. Take positive torques to be counterclockwise....
A square metal plate 0.180 m on each side is pivoted about an axis through point...
A square metal plate 0.180 m on each side is pivoted about an axis through point o at its center and perpendicular to the plate. (See the figure below (Figure 1).) Part A Calculate the net torque about this axis due to the three forces shown in the figure if the magnitudes of the forces are F1 = 16.0N, F2 = 29.0N, and F3 = 14.0N. The plate and all forces are in the plane of the page.
As shown in the figure below, we have a square one meter on a side that is free to rotate about an axis perpendicular to the plane of the square, a distance a from one side and a distance b from the other side. a (ii) Two forces, F, and F2, are applied to diagonally opposite corners, and act along the sides of the square, first as shown in case (i) and then as shown in case (ii) of the...
As shown in the figure below, we have a square one meter on a side that is free to rotate about an axis perpendicular to the plane of the square, a distance a from one side and a distance b from the other side. Two forces, F, and f, are applied to diagonally opposite corners, and act along the sides of the square, first as shown in case (i) and then as shown in case (ii) of the drawing. In...
PART A
PART B
PART C
Q14 (10 points): If the rotational inertia about an axis through the midpoint of one end of the slab, axis 1 in the below figure, is 4.7x104 kg.m2, what is its rotational inertia about the axis through its center of mass, axis 2? Mass of the slab is 0.16 kg. (Hint: Use parallel-axis theorem.) Answer: I-3.26x I0 kgm2 a 2 cm -бст Q19 (10 points): A square slab of 0.4 m on each side...
Question 11
Four equal masses m are located at the corners of a square of side l connected by essentially massless rods. (Use the following as necessary: m and l.) (a) Find the rotational inertia of this system about an axis that coincides with one side. (b) Find the rotational inertia of this system about an axis that bisects two opposite sides.
The drawing shows a top view of a square box lying on a frictionles loor. Three forces, which are drawn to scale, act on the box. Consider an angular acceleration with respect to an axis through the center of the box (perpendicular to the page). Which one of the following statements is corrct? F The box will have a translational acceleration but not an angular acceleration The box will have both a translational acceleration and an angular acceleration The box...
A square metal plate 0.180 m on each side is pivoted about an axis through point 0 at its center and perpendicular to the plate (Figure 1). Part A Calculate the net torque about this axis due to the three forces shown in the figure if the magnitudes of the forces are F 22.0 N, F 14.6 N, and F 16.1 N. The plate and all forces are in the plane of the page. Take positive torques to be counterclockwise....
