create an ERD for a small book store . The owner would like to database to...

create an ERD for a small book store . The owner would like to database to keep track of Books, Authors, and Publisher only (hint: do these sound like entities?). Create appropriate attributes, keys, relationships, and data types.

Keep in mind that Many-to-Many relationships should not be implemented in the database. These relationships should be broken into One-to-Many relationships using Associative Entities.

engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

Solution:

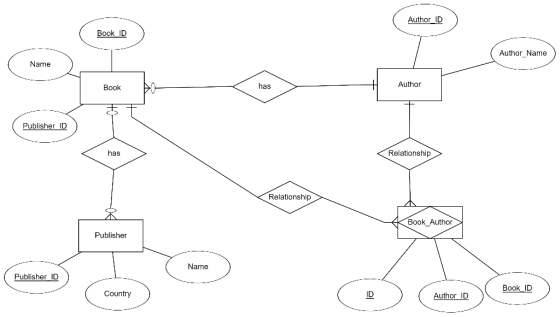

ERD Diagram:

Explanation:

From the above diagram, there are 3 entities and one associative entity. The underlined attribute has primary key. The associative entity has 2 foreign keys from the tables. The owner can add more attributes in each entity
