Chapter 20, Problem 057 Help with problems of this kind is available in Interactive Solution 20.57....
Chapter 20, Problem 057

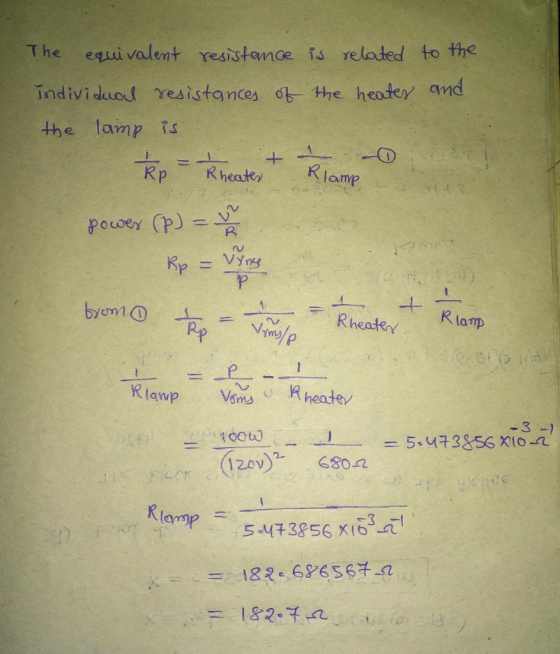

Help with problems of this kind is available in Interactive Solution 20.57. A coffee cup heater and a lamp are connected in parallel to the same 120-V outlet. Together, they use a total of 100 W of power. The resistance of the heater is 680Ω. Find the resistance of the lamp.
Homework Answers
Add Answer to:
Chapter 20, Problem 057
Help with problems of this kind is available in Interactive
Solution 20.57....
