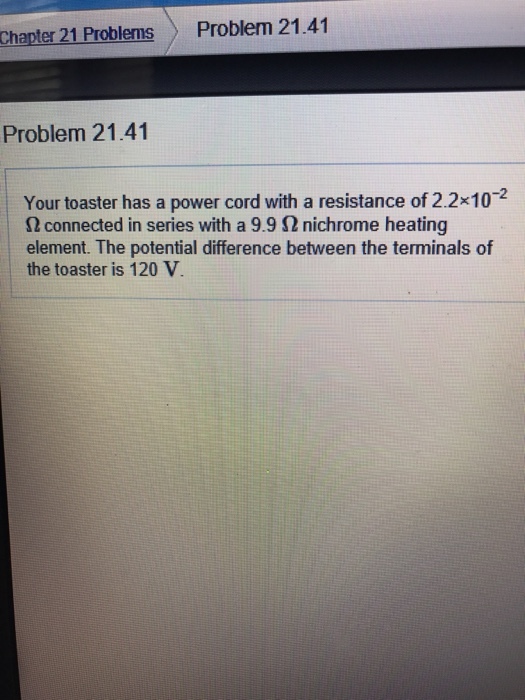

Chapter 21 Problems Problem 21.41 Problem 21.41 Your toaster has a power cord with a resistance...
Your toaster has a power cord with a resistance of 2.2times10^-2 ohm connected in series with...
Your toaster has a power cord with a resistance of 2.2times10^-2 ohm connected in series with a 9.9 ohm nichrome heating element. The potential difference between the terminals of the toaster is 120 V. How much power is dissipated in the power cord? Express your answer using two significant figures. How much power is dissipated in the heating element? Express your answer using two significant figures.
Your toaster has a power cord with a resistance of 1.9×10−2 Ω connected in series with...
Your toaster has a power cord with a resistance of 1.9×10−2 Ω connected in series with a 9.7 Ω nichrome heating element. The potential difference between the terminals of the toaster is 120 V. How much power is dissipated in the power cord? (W) How much power is dissipated in the heating element? (kW)
Your toaster has a power cord with a resistance of 1.8×10−2 Ω connected in series with...

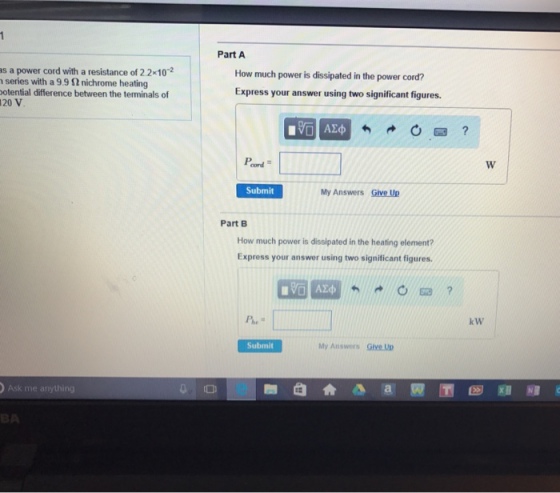

Your toaster has a power cord with a resistance of 1.8×10−2 Ω connected in series with a 9.9 Ω nichrome heating element. The potential difference between the terminals of the toaster is 120 V. Part A How much power is dissipated in the power cord? Express your answer using two significant figures. Pcord= W Part B How much power is dissipated in the heating element? Express your answer using two significant figures. Phe= kW
A certain toaster has a heating element made of Nichrome resistance wire. When the toaster is...
A certain toaster has a heating element made of Nichrome resistance wire. When the toaster is first connected to a 140-V source of potential difference and the wire is at a temperature of 20.0°C), the initial current is 1.70 A, but the current begins to decrease as the resistive element warms up. When the toaster reaches its final operating temperature, the current has dropped to 1.53 A. (a) Find the power the toaster converts when it is at its operating...
A certain toaster has a heating element made of Nichrome resistance wire. When the toaster is...
A certain toaster has a heating element made of Nichrome resistance wire. When the toaster is first connected to a 130-V source of potential difference (and the wire is at a temperature of 20.0°C), the initial current is 1.70 A, but the current begins to decrease as the resistive element warms up. When the toaster reaches its final operating temperature, the current has dropped to 1.53 A. (a) Find the power the toaster converts when it is at its operating...
20837731 A certain toaster has a heating element made of Nichrome resistance wire. When the toaster...
20837731 A certain toaster has a heating element made of Nichrome resistance wire. When the toaster is first connected to a 140-V source of potential difference (and the Initial current is 1.80 A, but the current begins to decrease as the resistive element warms up. When the toaster reaches its firal the wire is at a temperature of 20.0 c), final operating temperature, the current has dropped to 1.53 A a) Find the power the toaster converts when it is...
A given wire has a resistance of 3.90 Ω per 1000 ft. A 79-ft extension cord...
A given wire has a resistance of 3.90 Ω per 1000 ft. A 79-ft extension cord made of this wire is used simultaneously with an entertainment system that draws 7 A and a toaster that draws 15 A. (An extension cord has two wires in it.) a) If the voltage at the wall socket is a constant 120 V, how much voltage is available at the tools? b) How much power is lost in the extension cord?
Chapter 20, Problem 057 Help with problems of this kind is available in Interactive Solution 20.57....
Chapter 20, Problem 057 Help with problems of this kind is available in Interactive Solution 20.57. A coffee cup heater and a lamp are connected in parallel to the same 120-V outlet. Together, they use a total of 100 W of power. The resistance of the heater is 680Ω. Find the resistance of the lamp.
Help with number 26 Holt Chapter 20 Practice problems? The diagram is above. Practice problems■mm mmm-29.For...
Help with number 26 Holt
Chapter 20 Practice problems? The diagram is above.
Practice problems■mm mmm-29.For thecircuit shown in Figure 20-39, determi 25. Find the equivalent resistance of the circuit shown e - a. the current in each resistor in Figure 20-36. (See Sample Problem 20C.) b. the potential difference across each resisto See Sample Problem 20D.) 30.0 V 6.0 Ω 18Ω 9.0 Ω 6.0Ω 9.0 Ω 12Ω Figure 20-36 12 V 3.0 Ω Figure 20-39 26. Find the equivalent...
Problem 2 A 2 V power supply with intenal resistance of 10 2 is connected to...
Problem 2 A 2 V power supply with intenal resistance of 10 2 is connected to a circuit as shown below 10 9 120 0 2V 120 0 out 1. What voltage appears across the power supply terminals (V)? 11 point 2. What voltage will be measured at Vau? 2 points 3. What voltage will be measured at Vat if the 120 2 resistors are replaced by 1 k2 resistors? [1 point]
Your toaster has a power cord with a resistance of 2.2times10^-2 ohm connected in series with a 9.9 ohm nichrome heating element. The potential difference between the terminals of the toaster is 120 V. How much power is dissipated in the power cord? Express your answer using two significant figures. How much power is dissipated in the heating element? Express your answer using two significant figures.
A certain toaster has a heating element made of Nichrome resistance wire. When the toaster is first connected to a 140-V source of potential difference and the wire is at a temperature of 20.0°C), the initial current is 1.70 A, but the current begins to decrease as the resistive element warms up. When the toaster reaches its final operating temperature, the current has dropped to 1.53 A. (a) Find the power the toaster converts when it is at its operating...
20837731 A certain toaster has a heating element made of Nichrome resistance wire. When the toaster is first connected to a 140-V source of potential difference (and the Initial current is 1.80 A, but the current begins to decrease as the resistive element warms up. When the toaster reaches its firal the wire is at a temperature of 20.0 c), final operating temperature, the current has dropped to 1.53 A a) Find the power the toaster converts when it is...
Help with number 26 Holt
Chapter 20 Practice problems? The diagram is above.
Practice problems■mm mmm-29.For thecircuit shown in Figure 20-39, determi 25. Find the equivalent resistance of the circuit shown e - a. the current in each resistor in Figure 20-36. (See Sample Problem 20C.) b. the potential difference across each resisto See Sample Problem 20D.) 30.0 V 6.0 Ω 18Ω 9.0 Ω 6.0Ω 9.0 Ω 12Ω Figure 20-36 12 V 3.0 Ω Figure 20-39 26. Find the equivalent...
Problem 2 A 2 V power supply with intenal resistance of 10 2 is connected to a circuit as shown below 10 9 120 0 2V 120 0 out 1. What voltage appears across the power supply terminals (V)? 11 point 2. What voltage will be measured at Vau? 2 points 3. What voltage will be measured at Vat if the 120 2 resistors are replaced by 1 k2 resistors? [1 point]
