20) This type of motor may used for power factor correction: A) wound-rotor induction​ B) brushless...

20) This type of motor may used for power factor correction:
A) wound-rotor induction​
B) brushless dc
C) squirrel-cage induction​
D) synchronous

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

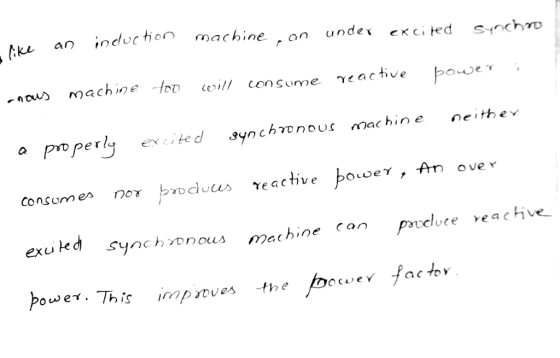

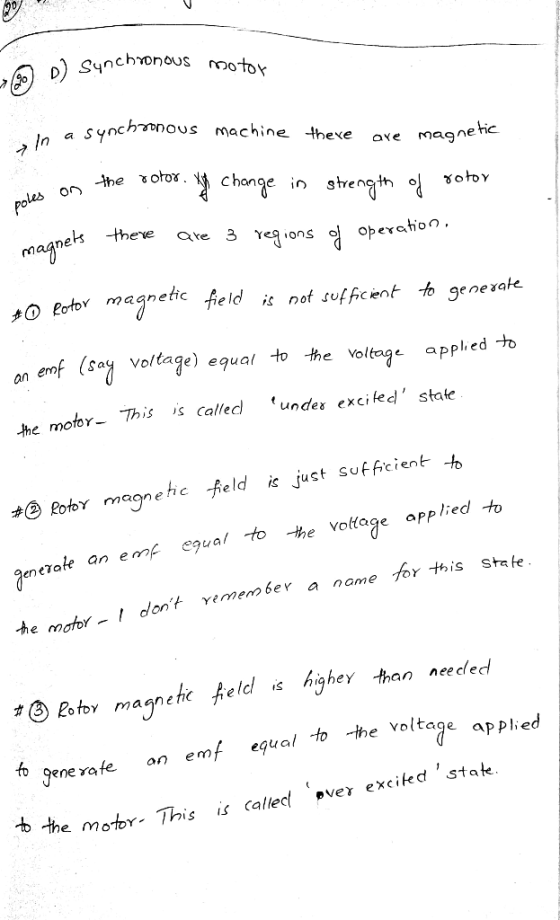

Answer #1

0 0
Add a comment
