a 20.0 kg floodlight in a park is supported at the end of a horizontal beam...

a 20.0 kg floodlight in a park is supported at the end of a horizontal beam of mass 8.0 kg. A cable at an angle of 30 degrees with the beam helps to support the light. a. Find the tension in the cable. b. find the force exerted on the beam by the pole

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

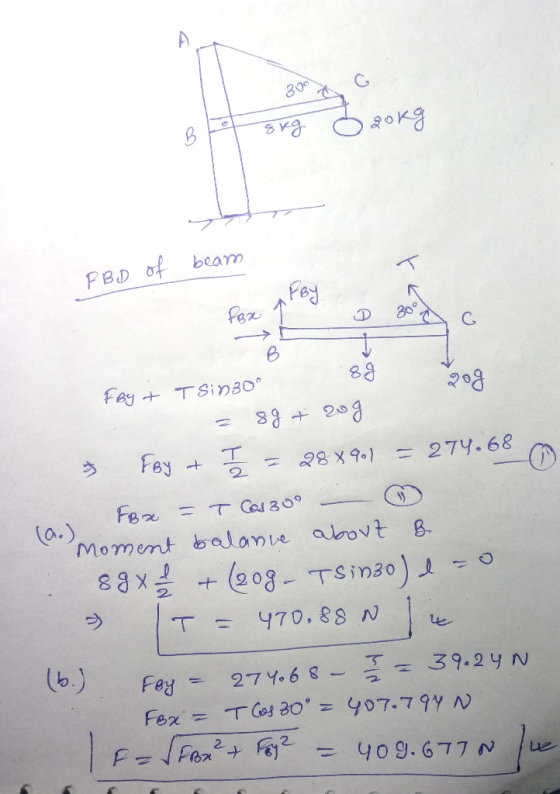

Answer #1

0 0
Add a comment
