10.0 kg sign is suspended from three separate cables . draw free body diagram. find the...
10.0 kg sign is suspended from three separate cables .
draw free body diagram.

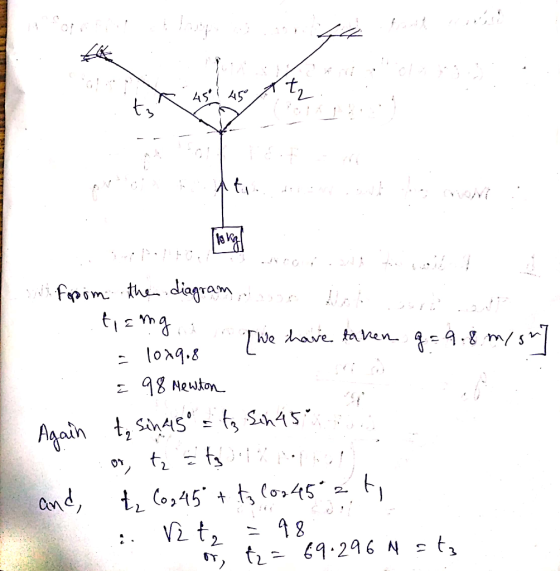

find the tension in each of the th three cables t1, t2, t3
Homework Answers
Add Answer to:
10.0 kg sign is suspended from three separate cables .
draw free body diagram.
find the...
A block having a mass of m = 14 kg is suspended via two cables as shown in the figure. The angles shown in the figure are as follows:
A block having a mass of m = 14 kg is suspended via two cables as shown in the figure. The angles shown in the figure are as follows: α = 14° and β =37°. We will label the tension in Cable I as T1 and the tension in Cable 2 as T2. Part (a) Please use the interactive area below to draw the Free Body Diagram for the block. Part (b) Write an expression for the sum of forces in the...
Find the magnitude of the tension in the supporting cable shown below. In this case, the...
Find the magnitude of the tension in the supporting cable shown below. In this case, the weight of the suspended body is 100.0N and the masses of the cables are negligible. Note the diagram is NOT drawn to scale. 30° 60° T1 T2 T3 (a) What is the magnitude of the tension force T1 - [Select] (b) What is the magnitude of the tension force T2- (Select]
Find the tension in the two cables I'm confused on how to draw the free body...
Find the tension in the two cables I'm confused on how to draw the
free body diagrams
1. Given m,,m,, m,0 and H, (same for m, and m,) find the equation of motion ofthe system sho wn: T1 T m 25.0° Using m, = 10.0kg , m2 = 5.00kg , m, = 3.00kg , θ = 25.0, and both ropes. = 0.200 find the tension in
In a rescue, a 77.4 kg police officer is suspended by two cables, as shown in...
In a rescue, a 77.4 kg police officer is suspended by two
cables, as shown in the figure. Cable A makes an angle
?A = 29.0° with respect to the horizontal, and cable B,
?B = 67.0°. Sketch a free body diagram. Calculate the
tension in cable A.
Draw a detailed force body diagram for this problem (Don't have to solve it)! The system...
Draw a detailed force body diagram for this problem
(Don't have to solve it)!
The system in the figure below is in equilibrium, with the
string in the center exactly horizontal. Block A weighs
39.0 N, block B weighs 55.0 N, and angle φ is
34.0˚. What are
Find (a) tension T1,
(b) tension T2,
(c) tension T3, and
(d) angle θ.
Questions 1. Equation () can also be obtained by drawing separate free body diagrams for the...
Questions 1. Equation () can also be obtained by drawing separate free body diagrams for the two masses in the system, applying Newton's Laws to each body to get 2 equations with T (string tension force) unknowns, and solving the 2 equations simultaneously and a as m1g m 2 8 Write the 2 equations and solve them simultaneously to obtain formulas for T and a in te m2 and g. This experiment has stressed Newton's Second Law of Motion, F...
A bag of cement weighing 350 N hangs in equilibrium from three wires as suggested in...
A bag of cement weighing 350 N hangs in equilibrium from three
wires as suggested in the figure below. Two of the wires make
angles θ1 = 63.0° and θ2 =
36.0° with the horizontal. Assuming the system is in equilibrium,
find the tensions T1, T2,
and T3 in the wires.
T1 =
N
T2 =
N
T3 =
N
A cement bag of weight Fg suspended
from a horizontal surface by three cables. The cement bag hangs
from one...
A 18.8 kg traffic light is suspended from two cables as shown in the figure below.
A 18.8 kg traffic light is suspended from two cables as shown in the figure below. Find the tension in each cable in newtons. left cable _______ right cable _______
A 27.2 kg mass is suspended by the cable assembly as shown in figure below. The...
A 27.2 kg mass is suspended by the cable assembly as shown in
figure below. The cables have no mass of their own. The cable to
the left (cable 1) of the mass makes an angle, θ1= 0.00 degrees
with the horizontal, and the cable right (cable 2) makes an angle,
θ2=36.4 degrees. If the mass is at rest what is the tension in each
of the cables, T1 and T2? The acceleration due to gravity is g =
9.81...
INCLUDE FREE BODY DIAGRAM AND CORRECT NOTATION . THANK YOU pts] Three cables located at A, B and Care supporting a p...
INCLUDE FREE BODY DIAGRAM AND CORRECT NOTATION . THANK
YOU
pts] Three cables located at A, B and Care supporting a plate with uniform density and has a total weight of 100 lbs. Find the tension in each cable. (Note that due to uniform density, the weight is located at the centroid or center of the plate.) Show FBD and unit vectors. 1. [25 375 mm 125 mim 500 mm rイ 500 mm n-
Find the magnitude of the tension in the supporting cable shown below. In this case, the weight of the suspended body is 100.0N and the masses of the cables are negligible. Note the diagram is NOT drawn to scale. 30° 60° T1 T2 T3 (a) What is the magnitude of the tension force T1 - [Select] (b) What is the magnitude of the tension force T2- (Select]
Find the tension in the two cables I'm confused on how to draw the
free body diagrams
1. Given m,,m,, m,0 and H, (same for m, and m,) find the equation of motion ofthe system sho wn: T1 T m 25.0° Using m, = 10.0kg , m2 = 5.00kg , m, = 3.00kg , θ = 25.0, and both ropes. = 0.200 find the tension in
In a rescue, a 77.4 kg police officer is suspended by two
cables, as shown in the figure. Cable A makes an angle
?A = 29.0° with respect to the horizontal, and cable B,
?B = 67.0°. Sketch a free body diagram. Calculate the
tension in cable A.
Draw a detailed force body diagram for this problem
(Don't have to solve it)!
The system in the figure below is in equilibrium, with the
string in the center exactly horizontal. Block A weighs
39.0 N, block B weighs 55.0 N, and angle φ is
34.0˚. What are
Find (a) tension T1,
(b) tension T2,
(c) tension T3, and
(d) angle θ.
Questions 1. Equation () can also be obtained by drawing separate free body diagrams for the two masses in the system, applying Newton's Laws to each body to get 2 equations with T (string tension force) unknowns, and solving the 2 equations simultaneously and a as m1g m 2 8 Write the 2 equations and solve them simultaneously to obtain formulas for T and a in te m2 and g. This experiment has stressed Newton's Second Law of Motion, F...
A bag of cement weighing 350 N hangs in equilibrium from three
wires as suggested in the figure below. Two of the wires make
angles θ1 = 63.0° and θ2 =
36.0° with the horizontal. Assuming the system is in equilibrium,
find the tensions T1, T2,
and T3 in the wires.
T1 =
N
T2 =
N
T3 =
N
A cement bag of weight Fg suspended
from a horizontal surface by three cables. The cement bag hangs
from one...
A 27.2 kg mass is suspended by the cable assembly as shown in
figure below. The cables have no mass of their own. The cable to
the left (cable 1) of the mass makes an angle, θ1= 0.00 degrees
with the horizontal, and the cable right (cable 2) makes an angle,
θ2=36.4 degrees. If the mass is at rest what is the tension in each
of the cables, T1 and T2? The acceleration due to gravity is g =
9.81...
INCLUDE FREE BODY DIAGRAM AND CORRECT NOTATION . THANK
YOU
pts] Three cables located at A, B and Care supporting a plate with uniform density and has a total weight of 100 lbs. Find the tension in each cable. (Note that due to uniform density, the weight is located at the centroid or center of the plate.) Show FBD and unit vectors. 1. [25 375 mm 125 mim 500 mm rイ 500 mm n-
