Hydraulic grade Line ( HGL) rises up by a distance of 20 mm when flow take...
Hydraulic grade Line ( HGL) rises up by a distance of 20 mm when flow take place from 200 mm diameter to 400 diameter sudden expansion. The energy grade line then drops down by
(A) 10 mm
(B) 20 mm
(C) 30 mm
(D) 40 mm
Homework Answers
Add Answer to:

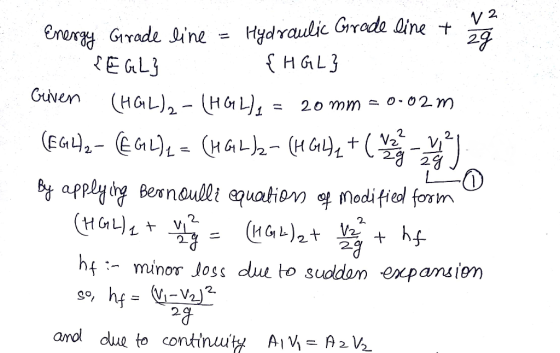

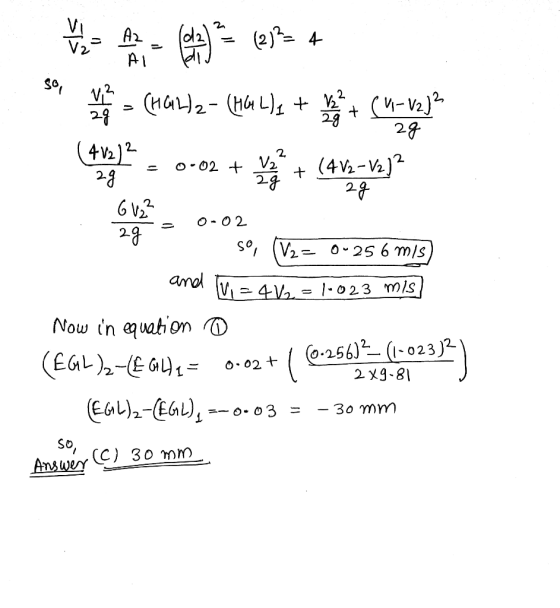

Hydraulic grade Line ( HGL) rises up by a distance of 20 mm when
flow take...
(Energy line/hydraulic grade line) A smooth plastic, 10-m-long garden hose with an inside diameter of 20...
(Energy line/hydraulic grade line) A smooth plastic, 10-m-long garden hose with an inside diameter of 20 mm is used to drain a wading pool as is shown in the figure 0.2 m 0.23 m Choose the number of the energy line and hydraulic grade line for the flow shown below 0.2 m 0.23 m The energy line (EL) The hydraulic grade line (HGL)Y
Fluid Mechanics QUESTION 4 (a) What are the Energy Grade Line (EGL) and Hydraulic Grade Line (HGL) in a pipe system...
Fluid Mechanics
QUESTION 4 (a) What are the Energy Grade Line (EGL) and Hydraulic Grade Line (HGL) in a pipe system? (1 mark) A factory draws its water supply from a mountain lake located 75 m above the factory (a) without pump. The factory is at present been supplied via 300 m of 20 cm diameter cast iron pipe. For control purposes, there are five gate valves and one globe valve in the line, as well as three standard 90...
3. (20%) Water of 15°C temperature is pumped at a rate of 0.01 m/s through the...
3. (20%) Water of 15°C temperature is pumped at a rate of 0.01 m/s through the 800-m long and 10-cm diameter drawn tubing from the upstream reservoir at an elevation of 10 m to the downstream reservoir at an elevation of 30 m. The pump is located at an elevation of 10 m below the datum and at a distance of 350 m from the upstream reservoir as shown. (a) Find the values of the Reynolds number and the friction...
(b) Water flows under gravity through a pipeline connecting two reservoirs as shown in Figure 2....
(b) Water flows under gravity through a pipeline connecting two reservoirs as shown in Figure 2. The pipeline consists of 2 km of pipe diameter 400 mm and sand roughness equivalent 0.03 mm followed by an abrupt change to 3 km of 500 mm diameter pipe of sand roughness equivalent 0.08 mm. The pipe discharges as a free jet into a reservoir. The difference in elevation between the water surface of the upstream reservoir and the discharging jet is 21...
**1700000y n when releed The modus of the shows hoveis 25 wome is 20 mm The...
**1700000y n when releed The modus of the shows hoveis 25 wome is 20 mm The work done in conding the spring from 25 .75 a) 625 b) 15.631 c) 781 d) 62 5J e) none of the above A The pendulum shown above has been released from re c ents of a conected by a thin her to a fri s s O. The mass of the can be selected The center of mass of the pendulum is at...
Parallel system and determine the 0.05 m/s flow distribution for a 4 parallel pipe system when Qi...
example provided
parallel system and determine the 0.05 m/s flow distribution for a 4 parallel pipe system when Qin D, mm 50 75 100 125 L, m 50 100 150 200 Element 0.02 0.03 0.02 0.03 2.5 Assuming that 0 is known, the unknowns in the above equations are Q1, 02, and are solved simultaneously in the manner shown in the following example. and ΔΗ H,-H, EXAMPLE 10.4 Find the flow distribution and change in hydraulic grade line for the...
13 A 1.0 m radius grinding wheel takes 55 s to speed up from 20 rad/sto...
13 A 1.0 m radius grinding wheel takes 55 s to speed up from 20 rad/sto 11.0 rad/s. What is the wheels average angular acceleration? a 9 6 radis b. 4 8 radis c 16 radis d 0.33 rad's fit 14. A bowing ball has a mass of 80 kg a moment of inertia of 28 x 107 kg*mand a radius of 0.10 m rolls down the lane without slipping at a linear speed of 40 m/s, what is its...
IB math studies 1. Ten students were asked for their average grade at the end of their last year...
IB math studies
1. Ten students were asked for their average grade at the end of their last year of high school and their average grade at the end of their last year at university. The results were put into a table as follows: Student High School grade, University grade, y 90 3.2 2.6 75 80 3.0 70 95 3.8 85 90 3.8 2.8 70 95 85 3.0 3.5 10 Total 835 30.4 (a) Given that s, 8.96, sy-0.610 and...
The order reads: 900mL NS IV 5 hr. Calculate the flow rate in millimeters per hour...
The order reads: 900mL NS IV 5 hr. Calculate the flow rate in millimeters per hour when the drop factor is 10 drops per milliliter. The rate ordered by the physician is 80 microdrops per minute. How many milliliters per hour will this patient receive? 1,000 mL of NS must infuse via IV over 8 hours. The drop factor is 20 gtt/mL. Find the flow rate in gtt/min. An infusion of 5% D/W begins with 300 mL in the IV...
2. Yield from an Apple Orchard Figure 6.44 is a graph of the annual yield, y(t),...
2. Yield from an Apple Orchard Figure 6.44 is a graph of the annual yield, y(t), in bushels per year, from an orchardt years after planting. The trees take about 10 years to get established, but for the next 20 years they give a substantial yield. After about 30 years, however, age and disease start to take their toll, and the annual yield falls off. (a) Represent on a sketch of Figure 6.44 the total yield, F(M), up to M...
(Energy line/hydraulic grade line) A smooth plastic, 10-m-long garden hose with an inside diameter of 20 mm is used to drain a wading pool as is shown in the figure 0.2 m 0.23 m Choose the number of the energy line and hydraulic grade line for the flow shown below 0.2 m 0.23 m The energy line (EL) The hydraulic grade line (HGL)Y
Fluid Mechanics
QUESTION 4 (a) What are the Energy Grade Line (EGL) and Hydraulic Grade Line (HGL) in a pipe system? (1 mark) A factory draws its water supply from a mountain lake located 75 m above the factory (a) without pump. The factory is at present been supplied via 300 m of 20 cm diameter cast iron pipe. For control purposes, there are five gate valves and one globe valve in the line, as well as three standard 90...
3. (20%) Water of 15°C temperature is pumped at a rate of 0.01 m/s through the 800-m long and 10-cm diameter drawn tubing from the upstream reservoir at an elevation of 10 m to the downstream reservoir at an elevation of 30 m. The pump is located at an elevation of 10 m below the datum and at a distance of 350 m from the upstream reservoir as shown. (a) Find the values of the Reynolds number and the friction...
(b) Water flows under gravity through a pipeline connecting two reservoirs as shown in Figure 2. The pipeline consists of 2 km of pipe diameter 400 mm and sand roughness equivalent 0.03 mm followed by an abrupt change to 3 km of 500 mm diameter pipe of sand roughness equivalent 0.08 mm. The pipe discharges as a free jet into a reservoir. The difference in elevation between the water surface of the upstream reservoir and the discharging jet is 21...
**1700000y n when releed The modus of the shows hoveis 25 wome is 20 mm The work done in conding the spring from 25 .75 a) 625 b) 15.631 c) 781 d) 62 5J e) none of the above A The pendulum shown above has been released from re c ents of a conected by a thin her to a fri s s O. The mass of the can be selected The center of mass of the pendulum is at...
example provided
parallel system and determine the 0.05 m/s flow distribution for a 4 parallel pipe system when Qin D, mm 50 75 100 125 L, m 50 100 150 200 Element 0.02 0.03 0.02 0.03 2.5 Assuming that 0 is known, the unknowns in the above equations are Q1, 02, and are solved simultaneously in the manner shown in the following example. and ΔΗ H,-H, EXAMPLE 10.4 Find the flow distribution and change in hydraulic grade line for the...
13 A 1.0 m radius grinding wheel takes 55 s to speed up from 20 rad/sto 11.0 rad/s. What is the wheels average angular acceleration? a 9 6 radis b. 4 8 radis c 16 radis d 0.33 rad's fit 14. A bowing ball has a mass of 80 kg a moment of inertia of 28 x 107 kg*mand a radius of 0.10 m rolls down the lane without slipping at a linear speed of 40 m/s, what is its...
IB math studies
1. Ten students were asked for their average grade at the end of their last year of high school and their average grade at the end of their last year at university. The results were put into a table as follows: Student High School grade, University grade, y 90 3.2 2.6 75 80 3.0 70 95 3.8 85 90 3.8 2.8 70 95 85 3.0 3.5 10 Total 835 30.4 (a) Given that s, 8.96, sy-0.610 and...
The order reads: 900mL NS IV 5 hr. Calculate the flow rate in millimeters per hour when the drop factor is 10 drops per milliliter. The rate ordered by the physician is 80 microdrops per minute. How many milliliters per hour will this patient receive? 1,000 mL of NS must infuse via IV over 8 hours. The drop factor is 20 gtt/mL. Find the flow rate in gtt/min. An infusion of 5% D/W begins with 300 mL in the IV...
2. Yield from an Apple Orchard Figure 6.44 is a graph of the annual yield, y(t), in bushels per year, from an orchardt years after planting. The trees take about 10 years to get established, but for the next 20 years they give a substantial yield. After about 30 years, however, age and disease start to take their toll, and the annual yield falls off. (a) Represent on a sketch of Figure 6.44 the total yield, F(M), up to M...
