What is the critical angle for a ray trying to pass from ice into air.? (Ice n = 1.31, Air n = 1.00)

(Answer unit is degrees)

science physics

Answer 1

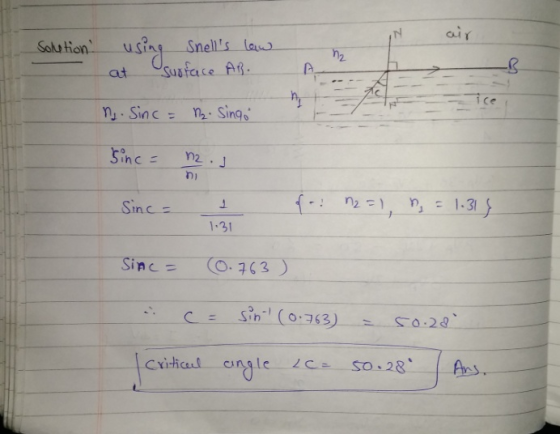

Answer #1

Answer 2
