Create a state machine that outputs a high signal every time the string ‘001’ is detected. Use only four states in your state machine, and two JK flip-flops in your circuit design. As an example, ‘1101000010100011101’ should output a high signal two times.
To design a finite state machine (FSM) that outputs a high signal upon detecting the sequence '001' using four states and two JK flip-flops, follow these steps:
1. Define the States:
State S0: Initial state, no bits detected.
State S1: '0' detected.
State S2: '00' detected.
State S3: '001' detected; output high.

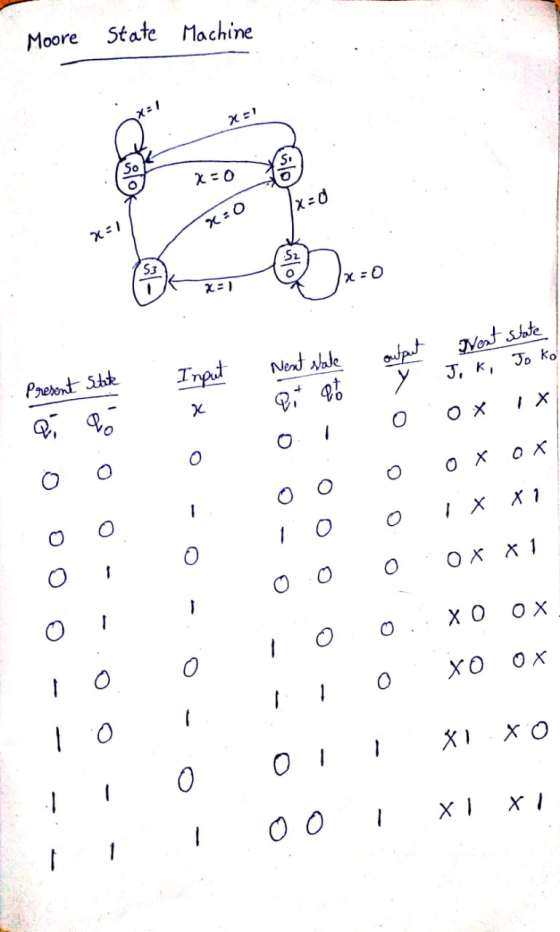

2. State Transition Diagram:
S0: On input '0' → transition to S1; on input '1' → stay in S0.
S1: On input '0' → transition to S2; on input '1' → return to S0.
S2: On input '0' → stay in S2; on input '1' → transition to S3.
S3: On input '0' → transition to S1; on input '1' → stay in S0.
3. State Encoding:
With two JK flip-flops (Q1 and Q0), four states can be encoded as:
S0: Q1Q0 = 00
S1: Q1Q0 = 01
S2: Q1Q0 = 10
S3: Q1Q0 = 11
4. Transition Table:
| Current State (Q1Q0) | Input (X) | Next State (Q1+Q0+) | Output (Z) |
|---|---|---|---|
| 00 (S0) | 0 | 01 (S1) | 0 |
| 00 (S0) | 1 | 00 (S0) | 0 |
| 01 (S1) | 0 | 10 (S2) | 0 |
| 01 (S1) | 1 | 00 (S0) | 0 |
| 10 (S2) | 0 | 10 (S2) | 0 |
| 10 (S2) | 1 | 11 (S3) | 0 |
| 11 (S3) | 0 | 01 (S1) | 1 |
| 11 (S3) | 1 | 00 (S0) | 1 |
5. JK Flip-Flop Input Equations:
For JK flip-flops, the next state equations are:
Q1+ = J1 * ~Q1 + ~K1 * Q1
Q0+ = J0 * ~Q0 + ~K0 * Q0

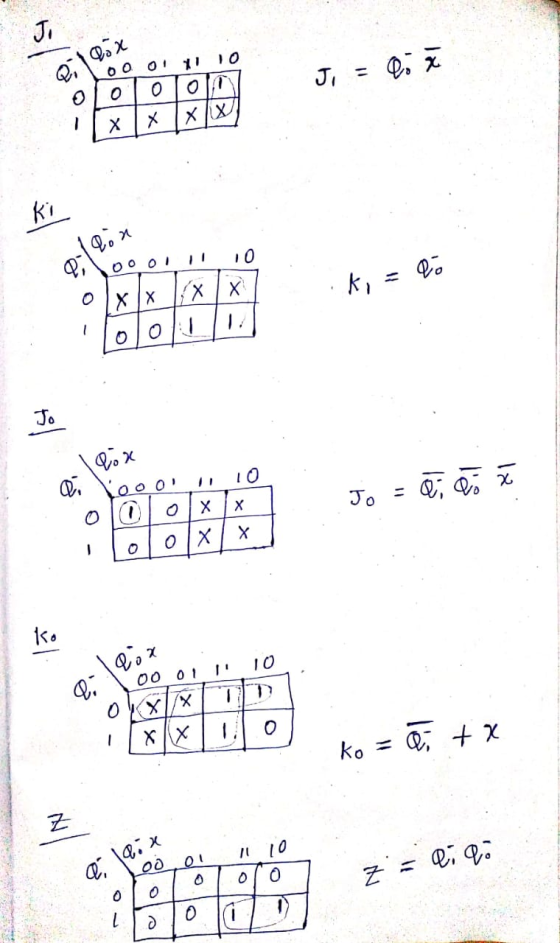

Using Karnaugh maps (K-maps) to simplify, derive the equations for J and K inputs based on the transition table.
6. Output Logic:
The output Z is high (1) only in state S3:
Z = Q1 * Q0

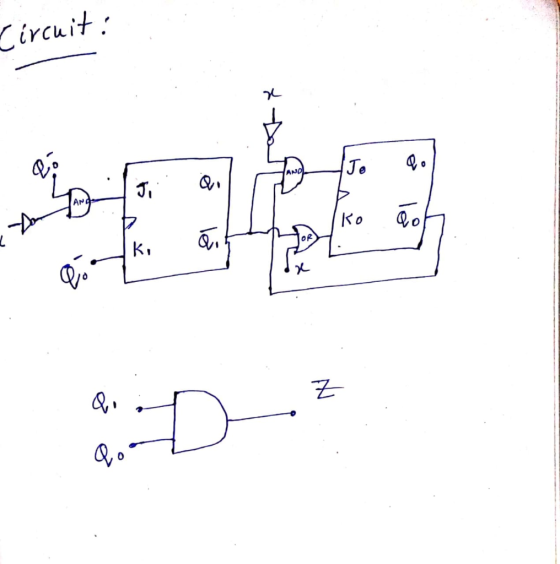

7. Circuit Implementation:
Inputs: X (serial input)
Outputs: Z (sequence detected)
Flip-Flops: Two JK flip-flops for Q1 and Q0
Create a state machine that outputs a high signal every time the string ‘001’ is detected....
Create a state machine that outputs a high signal every time the string ‘001’ is detected. Use only four states in your state machine, and two JK flip-flops in your circuit design. As an example, ‘1101000010100011101’ should output a high signal two times.
Pre-Laboratorv Exercise: You are to design a state machine capable of controlling a 4-phase unipolar stepper motor. This motor operates by energizing one (or more) of four coils of wire at a time to rotate a magnetized shaft to predetermined positions. Let us call the four coils A, B, C, and D. To make the motor rotate properly, the coils need to be turned on (driven at logic "1") and off (driven at logic "O") in the following sequence: ABCD-...
Design a state machine that implements the following description: Let’s design a simple controller for an elevator. The elevator can be at one of two floors: first or second. There is a button that controls the elevator (one input), and it has two values: up or down. Also, there are two lights in the elevator that indicate the current floor: blue for first, and yellow for second. At each time step, the controller checks the current floor and current input...
6. Develop the state diagram for a Moore state machine that detects a sequence of two or more consecutive 0's in a serial string of bits coming through an input line "X". (When two consecutive zeros are detected, the output is set to 1 and stays there is the zeros keep arriving. If a one occurs in between the zeros, the machine will go back the initial state) Additionally, make sure that the design is self-correcting. Complete the design using...
Q3. Consider the circuit shown below: Q1 Jo 0 Ko clock (a) Create the state table that shows the present-states, input x, JK flip-flops inputs, the next-states and the output y 30% (b) Create the state diagram, specify what type of state machine (Mealy or Moore) this circuit is and explain why 20%
Problem 02 Design a finite-state machine that records the results of flipping a coin a certain number of times. The state machine takes as an input flip which is zero for heads and one for tails. The states are labeled so as to indicate the numbers of heads and the nurnber of tails, NONE. H. T, HH, TT HT, HHH, etc. The order that the heads or tails was flipped does not matter, only the total numbers of heads and...
Given the State Table Below 01 02 Q3 X-1 A. B. C. Draw a state Diagram (S points) Create the "design truth table" for the "next state" and the "output" (5 points) Make a Karnaugh for each "next state" and the "output" (10 points) When making the Karnaugh maps, "xQ1" should be along the top and "O203" along the side (The two missing states should be considered "DONT CARES") Write the "Next State" and Output equations from the Karnaugh maps...
Given the State Table Below 01* 02 03 1 203 X-1 0 000 01 0 0 0 1 0 0 A. Draw a state Diagram (5 points) B. Create the "design truth table" for the "next state" and the "output" (5 points) C. Make a Karnaugh for each "next state" and the "output" (10 points) When making the Karnaugh maps, "xO1" should be along the top and "0203'" along the side (The two missing states should be considered "DONT CARES")...
Please work on Part E & F
Given the State Table Below Q1 Q2 Q3 X-1 X-0 X-1 10111loloi A. Draw a state Diagram (5 points) B. Create the "design truth table" for the "next state" and the "output"' (5 points) C. Make a Karnaugh for each "next state" and the "output" (10 points) When making the Karnaugh maps, "xQ1" should be along the top and "0203" along the side (The two missing states should be considered "DONT CARES") Write...
4. Create a 1-hot implementation of the traffic light state machine from problem #2 (a) Create the state table with state assignments, showing the next states as a function of the input and the outputs as a function of the present state. (b) Determine the logic equations for the next state inputs to the flops, and for the six output control signals.
4. Create a 1-hot implementation of the traffic light state machine from problem #2 (a) Create the state...
