11. Write a program in ladder language that will latch on a
light 20 s after an input switch has been turned on. The timer
will
Continue to cycle up to 20 s and reset itself until the input
switch has been turned off. After the third
time the timer has timed to 20 s, the light will be
unlatched.

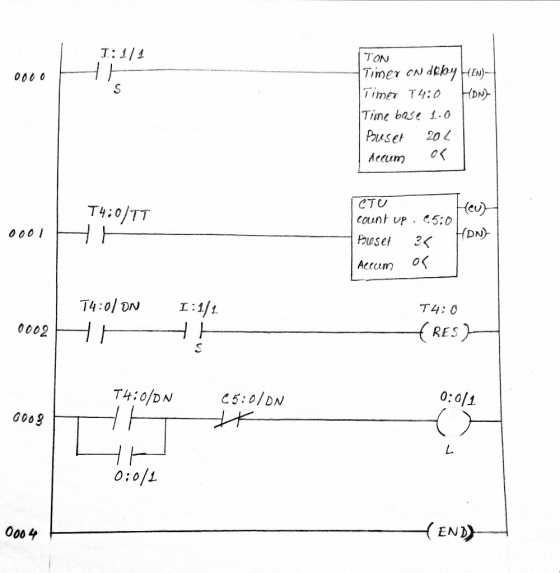

Ladder diagram:

As the input switch,s(assigned to input I:1/1) is turned ON, on timer T4:0 is enabled.
On rung 0001, through the timer timing bit (T4:0/TT) , up counter C5:0 starts counting the cycles of 20s time.
On rung 0002, after 20 s T4:0/DN bit becomes high Timer T4:0 resets when the input switch,S is high.
On rung 0003, after 20 s of input switch is turned on through the closed NO contact of T4:0/DN, Light,L (assigned ton output O:0/1) turns ON and latch on through holding contact O:0/1 and turns OFF when C5:0/DN becomes high (i.e after 3rd time of counting of 20s cycle)
