5. Air at a dbt of 30C and a relative humidity of 30% is conveyed through...
5. Air at a dbt of 30C and a relative humidity of 30%
is conveyed through a heated dryer where it is heated to a dbt of
80C. Then it is conveyed through a bed of granular pet food to dry
it. The air exits the dryer at a dbt of 60C. The exit air is again
heated to 80C and conveyed through another dryer containing
another
batch of pet food. The exit air from the second dryer leaves at
saturation. Clearly show the paths of air, starting from the
ambient air to the saturated air exiting the second dryer on a copy
of a psychrometric chart. Determine the amount of water removed in
the first and second dryer per kg of dry air.

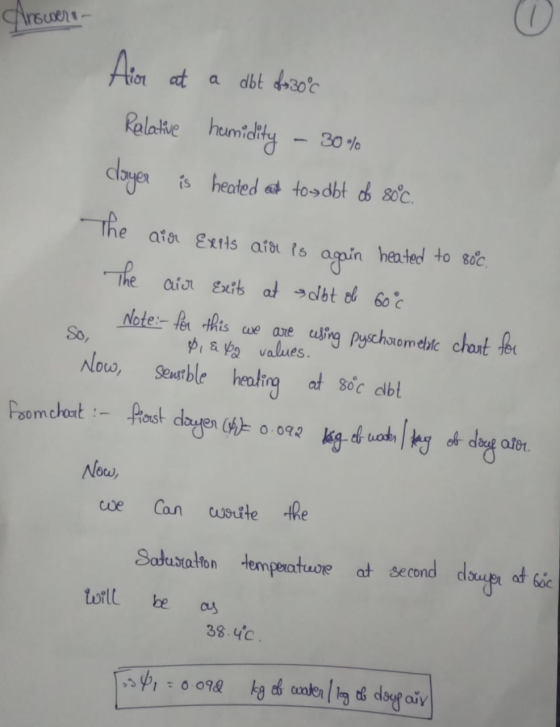

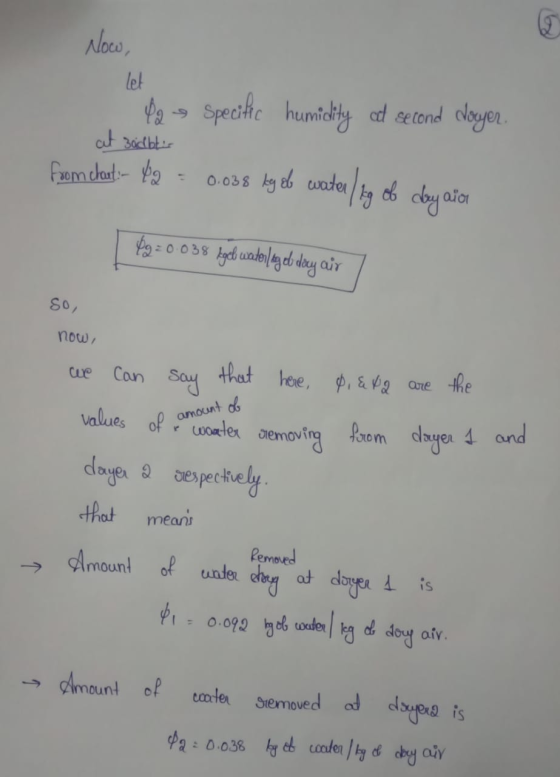

Homework Answers
Add Answer to:
5. Air at a dbt of 30C and a relative humidity of 30%
is conveyed through...
