In an RC series circuit consisting of a 20.0-Ωresistor, a 300-μF capacitor, and an AC source,...
In an RC series circuit consisting of a 20.0-Ωresistor, a 300-μF capacitor, and an AC source, the source angular frequency is 150 s−1 .

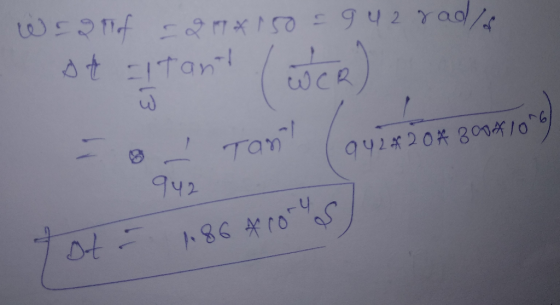

If the current has its maximum value at t = 0, at what later instant is the source emf at its maximum value?
Homework Answers
Add Answer to:
In an RC series circuit consisting of a 20.0-Ωresistor, a 300-μF
capacitor, and an AC source,...
An LRC circuit consists of a 15.0 μF capacitor, a resistor, and an inductor connected in...
An LRC circuit consists of a 15.0 μF capacitor, a resistor, and an inductor connected in series across an AC power source of variable frequency having a voltage amplitude of 20.0 V. You observe that when the power source frequency is adjusted to 44.5 Hz, the rms current through the circuit has its maximum value of 65.0 mA. What will be the rms current if you change the frequency of the power source to 60.0 Hz? {? A}
A circuit has an ac voltage source and a resistor and capacitor connected in series. There is no inductor.
A circuit has an ac voltage source and a resistor and capacitor connected in series. There is no inductor. The ac voltage source has voltage amplitude 0.900 kV and angular frequency w = 20.0 rad/s. The voltage amplitude across the capacitor is 0.500 kV. The resistor has resistance R= 0.300 kΩ. Part A What is the voltage amplitude across the resistor? Part B What is the capacitance C of the capacitor? Part C Does the source voltage lag or lead the current? Part D What is the average...
An AC source operating at 60-Hz with a maximum voltage of 170 V is connected in series with a resistor (R = 1.2 k Q) and capacitor (C = 2.5 μF).
An AC source operating at 60-Hz with a maximum voltage of 170 V is connected in series with a resistor (R = 1.2 k Q) and capacitor (C = 2.5 μF). a) What is the maximum value of the current in the circuit? b) What is the maximum values of the potential difference across the resistor and capacitor? c) When the current is zero, what are the magnitudes of the potential difference across the resistor, capacitor and AC source? How much charge is...
A) Consider a resistor series RC circuit with a 7.9 μF, capacitor, a 4 × 106...
A) Consider a resistor series RC circuit with a 7.9 μF, capacitor, a 4 × 106 Ω resistor and 23 V emf. Find the time constant of the circuit. Answer in units of s. B) Find the maximum charge on the capacitor after a switch in the circuit is closed. Answer in units of C.
An RLC series circuit consists of a 450-?resistor, a 3.00-mF capacitor, and a 1.00-Hinductor. The circuit...
An RLC series circuit consists of a 450-?resistor, a 3.00-mF capacitor, and a 1.00-Hinductor. The circuit is driven by a power source that oscillates at 20.0 Hz and has an Erms value of 80.0V . The power source is switched on at t = 0 and at that instant the emf is at its maximum value. What is the power supplied at t=.0200s, .0375s, and .0500s?
A series circuit consists of an AC source of variable frequency, a 115 Ohm resistor, a...
A series circuit consists of an AC source of variable frequency, a 115Ω resistor, a 1.25 μF capacitor, and a 4.50 mH inductor. Find the impedance of this circuit when the angular frequency of the ac source is adjusted to (a) the resonance angular frequency; (b) twice the resonance angular frequency. If the power source provides a peak voltage of 60 V. what ore (c) the peak current in the circuit and (d) the average power dissipated in the circuit...
PHYS 212 RECITATION EXERCISE 1: USING PHASORS FOR A DRIVEN RC CIRCUIT We will consider a...
PHYS 212 RECITATION EXERCISE 1: USING PHASORS FOR A DRIVEN RC CIRCUIT We will consider a circuit consisting of a time varying emf in series with a capacitor and resistor. The capacitance and resistance are fixed but we can tune the frequency of the source. In an AC circuit, each element has a "reactance" which can be used to relate the peak current through the element to the peak voltage across the element 1. What does the angular frequency of...
5.A series RC circuit contains a 0.01 microfarad capacitor and a 2,000 ohm resistor, and has...
5.A series RC circuit contains a 0.01 microfarad capacitor and a 2,000 ohm resistor, and has a frequency of 500 HZ. What is the impedance of the circuit? A. 90,285 ohms B. 52,285 ohms C. 42,164 ohms D. 31,910 ohms 1. A series RC circuit has a source voltage of 24 VAC and an impedance of 252 ohms. What is the circuit current? A. 95 A B. 0.095 A C. 9.5 A D. 0.95 A 2. A 0.015 micro arad...
1. Compute the impedance of a series R-L-C circuit at angular frequencies of ω1= 1000 rad/s...
1. Compute the impedance of a series R-L-C circuit at angular frequencies of ω1= 1000 rad/s , ω2= 710 rad/s and ω3= 455 rad/s . Take R = 170 Ω , L = 0.935 H and C = 2.40 μF . What is the phase angle of the source voltage with respect to the current when ω = 1000 rad/s? 2. A series R–L–C circuit of R = 150 Ω , L = 0.915 H and C = 2.05 μF...
EXERCISE 2: USING PHASORS FOR A DRIVEN RC CIRCUIT 10. On the middle set of axes,...
EXERCISE 2: USING PHASORS FOR A DRIVEN RC CIRCUIT 10. On the middle set of axes, draw phasors for k and ε using the provided ve phasor as a basis for a circuit in which R- 2Xc. Start by deciding what the peak voltage across the capacitor must be compared to the peak voltage across the resistor and then draw the appropriate Vc phasor We will consider a circuit consisting of a time varying emf in series with a capacitor...
PHYS 212 RECITATION EXERCISE 1: USING PHASORS FOR A DRIVEN RC CIRCUIT We will consider a circuit consisting of a time varying emf in series with a capacitor and resistor. The capacitance and resistance are fixed but we can tune the frequency of the source. In an AC circuit, each element has a "reactance" which can be used to relate the peak current through the element to the peak voltage across the element 1. What does the angular frequency of...
EXERCISE 2: USING PHASORS FOR A DRIVEN RC CIRCUIT 10. On the middle set of axes, draw phasors for k and ε using the provided ve phasor as a basis for a circuit in which R- 2Xc. Start by deciding what the peak voltage across the capacitor must be compared to the peak voltage across the resistor and then draw the appropriate Vc phasor We will consider a circuit consisting of a time varying emf in series with a capacitor...
