Two positive point charges q and 4q are at x = 0 and x = L,...

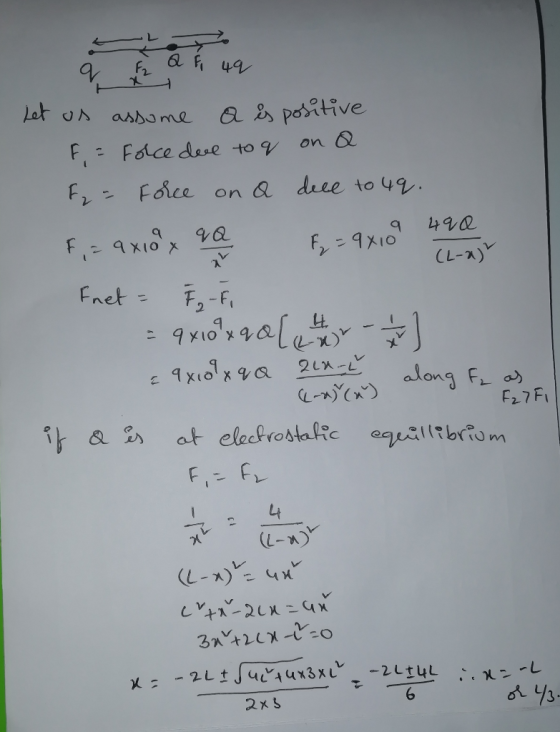

Two positive point charges q and 4q are at x = 0 and x = L, respectively, and free to move. A third charge Q is placed at some point on the x-axis between x = 0 and x = L
a) Draw all possible electrostatic forces acting on the charge
Q. Clearly, indicate the directions.
b) Find the net force acting on the charge Q.
(Include the direction)
c) Suppose the charge Q is in electrostatic equilibrium; find its position in terms of L.
Homework Answers
4. Two positive charges q and 4q are placed at x -0 and x L. A...
4. Two positive charges q and 4q are placed at x -0 and x L. A third charge is placed so that the entire three-charge system is at static equilibrium. What are the magnitude, sign, and x-coordinate of the third charge?
4. Two positive charges q and 4q are placed at x -0 andx L. A third...
4. Two positive charges q and 4q are placed at x -0 andx L. A third charge is placed so that the entire three-charge system is at static equilibrium. What are the magnitude, sign, and x-coordinate of the third charge?
Two charged particles, with charges q1=q and q2=4q, are located on the x axis separated by...
Two charged particles, with charges q1=q and q2=4q, are located on the x axis separated by a distance of 2.00cm . A third charged particle, with charge q3=q, is placed on the x axis such that the magnitude of the force that charge 1 exerts on charge 3 is equal to the force that charge 2 exerts on charge 3. Find the position of charge 3 when q = 2.00 nC . Assuming charge 1 is located at the origin...
Three identical point charges (q = 1.6 times 10^-19 C) are placed at each of three...
Three identical point charges (q = 1.6 times 10^-19 C) are placed at each of three corners of a square of side L and cannot move. A) Draw the free body diagram for a charge of -3q placed at the center of the square labeling all the forces acting on the charge -3q B) Calculate the magnitude and direction of the force on the -3q charge Three identical point charges (q = 1.6 times 10^-19 C) are placed at each...
Two positive point charges that are equal in magnitude are fixed in place, one at x...
Two positive point charges that are equal in magnitude are fixed in place, one at x 0.00 m and the other at x 1.00 m, on the x axis. A third positive point charge is placed at an equilibrium position. (a) Where is this equilibrium position? This answer has not been graded yet (b) Is the equilibrium position stable if the third particle is constrained to move parallel with the x axis? O Yes O No Explain. This answer has...
Two positive point charges that are equal in magnitude are fixed in place, one at x...
Two positive point charges that are equal in magnitude are fixed in place, one at x = 0.00 m and the other at x = 1.00 m, on the x axis. A third positive point charge is placed at an equilibrium position. (a) Where is this equilibrium position? This answer has not been graded yet (b) Is the equilibrium position stable if the third particle is constrained to move parallel with the x axis? O Yes No Explain This answer...
+49 +9 1) Two small beads having positive charges 4q and q are fixed at the...
+49 +9 1) Two small beads having positive charges 4q and q are fixed at the opposite ends of a horizontal insulating rod extending from the origin to the point x =d. As shown in figure, a third small negatively charged bead is free to slide on the rod. At what position is the third bead in equilibrium? d
Problem 2 -Superposition Principle for electrie forces between point charges Two charges are positioned along the...
Problem 2 -Superposition Principle for electrie forces between point charges Two charges are positioned along the horizontal -axis. 6.0 uC is positioned in the origi 02 =-60 pC is positioned at x = 2.0 m. A third charge 03-3.0 pC is placed halfway betwe 01 and 02 (at the point x = 1.0 m). Compute: a) The magnitude of the net electric force acting on Q b) The direction of the net electric force acting on Q3. e) The electric...
(ex) A point charge q,3.0nC is located on the x-axis at (-0.40 m, 0) and another...
(ex) A point charge q,3.0nC is located on the x-axis at (-0.40 m, 0) and another point charge 42-+3.0nC is located at (+0.40 m, 0). (a) What are the magnitude and direction of the net electric field (caused by these two charges) on the y-axis at (0, +0.30 m)? (b) A third point charge q, =-60 nC is placed on the y-axis at (0, +0.30 m). What are the magnitude and direction of the net electric force (caused by the...
1. Three point charges, qi, q2, and qa carry same amount of charge, +Q each, are...
1. Three point charges, qi, q2, and qa carry same amount of charge, +Q each, are located on x-axis in a vacuum. Their coordinate are (1,1), (3,1), and Find the resultant force acting on each of the point charges in term of Q. 2. Four point charges are placed at the corner of a square plate. q1, q2, and q3 are positively charged particles and e is an electron. Find the resultant force acting on q3 if the area of...
4. Two positive charges q and 4q are placed at x -0 and x L. A third charge is placed so that the entire three-charge system is at static equilibrium. What are the magnitude, sign, and x-coordinate of the third charge?
4. Two positive charges q and 4q are placed at x -0 andx L. A third charge is placed so that the entire three-charge system is at static equilibrium. What are the magnitude, sign, and x-coordinate of the third charge?
Three identical point charges (q = 1.6 times 10^-19 C) are placed at each of three corners of a square of side L and cannot move. A) Draw the free body diagram for a charge of -3q placed at the center of the square labeling all the forces acting on the charge -3q B) Calculate the magnitude and direction of the force on the -3q charge Three identical point charges (q = 1.6 times 10^-19 C) are placed at each...
Two positive point charges that are equal in magnitude are fixed in place, one at x 0.00 m and the other at x 1.00 m, on the x axis. A third positive point charge is placed at an equilibrium position. (a) Where is this equilibrium position? This answer has not been graded yet (b) Is the equilibrium position stable if the third particle is constrained to move parallel with the x axis? O Yes O No Explain. This answer has...
Two positive point charges that are equal in magnitude are fixed in place, one at x = 0.00 m and the other at x = 1.00 m, on the x axis. A third positive point charge is placed at an equilibrium position. (a) Where is this equilibrium position? This answer has not been graded yet (b) Is the equilibrium position stable if the third particle is constrained to move parallel with the x axis? O Yes No Explain This answer...
+49 +9 1) Two small beads having positive charges 4q and q are fixed at the opposite ends of a horizontal insulating rod extending from the origin to the point x =d. As shown in figure, a third small negatively charged bead is free to slide on the rod. At what position is the third bead in equilibrium? d
Problem 2 -Superposition Principle for electrie forces between point charges Two charges are positioned along the horizontal -axis. 6.0 uC is positioned in the origi 02 =-60 pC is positioned at x = 2.0 m. A third charge 03-3.0 pC is placed halfway betwe 01 and 02 (at the point x = 1.0 m). Compute: a) The magnitude of the net electric force acting on Q b) The direction of the net electric force acting on Q3. e) The electric...
(ex) A point charge q,3.0nC is located on the x-axis at (-0.40 m, 0) and another point charge 42-+3.0nC is located at (+0.40 m, 0). (a) What are the magnitude and direction of the net electric field (caused by these two charges) on the y-axis at (0, +0.30 m)? (b) A third point charge q, =-60 nC is placed on the y-axis at (0, +0.30 m). What are the magnitude and direction of the net electric force (caused by the...
1. Three point charges, qi, q2, and qa carry same amount of charge, +Q each, are located on x-axis in a vacuum. Their coordinate are (1,1), (3,1), and Find the resultant force acting on each of the point charges in term of Q. 2. Four point charges are placed at the corner of a square plate. q1, q2, and q3 are positively charged particles and e is an electron. Find the resultant force acting on q3 if the area of...
