Q1. Summarize the formulas which describe the relationships among applied voltage, armature current, rotor speed, and...

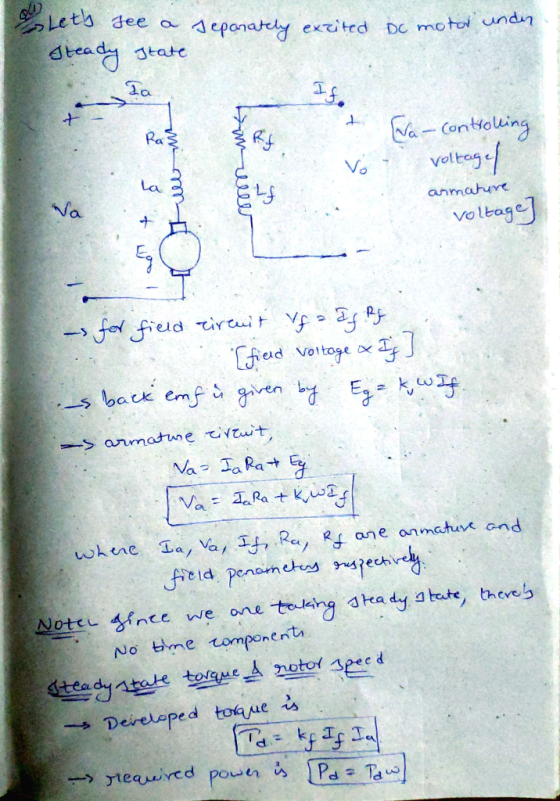

Q1. Summarize the formulas which describe the relationships among applied voltage, armature current, rotor speed, and electromagnetic torque of a separately-excited DC motor.

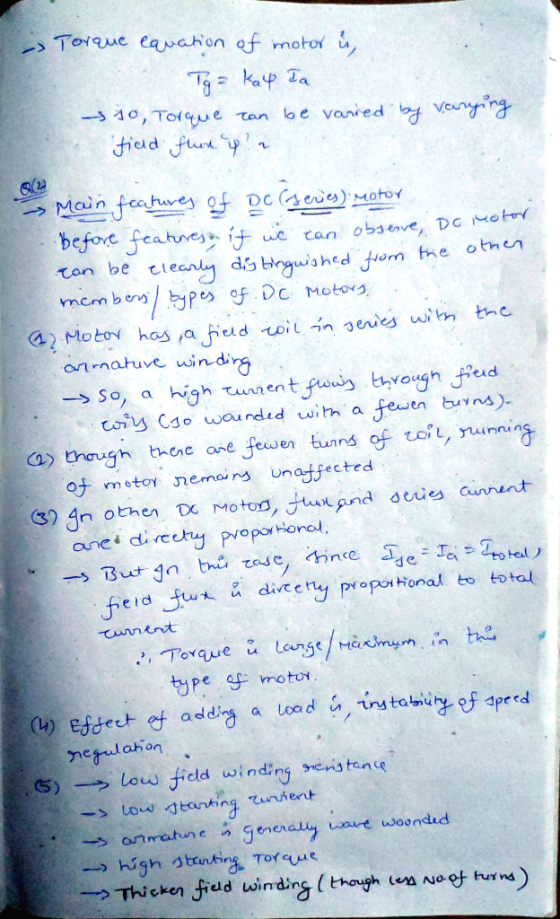

Q2. Explain the main features of a series-wound DC motor.

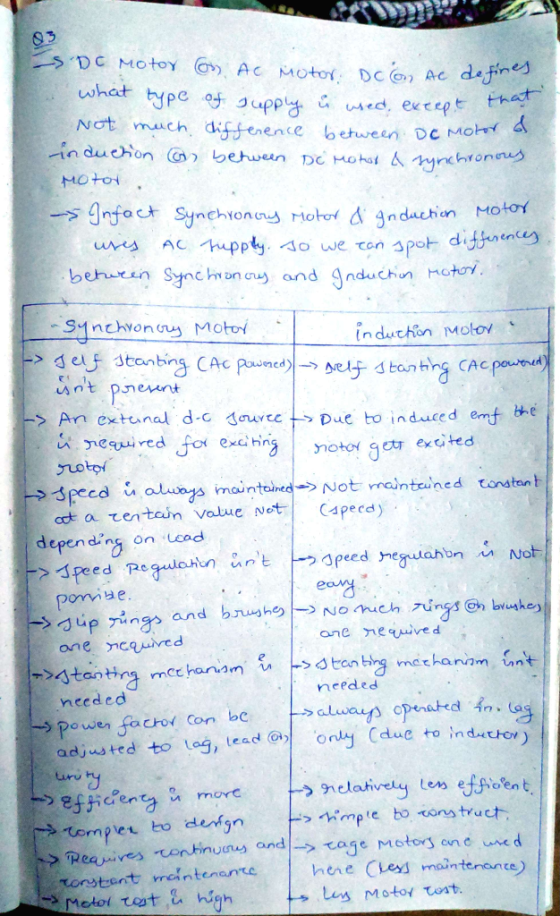

Q3. Explain the main differences among synchronous motors, induction motors and DC motors.
engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

if you want also the characteristics of series wound DC motor do put a comment.

Hope this helps.

Do give a like if you like the answer. It'll encourage me to write more quality answers.
