7.7 a. What is the effect of shifting an unsigned number in a register 2 bits...

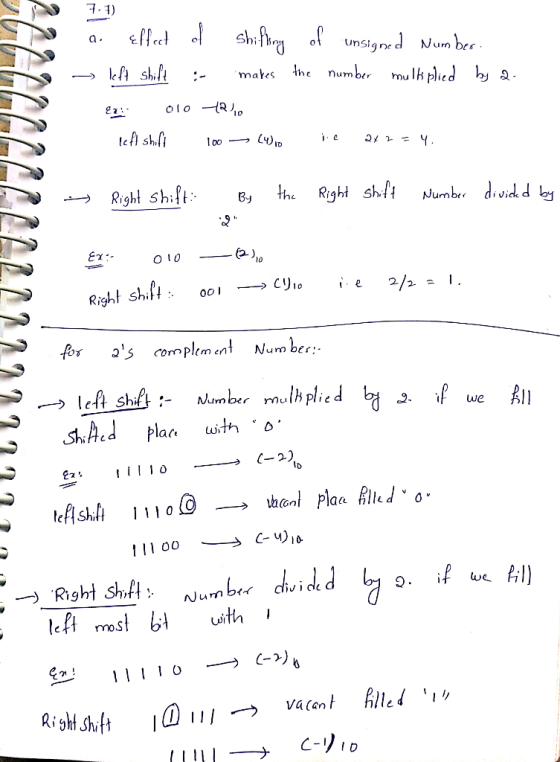

7.7 a. What is the effect of shifting an unsigned number in a register 2 bits to the left? 1 bit to the right? Assume that 0s are inserted to replace bit locations at the end of the register that have become empty due to the shift.
b. Suppose the number is signed, that is, stored using 2’s complement. Now, what is the effect of shifting the number?
c. Suppose that the shift excludes the sign bit so that the sign bit always remains the
same. Furthermore, suppose that during a right shift, the sign bit is always used
as the insertion bit at the left end of the number (instead of 0). Now, what is the
effect of these shifts?
Homework Answers
Add Answer to:
7.7 a. What is the effect of shifting an unsigned number in a
register 2 bits...
4) This exercise will first present the modified algorithm for computing the product of two numbers...
4) This exercise will first present the modified algorithm for computing the product of two numbers represented in twos complement with an illustrated example and then ask you to repeat for a different number pair The hardware and the flowchart for signed multiplication in twos complement representation of binary numbers will be slightly modified as follows. Use the version of the unsigned multiplication hardware which employs one double-sized register to hold the partial product and the multiplier a. When shifting...
2. Serial shift registers Draw missing connections to implement various shift registers 1. Shift right: All...
2. Serial shift registers Draw missing connections to implement various shift registers 1. Shift right: All bits of the register move right by one position, and a new bit value from a serial input is stored in the most significant bit (leftmost flip-flop below). Serial input -02 az 02 a Do ao Serial indino 2. Shift left: All bits of the register move left by one position, and a new bit value from a serial input is stored in the...
(3 pts) Consider an unsigned fixed point decimal (Base10) representation with 8 digits, 5 to the...
(3 pts) Consider an unsigned fixed point decimal (Base10) representation with 8 digits, 5 to the left of the decimal point and 3 to the right. a. What is the range of the expressible numbers? b. What is the precision? c. What is the error? ______________________________________________________________________________ (3 pts) Convert this unsigned base 2 number, 1001 10112, to each base given below (Note: the space in the binary string is purely for visual convenience) Show your work. Using...
