B-Tree is a self-balancing search tree. The B-tree is a generalization of a binary search tree...
B-Tree is a self-balancing search tree. The B-tree is a generalization of a binary search tree in that a node can have more than two children. For example, in a 2-3 B-tree, each internal node may have 2 or 3 child nodes. Perform insert and delete simulation for each given number below by using the concept of 2-3 B-Tree!

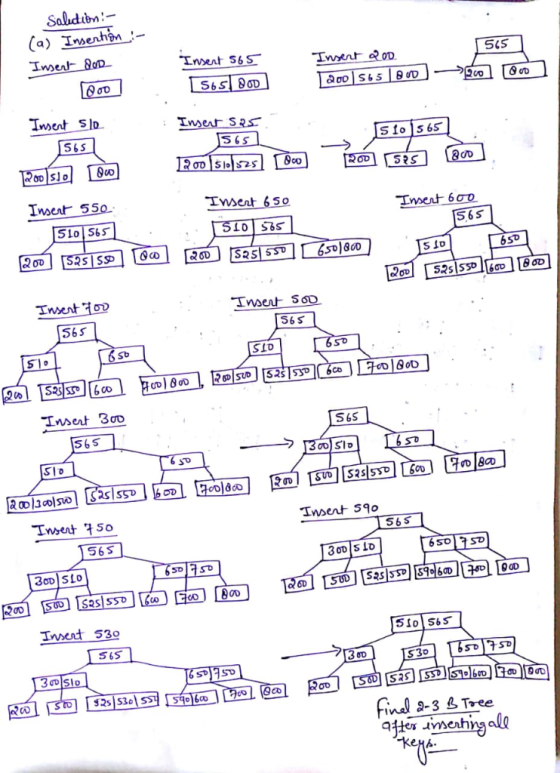

a. INSERT: +800, +565, +200, +580, +510, +525, +550, +650, +600, +700, +500, +300, +750, +590, +530

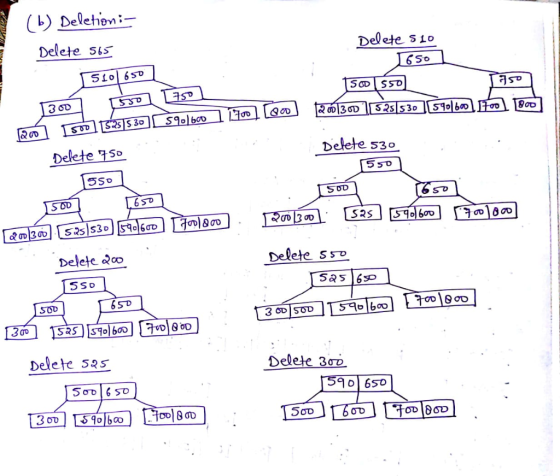

b. DELETE: -565, -510, -750, -530, -200, -550, -525, -300
*you are obligated to use predecessor (left subtree's right-most child) for the replacement process
Homework Answers
